StarTech.com 25mMonitor VGA Cable

StarTech.com 25mMonitor VGA Cable

£65.26 GBP
Sale price: £65.26 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • Durably constructed cable
  • Molded PVC strain relief
Out of stock
EAN: 65030843775
SKU: V239744
Vendor: StarTech
Order within xx hours for delivery on
Quantity
  • Connector A: VGA (15 pin, High Density D-Sub)
  • Connector B: VGA (15 pin, High Density D-Sub)
  • Operating Temperature: 0 to 60 °C
  • Storage Temperature: -20 to 80 °C
  • Humidity: 0 - 80 %RH
  • Number of Conductors: 14
  • Connector Plating: Nickel
  • Cable Jacket Material: PVC - Polyvinyl Chloride
  • 1 - 25m Coax High Resolution Monitor VGA Cable - HD15 M/M

Datasheet

Overview

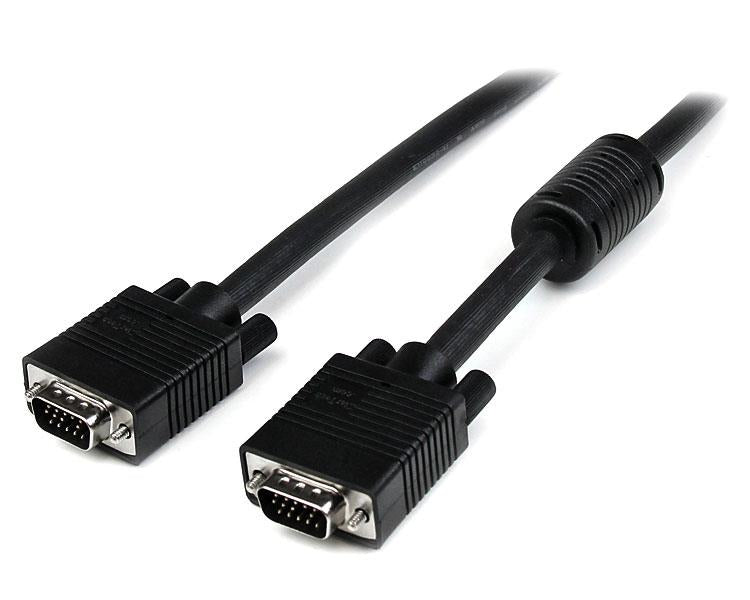

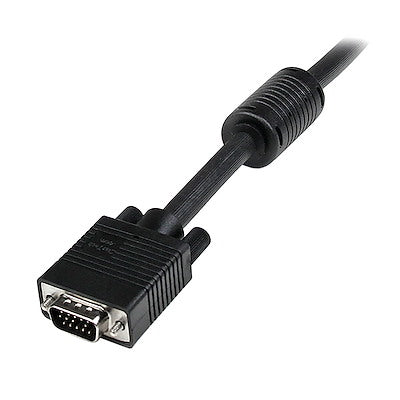

The MXTMMHQ25M High Resolution VGA Cable (25-meter) is designed to provide the highest video quality possible through VGA, ideally suited for high resolution applications of 1920x1200 and above. This durably constructed coaxial VGA video cable (HD15 to HD15) eliminates the picture "ghosting" and fuzzy images that are inherent to non-coaxial VGA cables, while delivering superior EMI interference protection by using ferrite cores near the connector ends.

Technical Features
  • Cable Type: Triple coaxial + twisted-pair wire for crystal clear display
  • Durability: Durably constructed cable, with high quality HD15 connectors
  • Impedance: Matched at 75 Ohms for full brightness and vibrant picture color from your VGA monitor

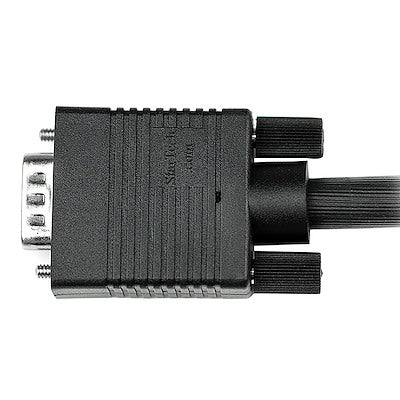

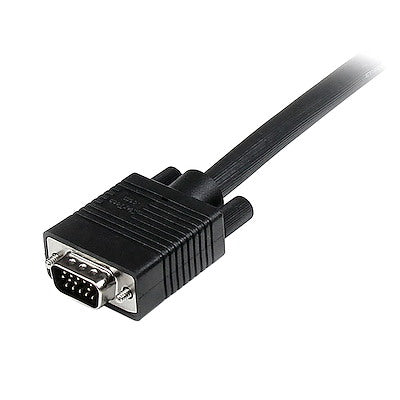

  • Connectors: High quality VGA connectors with molded PVC strain relief
