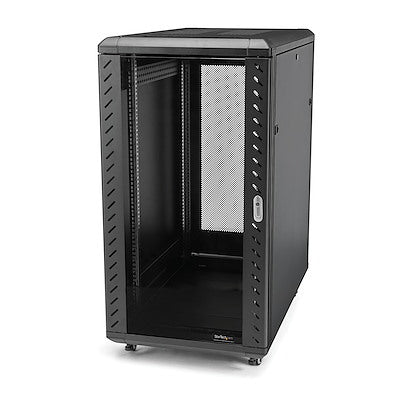

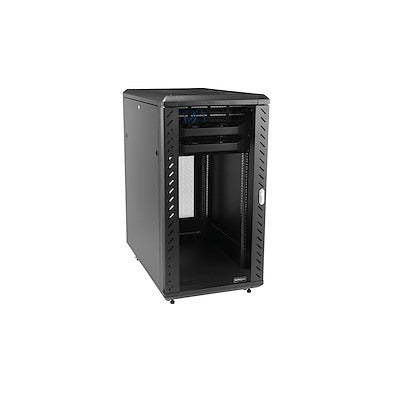

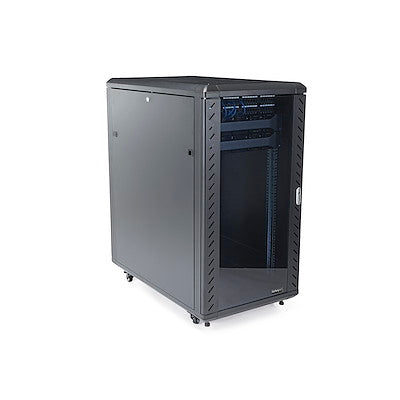

StarTech 22U 36in Rack Cabinet

StarTech 22U 36in Rack Cabinet

£676.57 GBP
Sale price: £676.57 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • Leveling Feet
  • U-Markings
In stock, 5 units
EAN: 65030820752
SKU: V211025
Vendor: StarTech
Order within xx hours for delivery on
Quantity

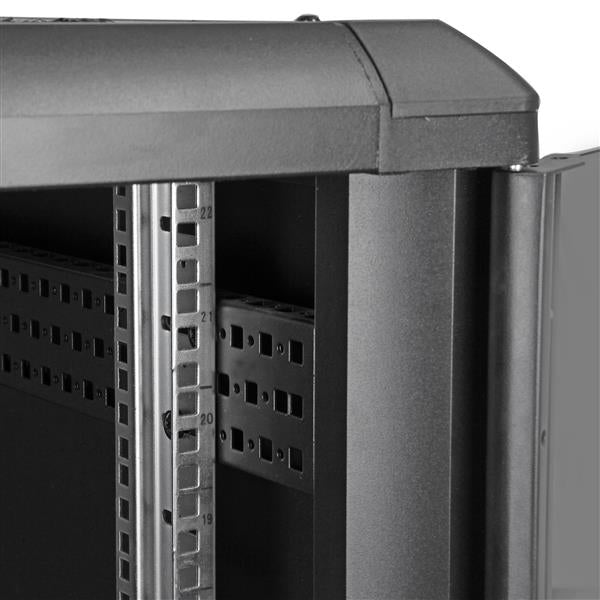

  • Mounting Rail Profile: G-Shape
  • Mounting Hole Types: Square (For Cage Nut)
  • Industry Standards: EIA/ECA-310-E
  • Rack Type: 4-Post
  • U Height: 22U
  • Frame Type: Enclosed Cabinet
  • Package Height: 30.0 cm [11.8 in]
  • Package Length: 1.1 m [3.5 ft]
  • Package Width: 1.2 m [3.9 ft]
  • Shipping Weight: 75.0 kg [165.4 lb]
  • Flat Pack: Yes
  • 1 - Top and Bottom Panels
  • 1 - Left and Right Panel and Frame
  • 4 - Joints
  • 8 - Corner Caps
  • 4 - Casters
  • 3 - Sets of keys
  • 4 - Adjustable Feet
  • 1 - Assembly screw kit (M4,M5,M6,M8)
  • 20 - M6 Screws
  • 20 - M6 Cage Nut
  • 1 - Allen Wrench

Datasheet

Overview

This rack has been engineered with different features that enable you to easily incorporate plenty of equipment. With adjustable mounting rails you can easily change the rail depth to up to 32.7 in. (830 mm). These rails ensure the cabinet is widely compatible with your standard rackmountable equipment. The added depth also provides support for additional cable and power management behind your equipment. The rack features brushed ports on the ceiling and floor panels that enable you to easily run cabling to the inside and outside of the cabinet, for discreet cable management. The floor and ceiling panels can also be removed enabling you to customize your setup, and the rack features grounding lugs that enable you to ground your equipment for added protection.

Technical Features
  • Adjustable Depth: 4-Post 22U 19" server rack with adjustable mounting depth 5.7" to 33.0" (14.4cm to 83.8cm); compatible with servers, switches, data/AV equipment
  • Easy Shipping & Assembly: Flat-packed for safe delivery; includes wheels & leveling feet; height 46.6in (118.3cm)
  • Design & Ventilation: Lockable/removable door & side panels; vented top; 1764lb (800kg) weight capacity; EIA/ECA-310-E compliant
  • Hardware Included: 20 M6 cage nuts/screws, PVC cup washers, front/rear door keys, 2 allen keys, casters & leveling feet
