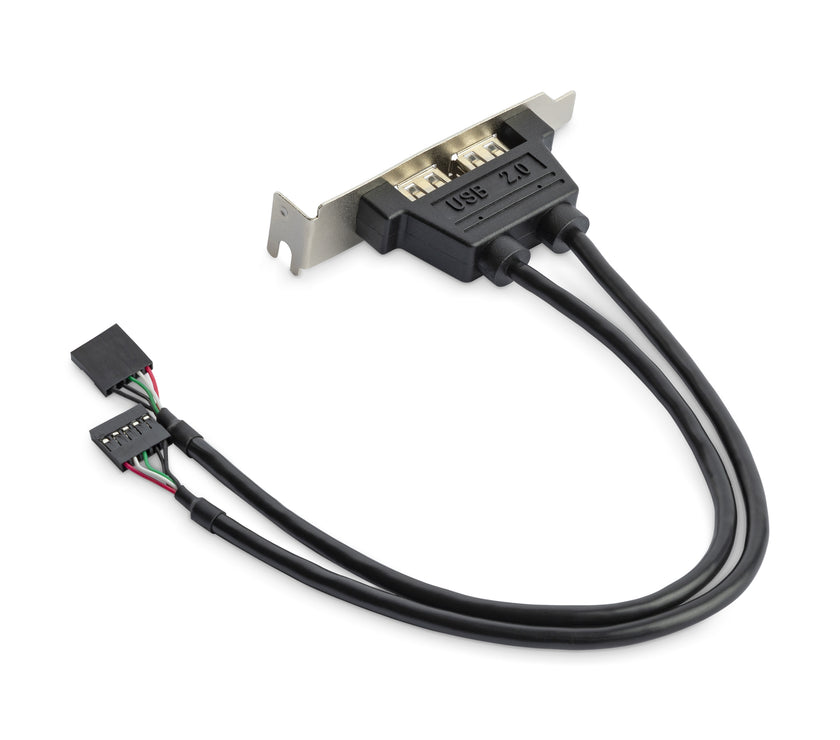

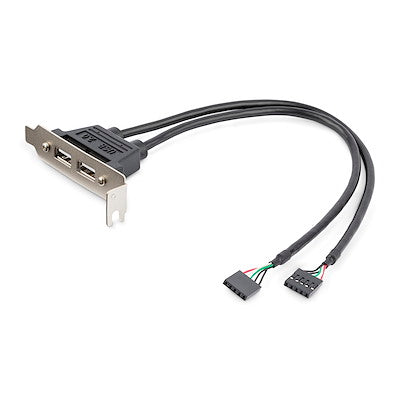

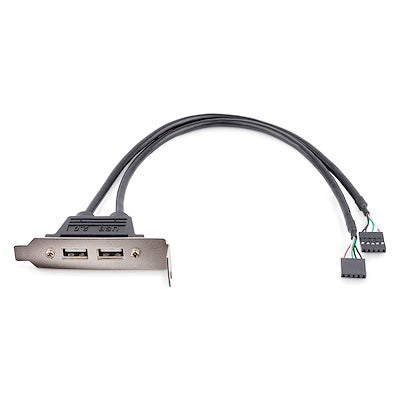

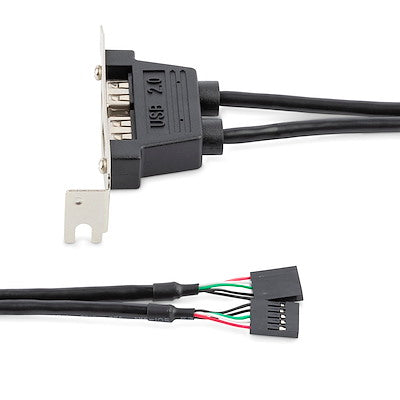

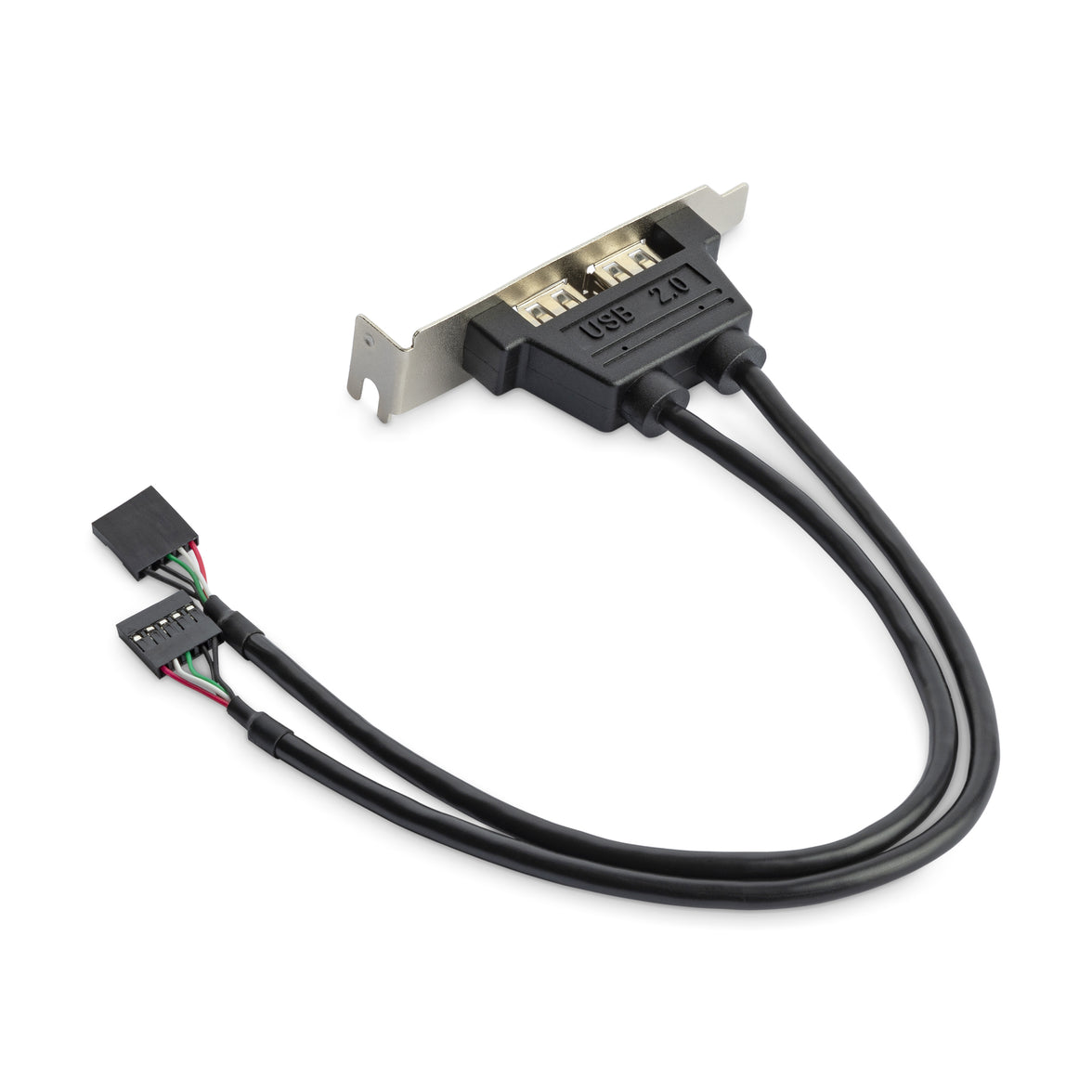

StarTech 2 port USB Slot Adapter

StarTech 2 port USB Slot Adapter

£5.39 GBP
Sale price: £5.39 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • 5 pin motherboard connections
  • 11.25" in cable length
In stock, 21 units
EAN: 65030831772
SKU: V241330
Vendor: StarTech
Order within xx hours for delivery on
Quantity
  • Connector A: 2 - USB 2.0 Type-A (4 pin, 480Mbps)
  • Connector B: 2 - IDC (5 pin, Motherboard Header)
  • Operating Temperature: -20°C to 60°C (-4°F to 140°F)
  • Storage Temperature: -10°C to 30°C (14°F to 86°F)
  • Humidity: 30%-75% RH
  • Package Height: 2.1 cm [0.8 in]
  • 1 - 2 Port USB A Female Low Profile Slot Plate Adapter

Datasheet

Overview

The USBPLATELP 2 Port Low Profile USB Bracket converts the USB pins on a USB 2.0 motherboard header to 2 standard USB A ports. An ideal solution for small form factor computer cases, the slot plate can be mounted on the rear panel of your low profile or thin client computer case - adding two USB female ports for simple connection to USB peripheral devices.

Technical Features
  • USB Ports: 2x USB 'A' female ports
  • Connectors: 2x IDC-5 female connectors
  • Motherboard Support: Supports 4 or 5 pin motherboard connections
  • Data Transfer Speed: Supports high-speed USB data transfer rates of up to 480 Mbps
  • Cable Length: Offers 11.25" in cable length
