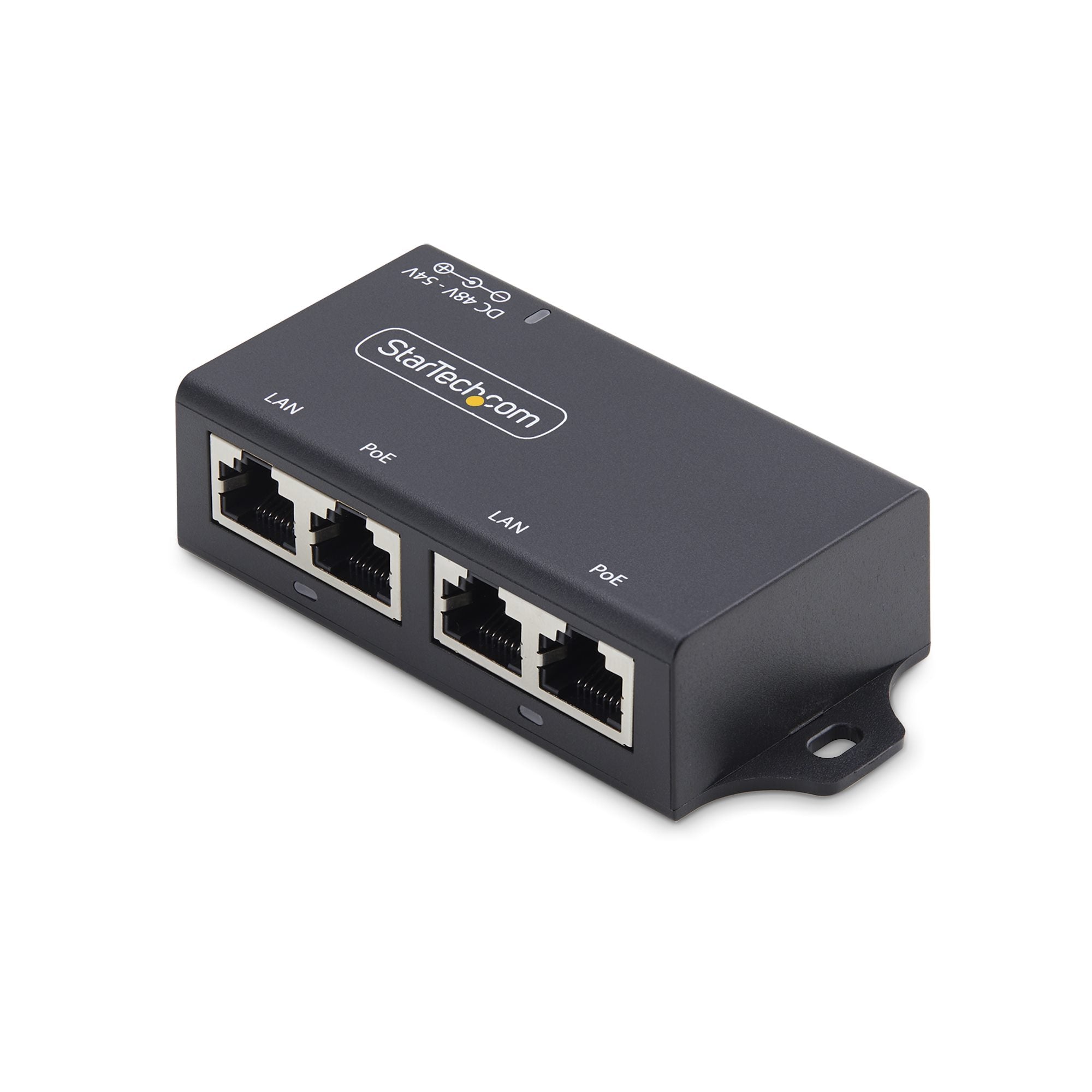

StarTech.com 2-Port PoE+ Injector

This 2-port multi-speed PoE+ injector serves as Power Sourcing Equipment (PSE) and enables Ethernet speeds of 10/100/1000Mbps. This mid-span inline injector can transmit network data and power up to 328ft (100m) for two Powered Devices (PD). Dual-port PoE injector supports the IEEE 802.3af and IEEE 802.3at PSE standards and delivers up to 30W output (52V/0.580A). Connect a remote PoE device to a network at a location where there is no power source, but an Ethernet cable already exists. This includes access points, IP cameras, VoIP phone systems, IPTV and access controls. The flexible design allows for either desktop or surface-mount use. All Ethernet cables can be routed from one side of the unit for efficient and organized cable management. The compact design (3.2x1x1.8in(82x25x46mm) ensures straightforward integration into existing network infrastructure, saving space and time during installation.

• Two-Port PoE+ Injector: Provides up to 30W PoE/PoE+ power and 1Gbps data to two powered devices; includes Level-4 ESD protection (15kV air, 8kV contact) and LAN transformer to ensure safety and reduce EMI.
• Network Compatibility: Supports auto-negotiation between 10/100/1000Mbps; delivers data and power up to 328ft (100m) using Cat5/5e/6/6a cabling; offers surge protection up to 2kV.
• Hassle-Free Installation: Wall-mountable design with front-facing mounting ears and screw holes molded into the housing; plug-and-play setup without additional software.
• Applications: Ideal for powering and connecting high-demand PoE devices such as IP cameras and enterprise-grade Wi-Fi 6/6E/7 access points; compatible with 1000Base-T/100Base-TX/10Base-T Ethernet.
• Technical Specifications: 4x RJ45 ports (2x data input, 2x data output + power); 30W max output, 52V 0.580A per port; compliant with IEEE 802.3af and IEEE 802.3at; supports 10/100/1000Mbps, 1Gbps, and 9K jumbo frames; dimensions: 3.2 x 1 x 1.8 in (82 x 25 x 46 mm).
