StarTech 1m LC Aqua Fiber Cable

StarTech 1m LC Aqua Fiber Cable

£13.38 GBP
Sale price: £13.38 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • Data communication
  • 10 Gigabit High Speed Network
In stock, 10 units
EAN: 65030827065
SKU: V209649
Vendor: StarTech
Order within xx hours for delivery on
Quantity
  • Maximum Data Transfer Rate: 100Gbps
  • Cable Rating: 1Gbps / 10Gbps / 40Gbps / 100Gbps
  • Type: Multi Mode
  • Wavelength: 850nm
  • Weight of Product: 15.0 g (0.5 oz)
  • Product Width: 1.5 cm (0.6 in)
  • Product Height: 1.1 cm (0.4 in)
  • Color: Aqua
  • Cable Length: 1 m (3.3 ft)
  • Diameter: 3 mm
  • Product Length: 1.0 m (3.3 ft)

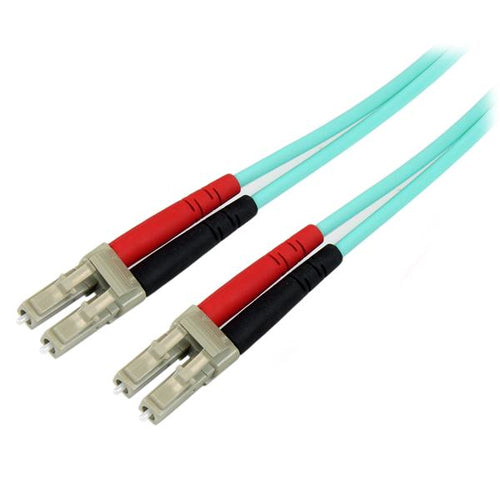

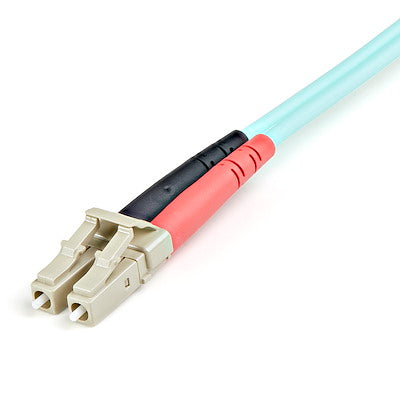

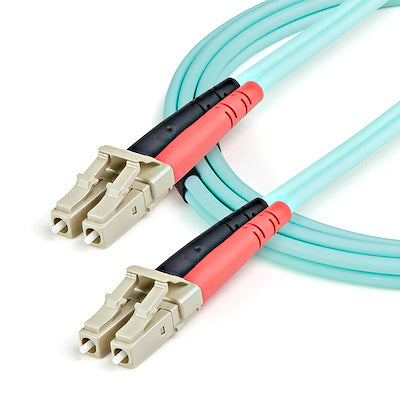

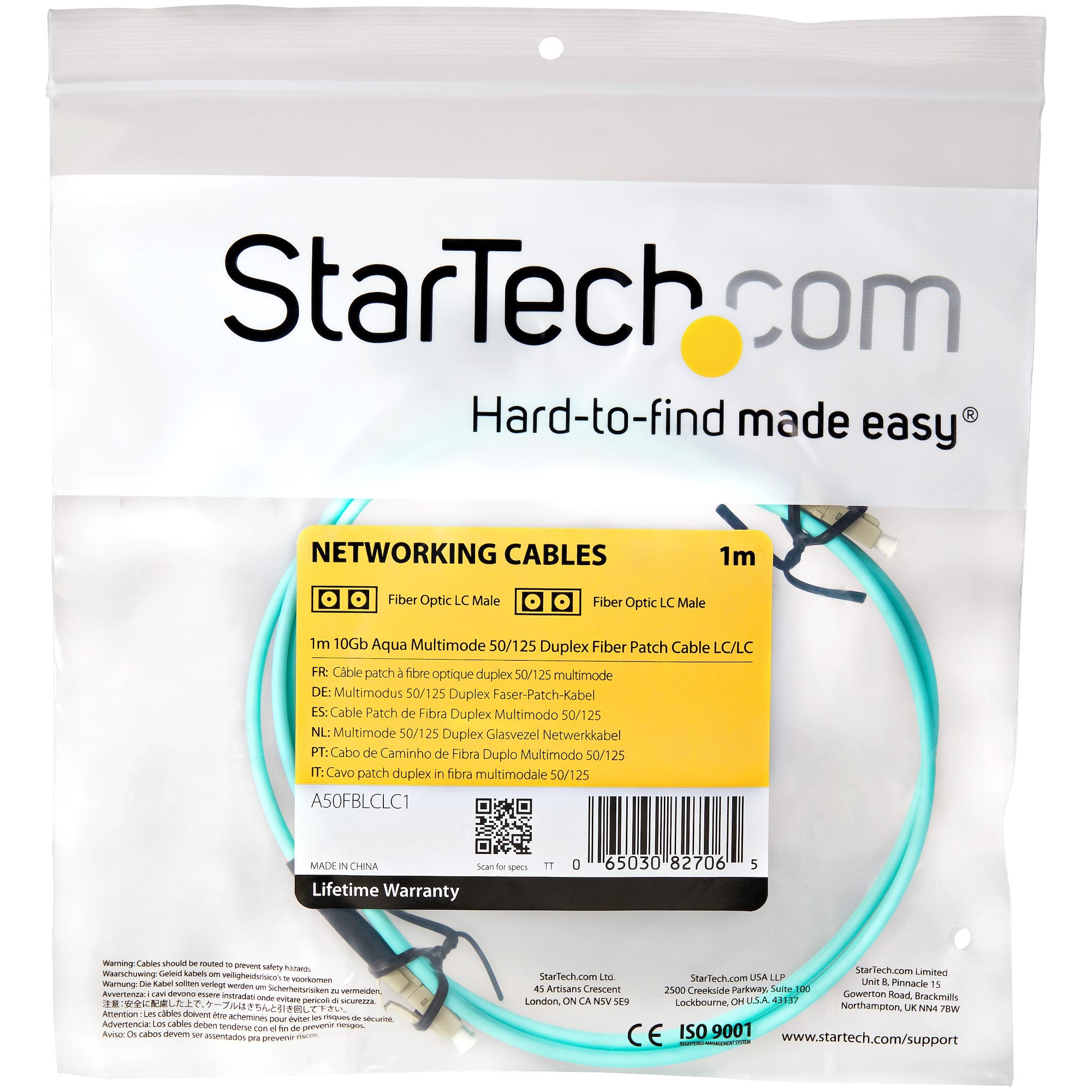

  • 1 - 1m 10Gb Aqua Multimode 50/125 Duplex LSZH Fiber Patch Cable LC - LC

Datasheet

Overview

The A50FBLCLC1 1m 850nm Laser-Optimized Multimode Fiber (LOMMF) Aqua Cord features 50/125 micron fiber for high-speed, high bandwidth data transmissions over 10 Gigabit Ethernet and Fiber Channel networks - the perfect solution for fiber cable runs between multiple backbone switches, hubs and routers as well as higher end networking equipment. This LC-LC patch cable is housed in a LSZH (Low-Smoke, Zero-Halogen) flame retardant jacket, to ensure minimal smoke, toxicity and corrosion when exposed to high sources of heat, in the event of a fire – an ideal solution for use in industrial settings, central offices and schools, as well as residential settings where building codes are a consideration.

Technical Features
  • OM3 Fiber Cable: Laser-Optimized Multimode Fiber delivers up to 100 Gbps Ethernet; full-duplex zip-cord with color-coded TX/RX connectors for servers and SANs
  • Quality Construction: 50/125µm fiber core/cladding immune to EMI; protective Aramid fiber sheath for tensile strength and crush resistance; LC/LC connectors with UPC polished ceramic ferrules (insertion loss < 0.3dB)
  • Ratings & Reliability: Individually tested for signal integrity; LSZH jacket with low-smoke emission; TIA/EIA compliant fiber core; attenuation under 2.3dB/km meets or exceeds industry standards
  • Wide Compatibility: Supports 1/10/40/100 Gbps networks; backward compatible with OM3; ideal for SANs, data servers, fiber switches, SFP+, QSFP+, and QSFP28 transceivers
  • Specs: 1m (3.3ft); Aqua (OM3); LC/LC UPC; 850nm/1300nm LED/VCSEL; Modal bandwidth ≥2000MHz·km at 850nm; Cable OD 2.9mm; Bend radius: static 1.2in (3cm), dynamic 2.4in (6cm); backed for life
