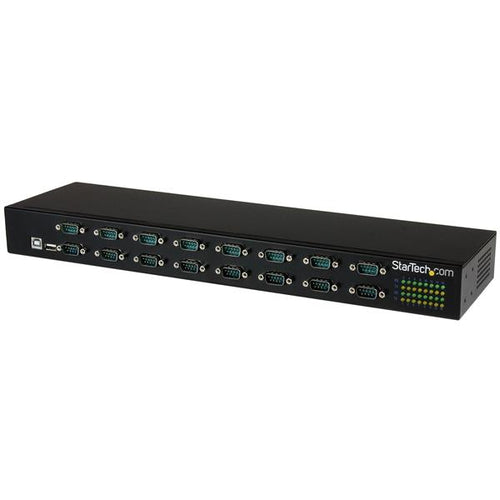

StarTech.com 16-Pt Serial Adapter

StarTech.com 16-Pt Serial Adapter

£520.78 GBP
Sale price: £520.78 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • Low USB bandwidth
  • All-metal chassis
Out of stock
EAN: 65030864763
SKU: V211013
Vendor: StarTech
Order within xx hours for delivery on
Quantity
  • Power Source: AC Adapter Included
  • Input Voltage: 100 - 240V AC
  • Input Current: 1.5 A
  • Output Voltage: 12V DC
  • Output Current: 3 A
  • Center Tip Polarity: Positive
  • Plug Type: N
  • Power Consumption: 36 W

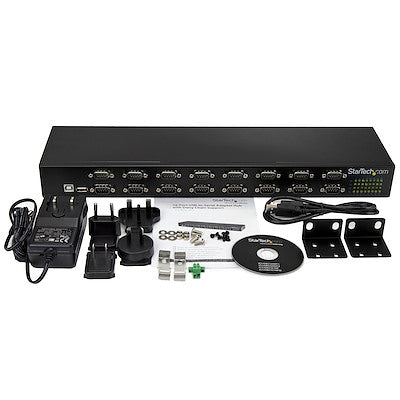

  • 1 - 16-port USB to RS232 hub
  • 1 - USB cable
  • 2 - rack mounting brackets
  • 8 - rack mounting screws
  • 2 - DIN rail mounting brackets
  • 4 - DIN rail mounting screws
  • 4 - washers
  • 4 - nuts
  • 1 - universal power adapter (NA/JP, EU, UK, ANZ)
  • 1 - driver CD
  • 1 - terminal block plug
  • 1 - quick-start guide

Datasheet

Overview

Here's an easy and cost-efficient way to add RS232 serial capability to your industrial setting. This 16-port USB-to-serial adapter hub features a sturdy, rack-mountable chassis, and supports daisy chaining, so you can connect multiple hubs together to increase your serial device port count. This rack-mountable USB serial hub lets you add 16 serial ports (RS232), with full control from your desktop or laptop computer system using a single USB port. The daisy-chain function gives you a cost-effective and scalable way to increase your serial port count and expand as your needs grow, without investing in a higher cost serial hub.

Technical Features
  • Serial Ports: Gain 16 RS232 serial port interfaces through a single USB port
  • Daisy Chain: Connect multiple hubs together via daisy chain functionality
  • Baud Rate: 921.6Kbps per port
  • FIFO: 256-byte transmit, 128-byte receive
  • Design: Rack-mountable
  • COM Port Retention: Yes
  • Operating Temperature: -40°C to 85°C (-40°F to 185°F)
  • Chassis: Durable all-metal
  • USB Bandwidth: Low consumption
  • USB Compatibility: USB 2.0
  • USB Termination: Fully integrated
  • Unique USB Serial: Device supplied pre-programmed with unique USB serial number
