StarTech.com 10pt SATA PCIe Card

StarTech.com 10pt SATA PCIe Card

£107.29 GBP
Sale price: £107.29 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • Wide Compatibility
  • Hassle-Free Installation
Out of stock
EAN: 65030893763
SKU: V277588
Vendor: StarTech
Order within xx hours for delivery on
Quantity
  • Connector Type: 1 x PCI Express x2
  • Internal Ports: 10 x SATA (7 pin, Data)
  • Operating Temperature: 0°C to 85°C (32°F to 185°F)
  • Storage Temperature: -25°C to 85°C (-13°F to 185°F)
  • Humidity: 20~80% RH
  • Ports: 10
  • Interface: SATA
  • Bus Type: PCI Express
  • 1 - PCIe SATA Card
  • 1 - Full-Profile Bracket (Installed)
  • 1 - Low-Profile Bracket
  • 1 - Quick-Start Guide

Datasheet

Overview

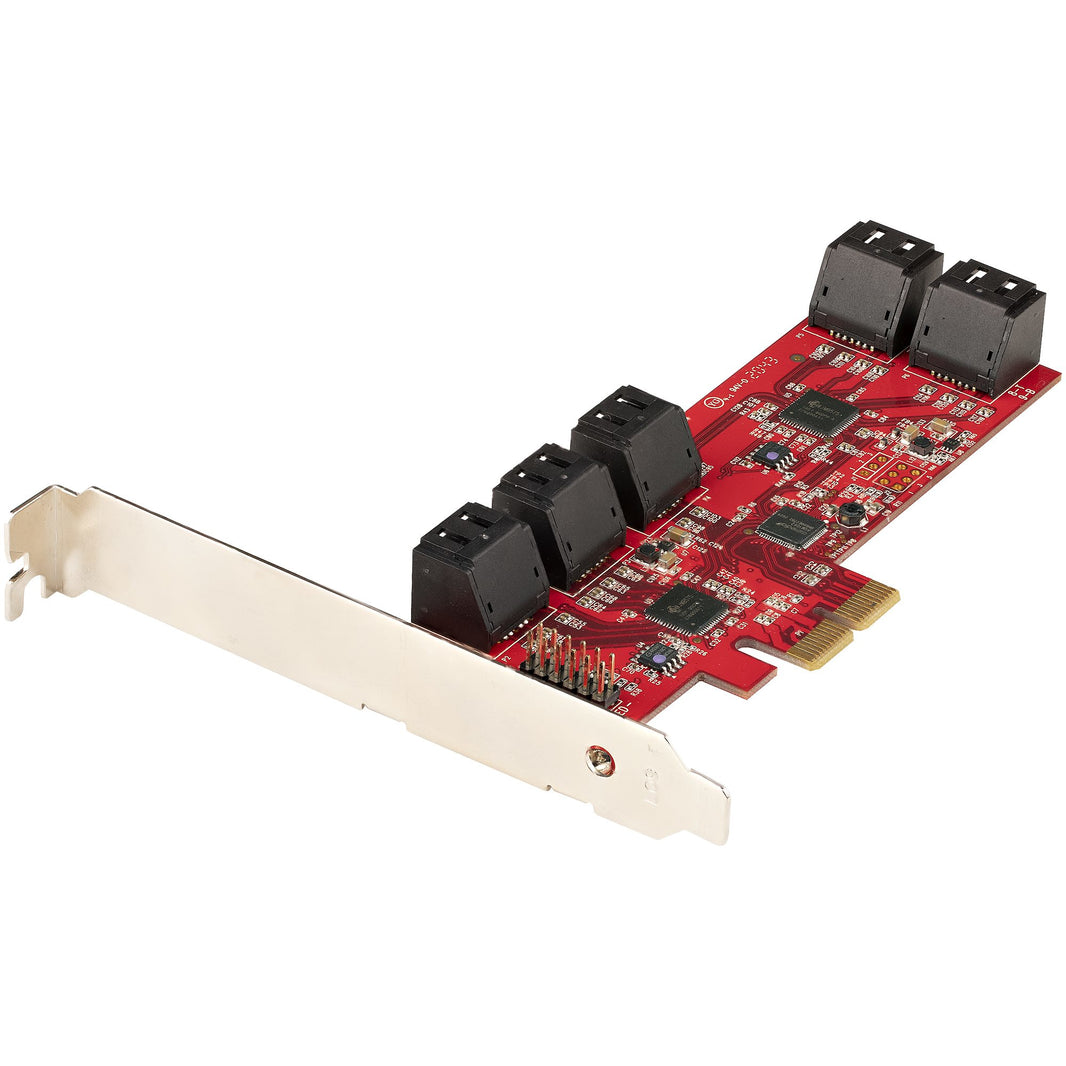

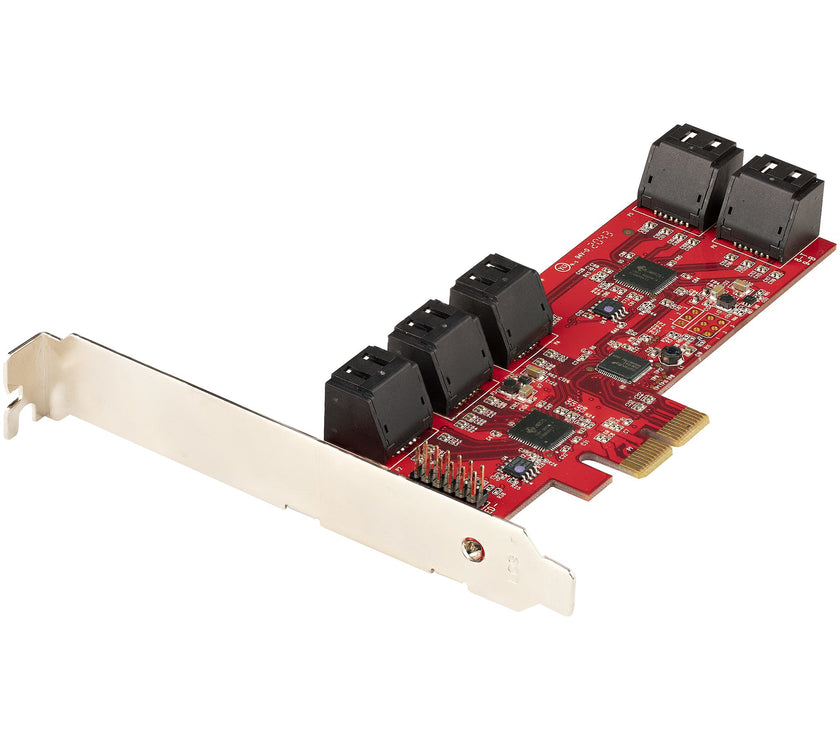

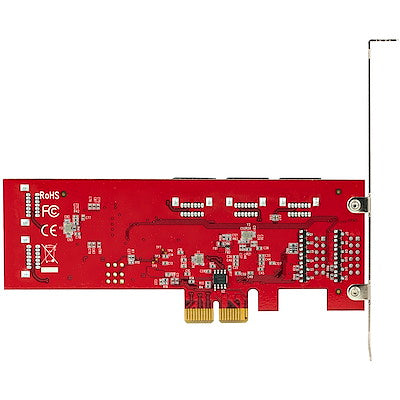

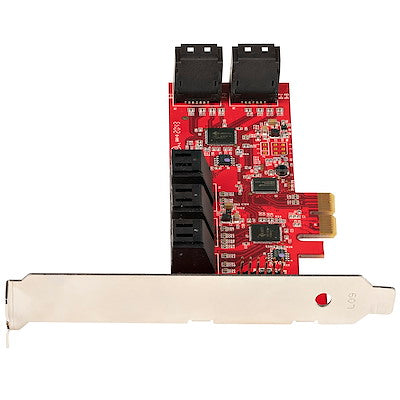

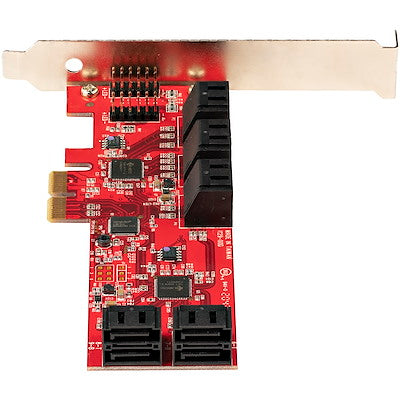

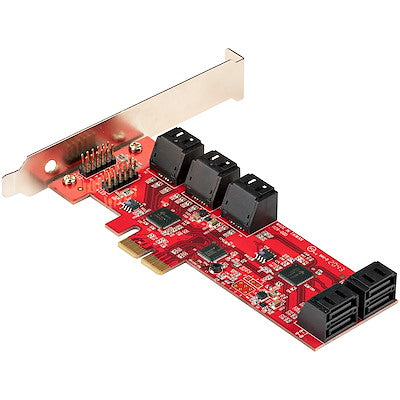

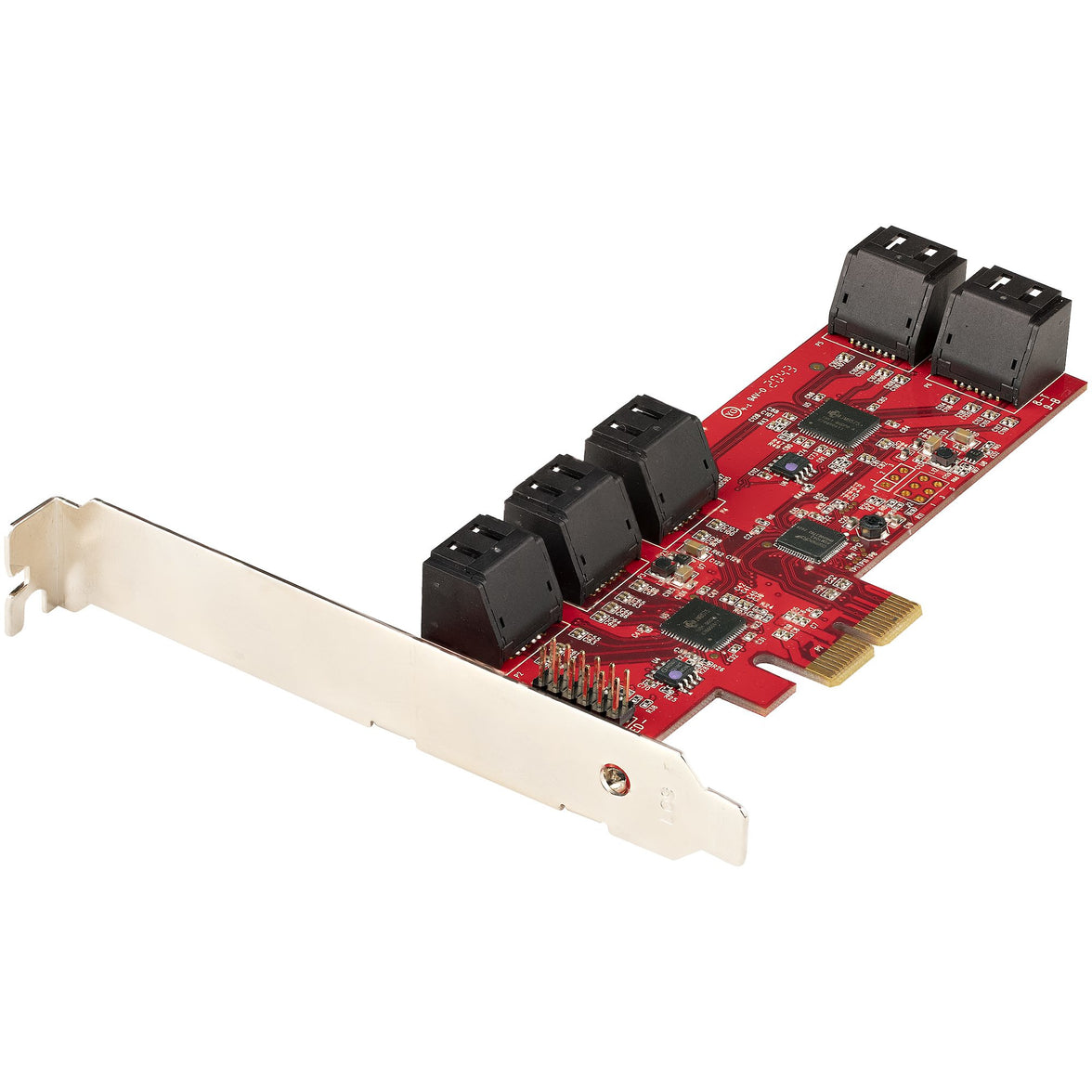

This 10-port SATA III (6Gbps) controller enables you to add 10 SATA 6Gbps Hard Drives (HDDs) or Solid State Drives (SSDs) to your computer system or server via an available PCIe x2 card slot. The card supports SATA III and PCI-Express 2.0 Specifications. Featuring the ASM1062 controller, this SATA card enables the connection of 10 high-performance SATA 6Gbps drives with a combined total throughput of up to 8Gbps. The SATA drives are connected via ten individual SATA ports located on the card (SATA cables sold separately).

Technical Features
  • High-Performance: Adds ten SATA III 6Gbps ports to desktop or server via PCIe x2 slot; 10 SATA connections for HDD/SSD drives (SATA cables sold separately)
  • ASM1062 Controller: Features 1x 2-port x2 PCIe Gen 2 host chip (ASM1062) and 2x 5-port port-multipliers (JMB575) for a total of 10 SATA ports; supports Port Multiplier & NCQ; combined bandwidth up to 8Gbps
  • Compatibility: Supports PCIe 2.0, SATA 3.2 & AHCI 1.3; backward compatible; works with Windows 7+, macOS 10.10+, Linux 2.6.32+; no bifurcation required, no built-in RAID; supports ATA & ATAPI
  • Easy Install: Plug-and-play in full or low-profile PCIe slot (full-profile bracket installed, low-profile bracket included); supports Storage Spaces (Windows), RAID Assistant (macOS), mdraid/mdadm (Linux)
