SFP 1000B-LX 20km LC SM

SFP 1000B-LX 20km LC SM

£18.47 GBP
Sale price: £18.47 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • Single LC connector
  • Single power supply 3.3V
In stock, 32 units
EAN: 4711213686764
SKU: 355706
Vendor: Cablenet
Order within xx hours for delivery on
Quantity
  • MPN: MGBLX
  • EAN: 4711213686764
  • Weight: 0.046 kg
  • Quantity Per Pack: 1 pc(s)
  • Networking Standards: IEEE 802.3z
  • Interface Type: SFP
  • SFP Transceiver Type: Fiber optic
  • SFP Transceiver Standard: LX
  • Wavelength: 1310 nm

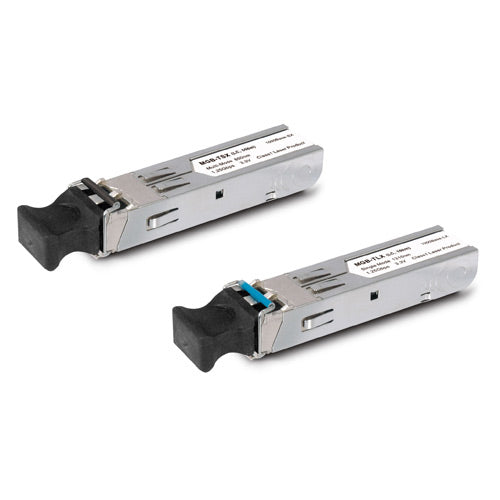

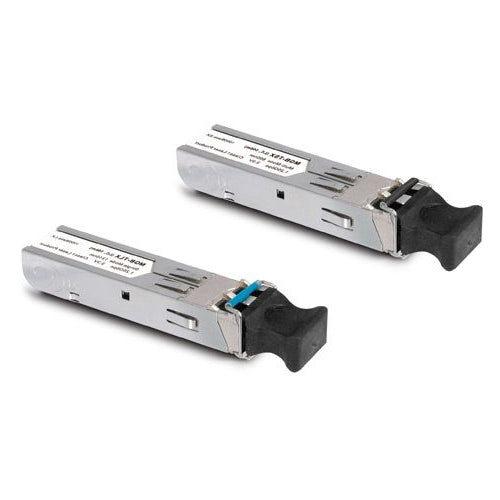

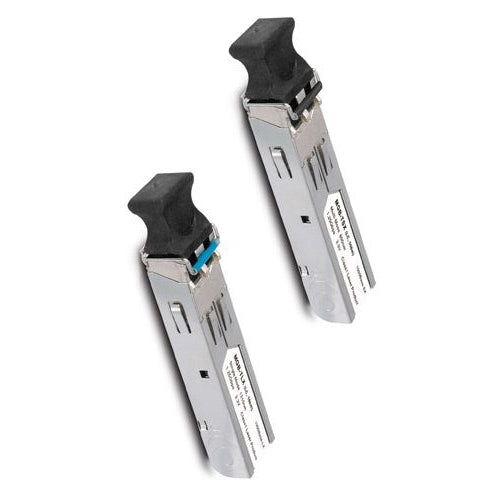

  • Cablenet Planet SFP - Port 1000BASE-LX Mini-GBIC Module - 20km (LC Singlemode)

Overview

The MGB family consists of Small Form Factor Pluggable (SFP) transceiver modules that are specifically designed for high performance integrated duplex data link over single mode optical fibre. These transceiver modules are compliant with the SFP Multisource Agreement (MSA) and hot pluggable. These modules offer an easy way to be installed in SFP MSA compliant ports at any time without the interruption of the host equipment operation. The MGB family of SFP Mini-GBIC Gigabit Ethernet modules can be installed in PLANET Switch products with SFP mini-GBIC interface. The deployment distance can be extended from 100 meters (TP) to 550 meters (Multi-mode, LC), and up to 120 kilometres (Single-mode, LC). To meet the increasing demand of the Industrial Ethernet fibre solution, Planet releases the MGB-T series 1000BASE-SX/LX/BX transceivers that can operate reliably in electrically harsh, climatically demanding, and wide temperature range (-40? to 75?) environment. The MGB-T series 1000BASE-SX/LX/BX transceivers provide easy and fast 1000BASE-SX/LX/BX connection for Planet wide temperature industrial equipment.

Technical Features
  • Complies with the IEEE 802.3ab/802.3z Gigabit Ethernet standard
  • One 1000Mbps TP/LC fiber port
  • Duplex/Single LC connector
  • Differential PECL inputs and outputs
  • Single power supply 3.3V
