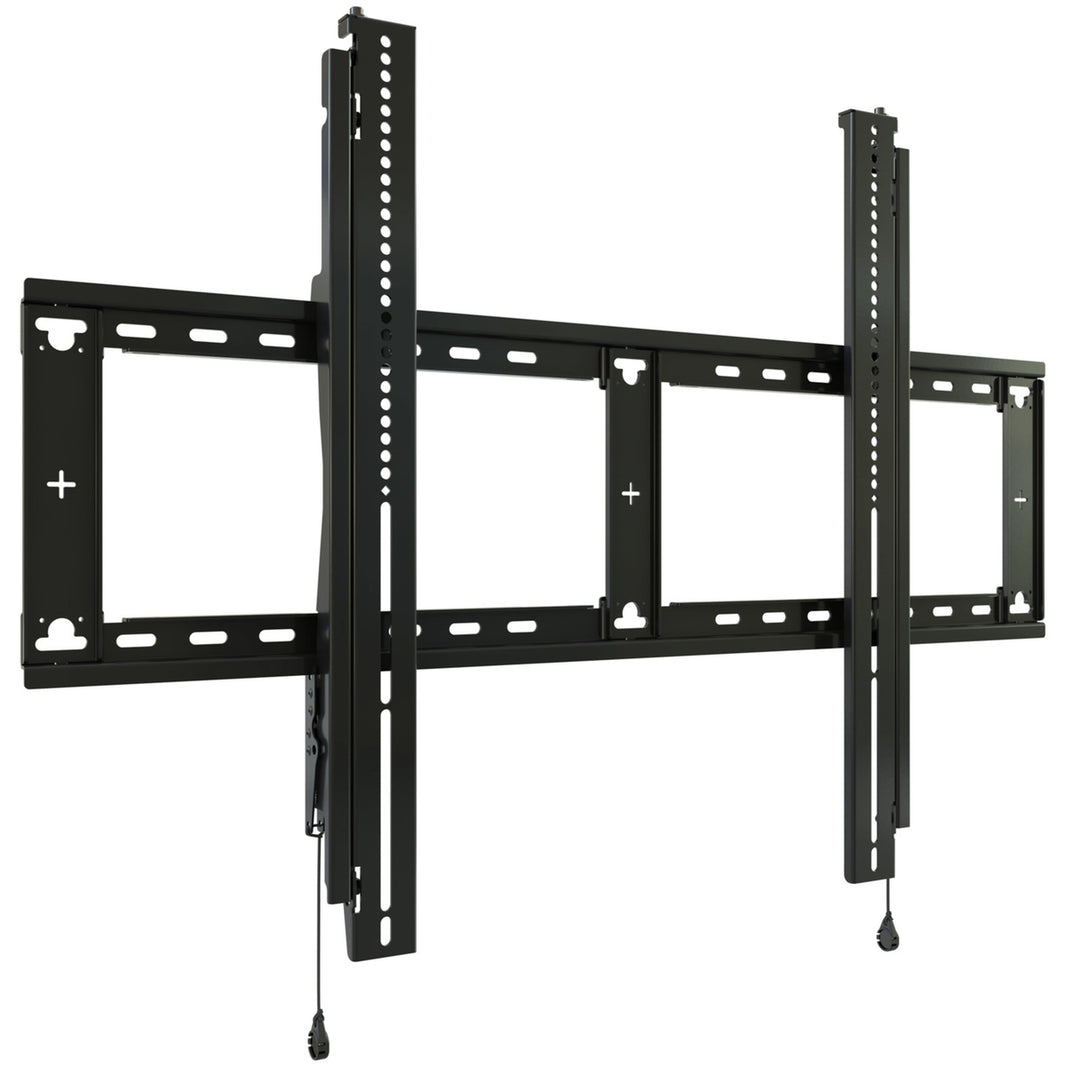

Chief RLF3 Large Universal Fixed Wall Mount

Chief RLF3 Large Universal Fixed Wall Mount

£72.31 GBP
Sale price: £72.31 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • Signal Connections
  • Supports Display Mounting
In stock, 3 units
EAN: 841872176635
SKU: 10384083
Vendor: Chief
Order within xx hours for delivery on
Quantity
  • Minimum Screen Size: 124.5 cm (49")
  • Maximum Weight Capacity: 113.4 kg
  • Mounting Type: Wall
  • Maximum Screen Size: 2.49 m (98")
  • Maximum VESA Mount: 960 x 650 mm
  • Number of Displays Supported: 1
  • Product Colour: Black
  • Certification: TUV, UL Listed
  • Depth (Min): 3.8 cm
  • Height: 687 mm
  • Depth (Max): 3.9 cm
  • Width: 965 mm
  • Height Adjustment: Yes
  • Height Adjustment Type: Manual
  • Chief RLF3 Large Universal Fixed Wall Mount

Manual

Overview

The Fit series RXF3 is an extra-large fixed display wall mount for 49" to 98" typical display sizes and supports mounting patterns up to 960 x 650 mm. This next-generation design features 0.75" (19 mm) post-installation leveling, robust wall plate design supporting up to 250 lbs (113.4 kg), 1.5" (38 mm) low-profile depth, and UL and TUV safety standard approvals.

Technical Features
  • Low Profile Design: 1.5" (38 mm) depth facilitates ADA compliance for typical AV design requirements
  • Post-Installation Leveling: Easy to reach 0.75" (19 mm) screw with 10" (254 mm) ball end hex-key included
  • Open Wall Plate: Allows flexible positioning around power and data wall boxes
  • Display Mounting Support: Supports mounting patterns up to 960 x 650 mm
  • Rigid Wall Plate: Redesigned support up to 250 lbs (113.4 kg) with additional mounting slots for improved installation
  • Lateral Shift: Toolless GlideLock secures display and allows perfect positioning of screen
  • Quick-Store Pullcords: Magnetic, easy access
  • Kickstand: Provides easy access to power and signal connections
  • Theft Deterrent Security: Option available (not included)
  • Safety Standards Compliance: UL and TUV
