POLY SoundPoint IP 670

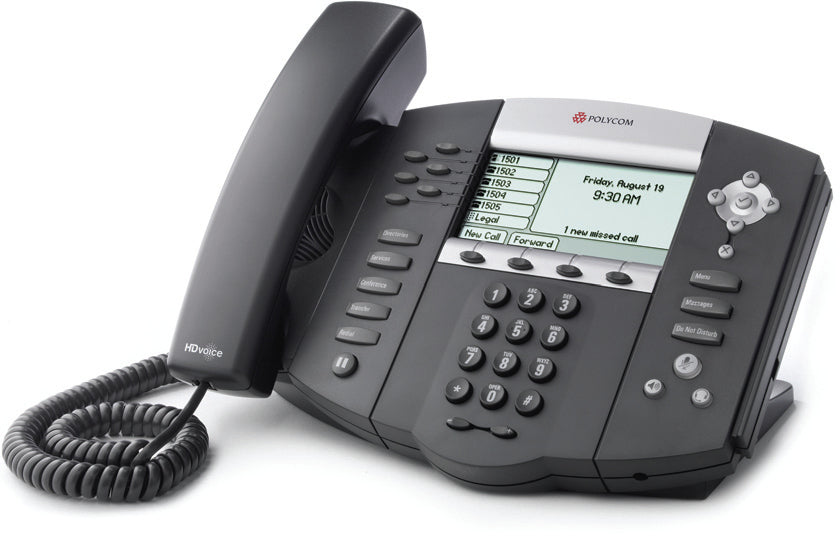

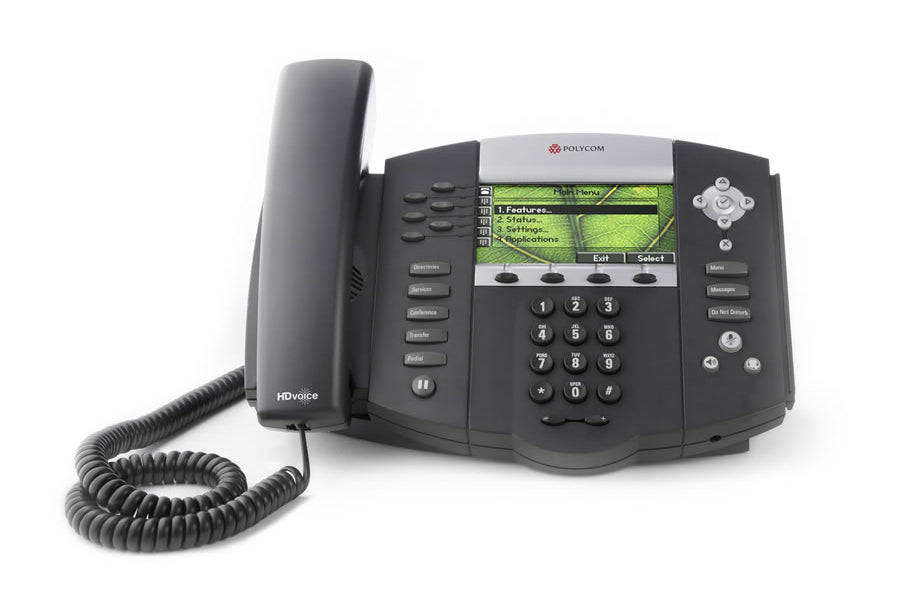

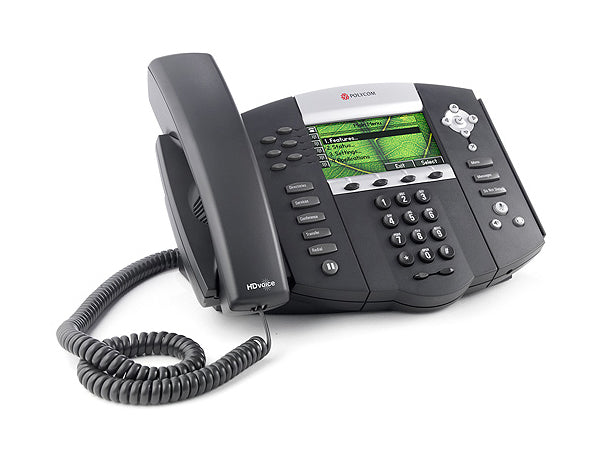

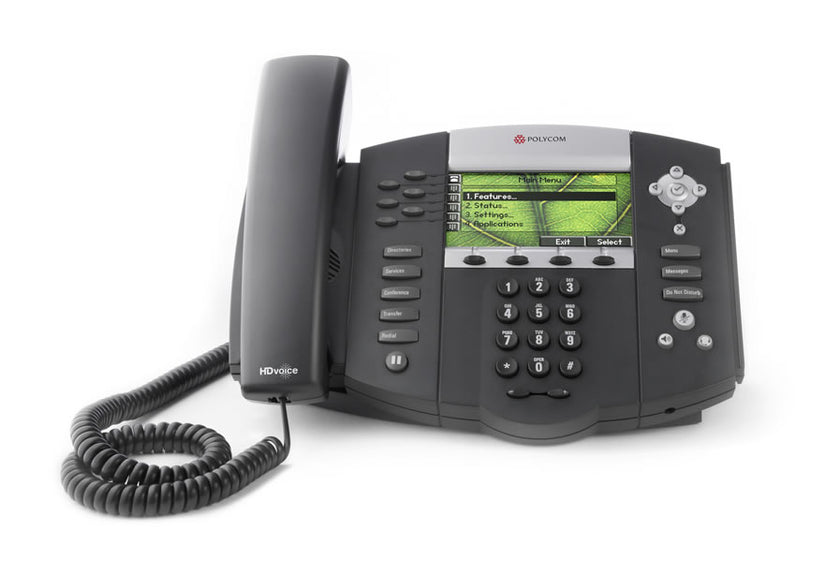

The SoundPoint IP670 is designed to provide professionals with a vibrant color interface for easier viewing and navigation. This offers a high level of integration with productivity-enhancing applications and business processes. The Polycom SoundPoint IP 670 features a backlit, large color display that enables rich visual presentation and easier navigation of the menu. The SoundPoint IP 670 is an ideal platform for accessing applications, such as the Polycom Productivity Suite, through its vibrant color user interface.

Display

• Up to 6 lines (standalone mode)
• Up to 34 lines with Expansion Module(s)
• The PoE version supports one Color Expansion Module
• The PSU version supports up to three Color Expansion Modules
• 320 x 160 backlit color graphical LCD
• LED backlight with custom variable intensity control

Keys

• 4 context-sensitive "soft" keys
• 26 dedicated "hard" keys
• 6 line keys with bi-color (red/green) LED
• 8 feature keys
• 6 display/menu navigation keys
• 2 volume control keys
• Illuminated mute key
• Illuminated headset key
• Illuminated hands-free speakerphone key
• Dedicated hold key

Headset and Hearing Aid Compatibility

• Dedicated RJ-9 headset port: Amplified headsets are recommended
• Compliant with ADA Section 508 Recommendations: Subpart B 1194.23 (all)
• Hearing Aid Compatible (HAC) handset for magnetic coupling to approved HAC hearing aids
• Compatible with commercially-available TTY adapter equipment

Audio Features

• Polycom HD Voice technology delivers life-like voice quality for each audio path - the handset, the hands-free speakerphone, and the headset
• Full-duplex hands-free speakerphone: Type 1 compliant with IEEE 1329 full duplex standards
• Frequency response - 150Hz - 7kHz for handset, headset and hands-free speakerphone modes
• Codecs: G.722 (wideband), G.711 µ/A, and G.729A (Annex B)
• Individual volume settings with visual feedback for each audio path
• Voice activity detection, Comfort noise fill, DTMF tone generation/DTMF event RTP payload
• Low-delay audio packet transmission, Adaptive jitter buffers, Packet loss concealment
• Acoustic echo cancellation, Background noise suppression

Call Handling Features

• Shared call/bridged line appearance
• Flexible line appearance (one or more line keys can be assigned for each line extension)
• Busy Lamp Field (BLF)
• Distinctive incoming call treatment/call waiting
• Call timer
• Call transfer, hold, divert (forward), pickup
• Called, calling, connected party information
• Local three-way conferencing
• One-touch speed dial, redial
• Call waiting, Remote missed call notification, Intercom
• Automatic off-hook call placement
• Do not disturb function

Network and Provisioning

• Two-port Gigabit Ethernet switch: 10/100/1000Base-Tx across LAN and PC ports
• Conformant to IEEE802.3-2005 (Clause 40) for Physical Media Attachment
• Conformant to IEEE802.3-2002 (Clause 28) for Link Partner Auto-Negotiation
• Manual or dynamic host configuration protocol (DHCP) network setup
• Time and date synchronization using SNTP
• FTP/TFTP/HTTP/HTTPS server-based central provisioning for mass deployments. Provisioning server redundancy supported
• Web portal for individual unit configuration
• QoS Support – IEEE 802.1p/Q tagging (VLAN), Layer 3 TOS, and DSCP
• Network Address Translation (NAT) support – static
• RTCP support (RFC 1889)
• Event logging, Local digit map, Hardware diagnostics, Status and statistics

Security

• Transport Layer Security (TLS)
• Encrypted configuration files
• Digest authentication
• Password login
• Support for URL syntax with password for boot server address
• HTTPS secure provisioning
• Support for signed software executables

Power

• Built-in, auto-sensing IEEE 802.3af Power over Ethernet
• External Source 48V DC, optional

Size

• 10.5 in x 6 in x 7.5 in x 2.5 in (26.5 cm x 15 cm x 19 cm x 6.5 cm)
• 4.83lb (2.19kg)
