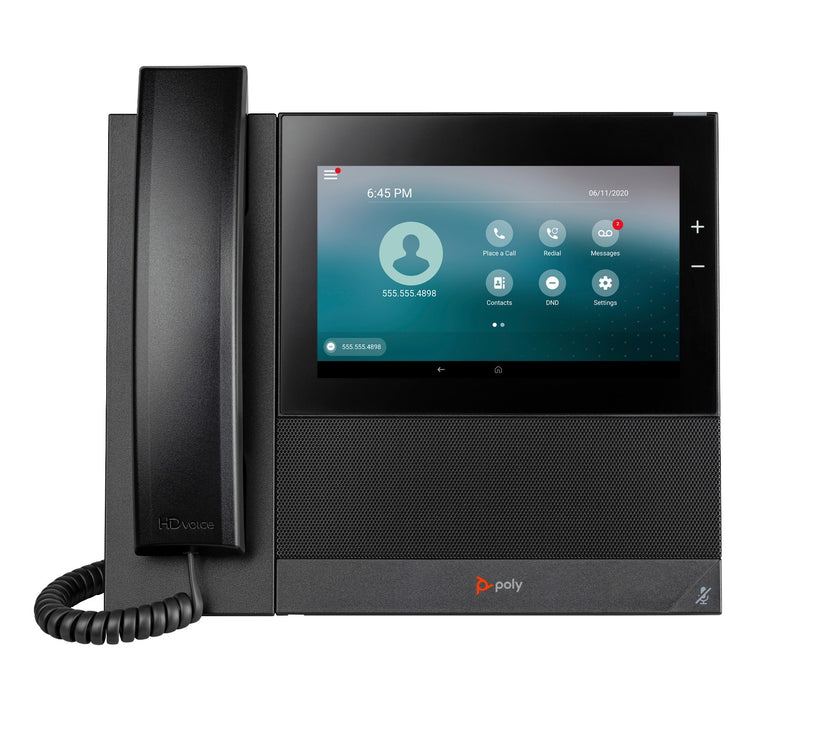

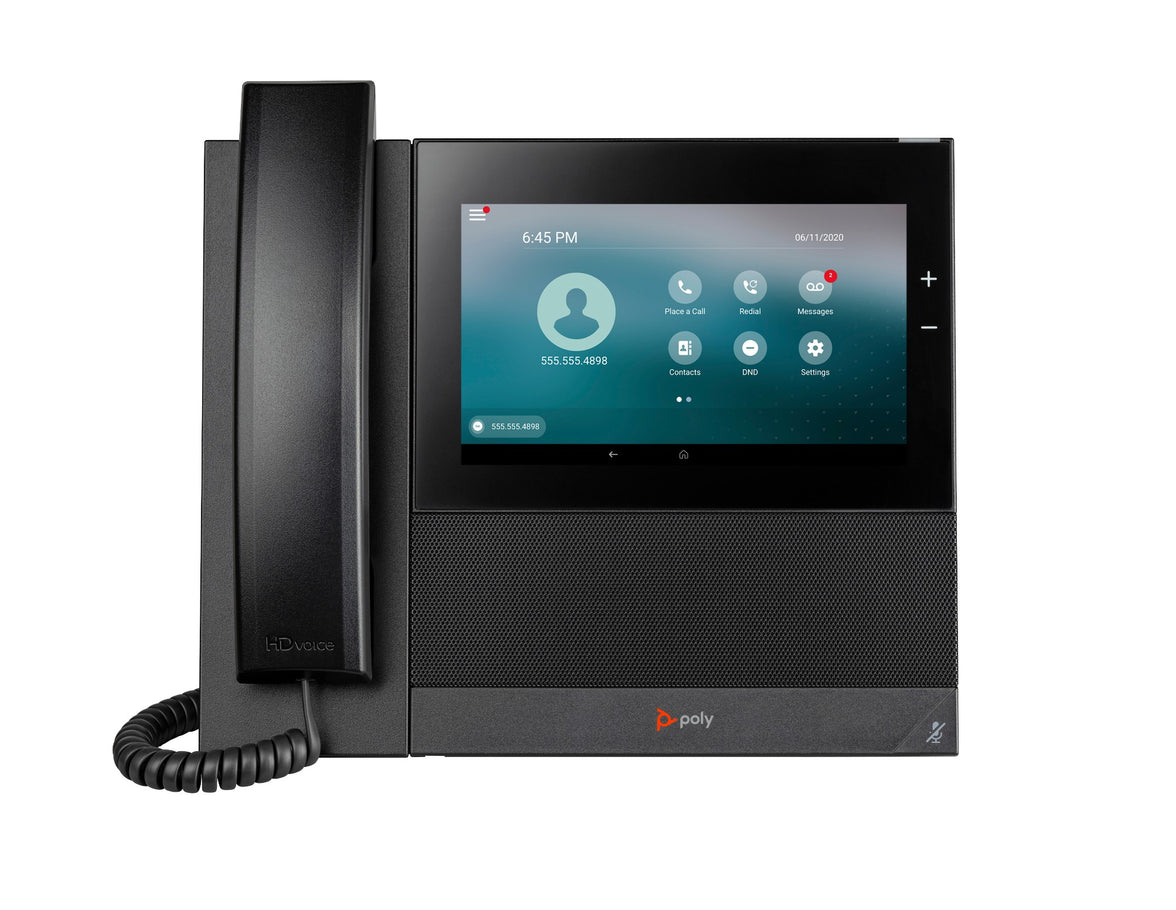

Poly CCX 600 BMP SIP PoE-e

The Poly CCX 600 is a Business Media Phone that boasts a 7” screen, perfect for managers, executives, and anybody who needs more room to work effectively. It features legendary audio quality, Poly HD Voice, Poly Acoustic Clarity and Poly Acoustic Fence that wipes out distracting background noise. Conversations stay on track thanks to full duplex speakerphone operation with world-class echo cancellation. The CCX 600 phone is simple and intuitive to use, with one-touch-access to your contacts and meetings. The phone is fast and responsive, designed with the latest powerful chipsets. Robust provisioning and management enable efficient telephony deployment and support. Is's  also easy to install anywhere with WiFi is included.

Audio Features

• Poly HD Voice technology delivers lifelike voice quality for each audio path: handset, hands-free speakerphone, and optional headset
• Poly Acoustic Clarity technology provides full duplex conversations, acoustic echo cancellation, and background noise suppression
• TIA-920 wideband audio, type 1 compliant (IEEE 1329 full duplex)
• Frequency response—100 Hz–20 kHz for handset, optional headset, and handsfree speakerphone modes
• Codecs: G.711 (A-law and μ-law), G.729AB, G.722 (HD Voice), G.722.1 iLBC
• Individual volume settings with visual feedback for each audio path
• Voice activity detection
• Comfort noise generation
• DTMF tone generation (RFC 2833 and in-band)
• Low delay audio packet transmission
• Adaptive jitter buffers
• Packet loss concealment
• OPUS support
• Headset and handset compatibility
• Dedicated RJ-9 headset port
• Hearing aid compatibility to ITU-T P.370 and TIA 504A standards
• Compliant with ADA Section 508 Subpart B 1194.23 (all)
• Hearing aid compatible (HAC) handset for magnetic coupling to hearing aids
• Compatible with commercially available TTY adapter equipment
• USB headset support
• Bluetooth headset support

Network and Provisioning

• SIP protocol support
• SDP
• IETF SIP (RFC 3261 and companion RFCs)
• Two-port gigabit Ethernet switch
• 10/100/1000Base-TX across LAN and PC ports
• Conforms to IEEE802.3-2005 (Clause 40) for physical media attachment
• Conforms to IEEE802.3-2002 (Clause 28) for link partner auto-negotiation
• Manual or dynamic host configuration protocol (DHCP) network setup
• Time and date synchronization using SNTP
• FTP/TFTP/HTTP/HTTPS server-based central provisioning for mass deployments
• Provisioning and call server redundancy supported
• QoS Support—IEEE 802.1p/Q tagging (VLAN), Layer 3 TOS, and DHCP
• VLAN—CDP, DHCP VLAN discovery, LLDPMED for VLAN discovery
• Network address translation support for static configuration and “keep-alive”
• SIP signaling
• RTCP and RTP support
• Event logging
• Syslog
• Hardware diagnostics
• Status and statistics reporting
• IPv4 and IPv6
• TCP
• UDP
• DNS-SRV

Security

• 802.1X authentication and EAPOL media encryption via SRTP
• Transport layer security (TLS)
• Encrypted configuration files
• Digest authentication
• Password login
• Support for URL syntax with password for boot server address
• HTTPS secure provisioning
• Support for signed software executables
• WiFi encryption: WEP, WPA-Personal, WPA2-Personal, WPA2-Enterprise with 802.1X (EAP-TLS, PEAP-MSCHAPv2)

Power

• Built-in auto sensing IEEE 802.3af Power over Ethernet (Class 4) 25 W (Max)
• External universal AC/DC adapter (optional) 48 VDC @ 0.52 A (25 W)
• ENERGY STAR® rated

Dimensions and Weight

• With handset: 26.3 cm x 21.7 cm x 6.0 cm WxHxD (10.4 in x 8.5 in x 2.4 in WxHxD)
• Without handset: 19.0 cm x 21.7 cm x 6.0 cm WxHxD (7.5 in x 8.5 in x 2.4 in WxHxD)
• CCX 600 with handset unit weight: 1.97 kg (4.34 lbs)
• CCX 600 without handset unit weight: 1.30 kg (2.87 lbs)
