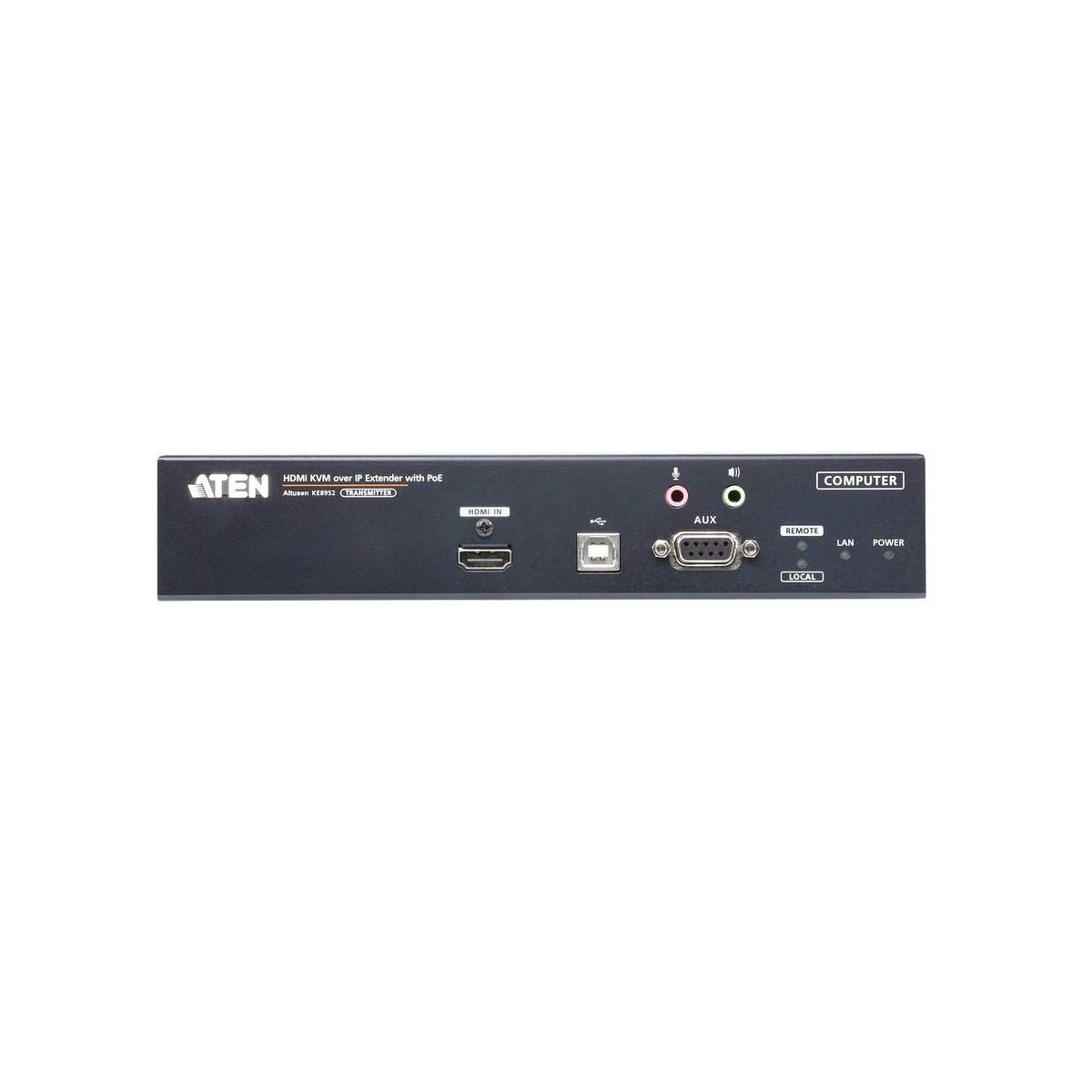

Aten POA Only 4K HDMI KVM over IP Transmitter PoE

Aten POA Only 4K HDMI KVM over IP Transmitter PoE

£788.40 GBP
Sale price: £788.40 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • KVM Functionality
  • Supports virtual media
In stock, 8 units
EAN: 4719264645570
SKU: 10176126
Vendor: Aten
Order within xx hours for delivery on
Quantity
  • Function: KE8952T
  • LAN Ports: 1 x RJ-45 (PoE), 1 x SFP Slot
  • Power: DC5V: 6.56W, POE: 9.02W
  • Video Resolution: Up to 3840 x 2160 @ 60Hz
  • Latency: < 5ms
  • Operating Temperature: 0 – 50 °C
  • Weight: 1.13 kg
  • Dimensions: 21.50 x 16.29 x 4.18 cm
  • 1x KE8952T 4K HDMI Single Display KVM over IP Transmitter with PoE
  • 1 x KVM Cable (HDMI, USB, Audio; 1.8 m/6 ft)
  • 1x HDMI LockPro
  • 1x Foot Pad Set
  • 1x Mounting Kit
  • 1x User Instructions

Datasheet

Overview

Utilizing expertise in over IP KVM solutions, the KE8950 and KE8952 are IP-based HDMI KVM extenders that allow access to a computer system from a remote USB console to anywhere over an intranet. The KE8950 and KE8952 KVM over IP Extenders support one HDMI monitor at each end, providing a greatly improved video display image with 4K x 2K video resolution (up to 3840 x 2160).

Technical Features
  • ATEN Matrix Link: Allows users instant link transmitters and receivers, and perform real-time port and profile switching on an iPad
  • Boundless Switching: Simply moves the mouse cursor across screen boundaries to switch between different receivers (Rx)
  • Fast Switching: Switches between different remote video resolutions on a local display within 0.3 seconds
  • “Push” and “Pull”: Shares content instantly to/from a single Rx or video wall by just one click
  • Video Walls: Creates multiple video walls with up to 12 x 12 (144 displays max.) in each layout
  • Flexible Connections: Allows multiple extender and matrix connections for multi-display installations and video wall applications
  • On-screen Preview (Panel Array™ Mode): Allows users to view the video of up to 36 displays on one screen
  • Advanced Scheduling: Improves efficiency and saves costs by allowing connections to be set based on time and date
  • Channel Connections: Allow RX devices to connect to multiple TX devices to stream video, audio, USB and serial sources independently
  • Virtual Transmitter: Independently streams video, audio, USB, and serial sources from different TX
  • Authentication Support: Supports LDAP, Active Directory, RADIUS and TACACS+ external authentications
  • Advanced User Authorization: Administrators can set four access modes of permissions on TX devices for collaboration or to avoid interference among users
  • Video Grouping: Groups up to 4 sets of KE series devices to support Multi-Display applications
  • User and Group Permissions: Configurable for access and control of KVM over IP extenders
  • Rx Access Control: Users at the Tx local console can enable/disable Rx access by simply pressing a control button
