MVC-S90

MVC-S90

£9,325.02 GBP
Sale price: £9,325.02 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • 4K cameras with 12x optical zoom that capture every movement
  • Share content wirelessly with a single click
  • 11th Gen Intel® Core i5 Mini PC
Out of stock
EAN: 6938818316324
SKU: MVC-S90
Vendor: Yealink
Order within xx hours for delivery on
Quantity
  • Video solution type: Complete solution
  • Room size: Large meeting room (+12)
  • Connect with: Without a computer
  • Compatible with: Microsoft Teams
  • Camera resolution: 4K
  • Exploration camera: 90°
  • Camera functions: Automatic framing and tracking
  • Other features: Integrated video conferencing, Content sharing, With Windows
  • 2 x UVC86 12X PTZ Camera
  • 1 x MCore Pro mini-PC
  • 1 x MTouch Plus
  • 1 x RoomSensor
  • 1 x AVHub Multi-Camera Processor
  • 2 x WPP30 for wireless content sharing
  • 1 x Yealink MVC-BYOD
  • 1 x CAT5e Cable 7.5 m
  • Quick Start Guide

Datasheet

Overview

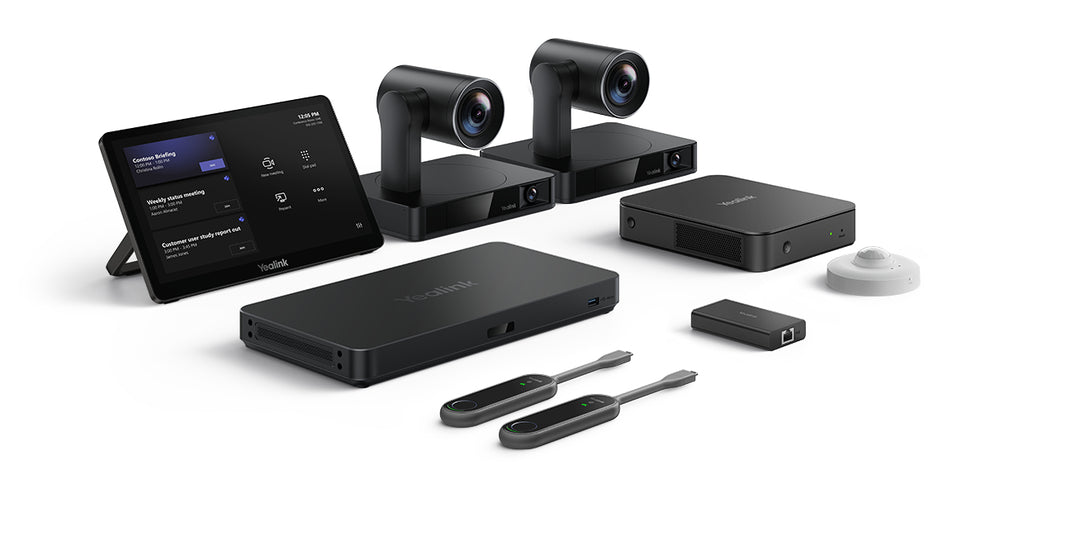

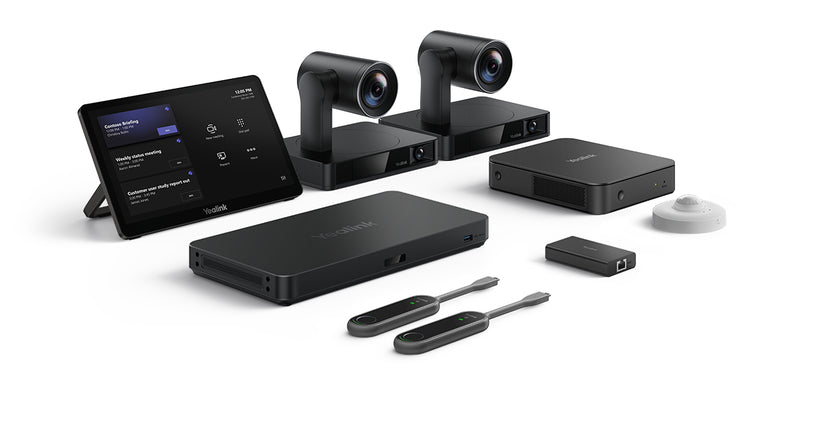

The Microsoft Teams Rooms MVC S90 system is designed for very large rooms. It includes a UVC86 intelligent multi-camera system, an MCore Pro mini PC, an MTouch Plus touchpad, AVHub, BYOD Extender, RoomSensor, and a WPP30 4K wireless presentation module. It delivers an immersive meeting experience for all participants, wherever they are. The MVC S90 simplifies camera tracking so you can focus on what's essential. Its fast and accurate multi-camera IntelliFrame feature facilitates smooth communication in remote meetings or panel discussions.

Technical Features
  • Mini PC MCore Pro, Gen-3
    • 11th Generation Intel® Core i5
    • Memory: 8 GB (2 x 4 GB)
    • Storage: 128 GB SSD
    • 3 HDMI video outputs supporting CEC
    • TPM2.0
    • Core DMA
    • EDID
    • Wi-Fi: IEEE 802.11 a/b/g/n/ac/ax
    • Bluetooth BT 5.2
    • 1 x Yealink MTouch port (RJ45), connect to MTouch Plus / MTouch E2
    • 4 x USB 3.0 Type-A
    • 1 x 10/100/1000M Ethernet port
    • 1 x Power port
    • 1 x Security lock slot, Integrated cable management
    • Windows 10 IoT Enterprise X64 / Windows 11 IoT Enterprise X64
    • Windows 10 IoT Business License
  • 11.6-inch IPS Display
    • 1920 x 1080 video resolution
    • Angle between screen and desktop (30° ~ 70°)
    • Adjustable angle of support frame (50° ~ 180°)
    • Supports wired and wireless content sharing (with WPP30)
    • Supports multi-screen control*
    • Compatible with wireless BYOD*
    • Supports external PD power supply to power the sharing device
    • Supports HDMI/USB-C video input
    • Supports desktop placement, fixed desktop, wall-mounted deployment
    • Microsoft Teams Rooms App, compatible with Skype for Business
    • Yealink RoomConnect

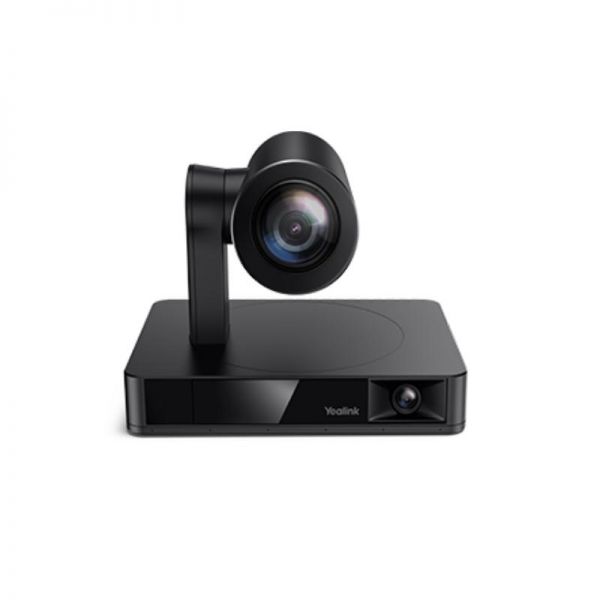

  • UVC86
    • 4K Sensor
    • 20.4 × HD zoom (12x optical, 1.7x digital)
    • Viewpoint: -90° DFOV, 81° HFOV, 50° VFOV (Telephoto) -120° DFOV, 110° HFOV, 78° VFOV (Widescreen)
    • Automatic framing
    • Speaker tracking
    • Presenter tracking, support area Trigger and gesture control
    • Multi-focus
    • Picture in picture
    • Up to 9 preset positions can be configured

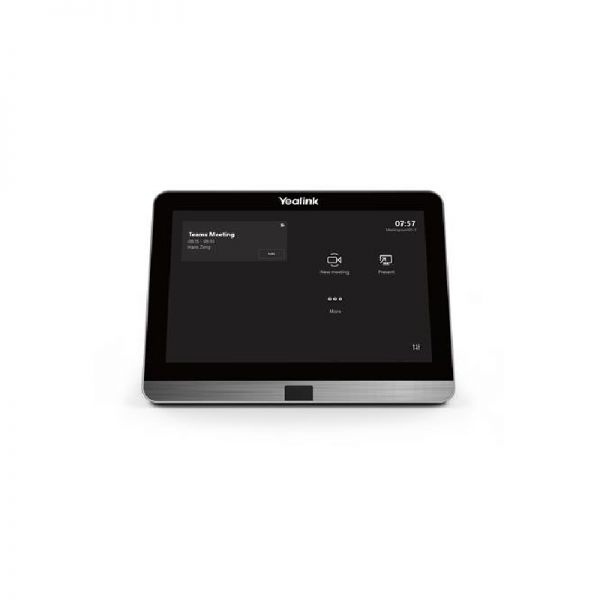

  • MTouch Plus
    • 11.6-inch IPS display with narrow bezel
    • 1920 x 1080 video resolution
    • Angle between screen and desktop (30° ~ 70°)
    • Adjustable angle of support frame (50° ~ 180°)
    • Supports wired and wireless content sharing (with WPP30)
    • Supports multi-screen control*
    • Compatible with wireless BYOD*
    • Supports external PD power supply to power the sharing device
    • Supports HDMI/USB-C video input
    • Supports desktop placement, fixed desktop, wall-mounted deployment
  • RoomSensor
    • Detection:
      • Occupancy
      • Temperature
      • Humidity
      • Light
    • Protocol: Bluetooth BLE 5.2
    • Frequency band: 2.4 GHz
    • Reach: 30 m (100 ft)
    • Multi-connectivity: Maximum 4 simultaneously, BLE mesh
  • Yealink BYOD Extender
    • Plug & Play Hub
    • Connect a USB cable to your PC
