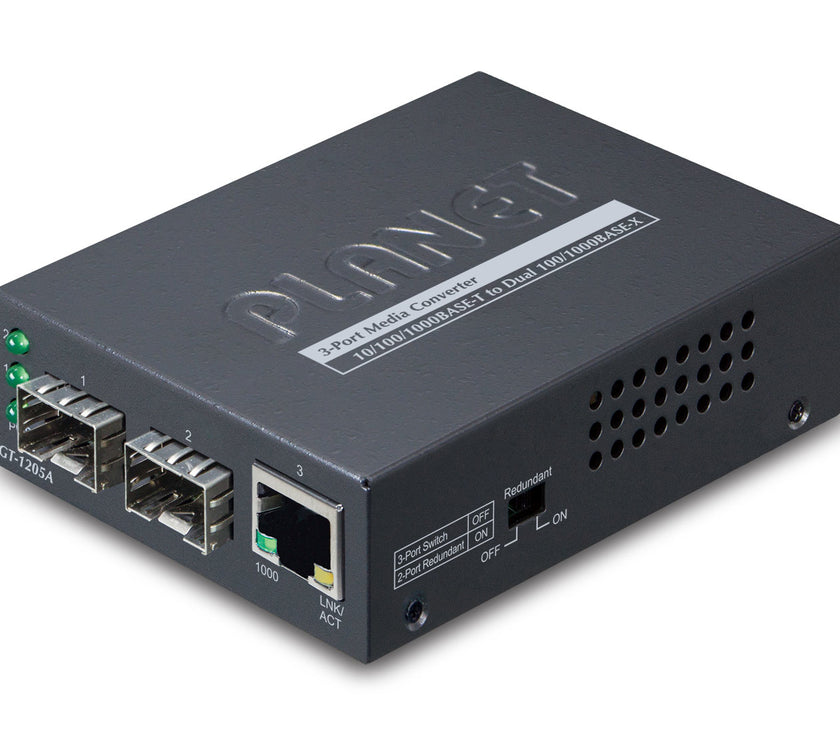

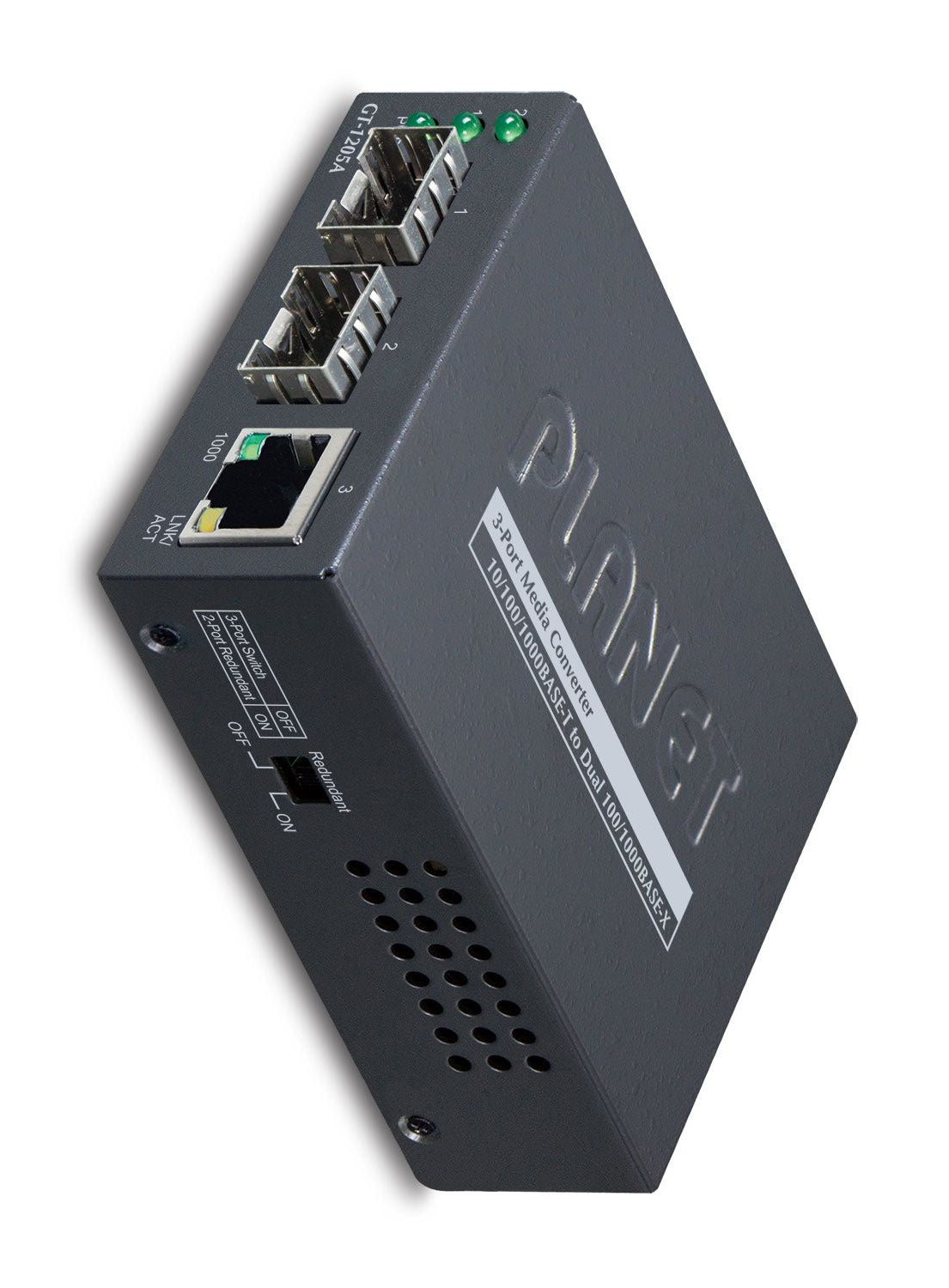

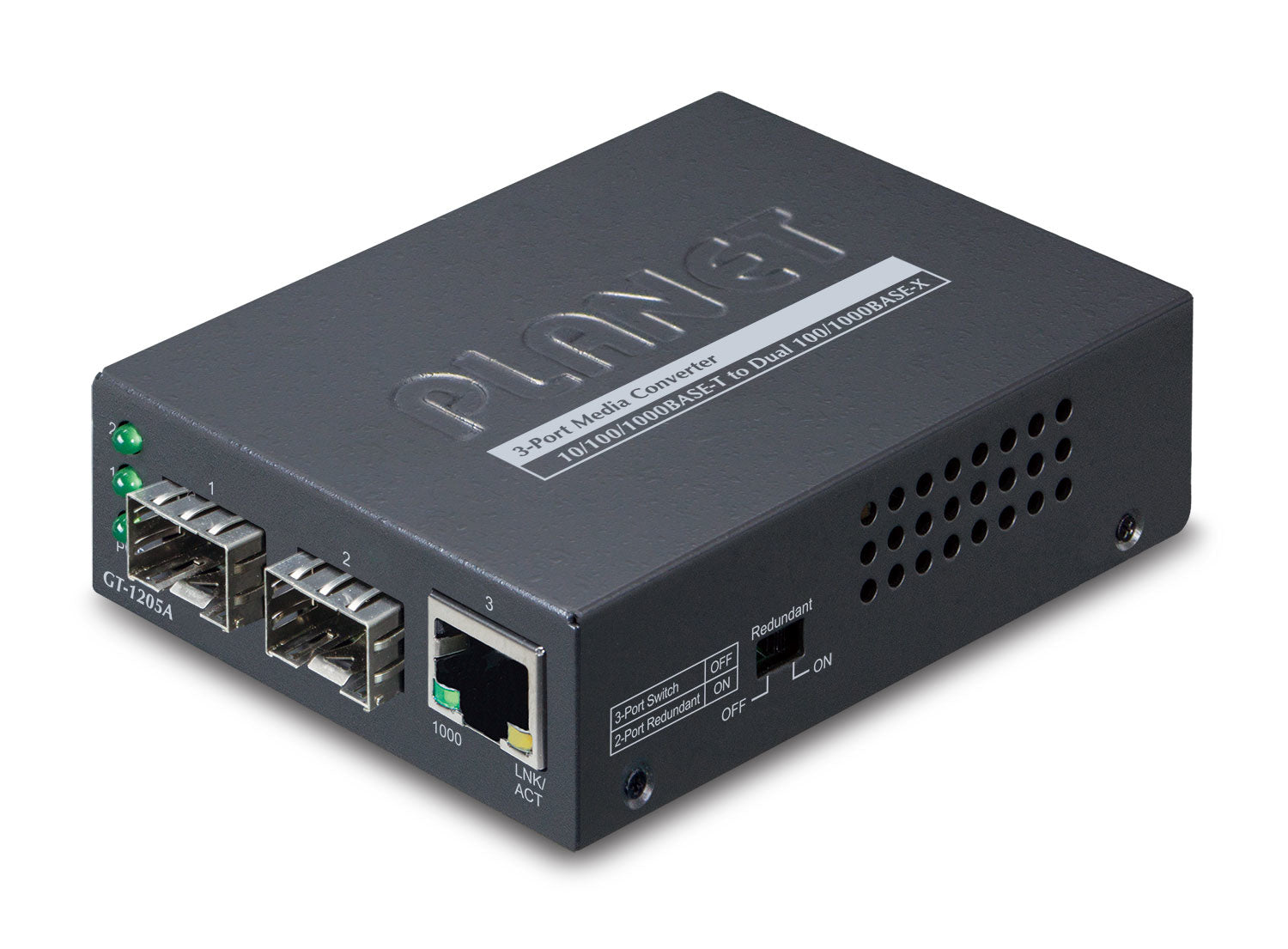

MCon Gb 2x SFP

MCon Gb 2x SFP

£113.89 GBP
Sale price: £113.89 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • Hardware fibre port redundant
In stock, 2 units
EAN: 4711213686672
SKU: 355667
Vendor: Cablenet
Order within xx hours for delivery on
Quantity
  • Vendor: Planet
  • MPN: GT-1205A
  • EAN: 4711213686672
  • Weight: 0.444000
  • Networking Standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
  • Ethernet LAN Data Rates: 10, 100, 1000 Mbit/s
  • Fiber Ports Quantity: 2
  • Duplex System: Full, Half
  • Ethernet Interface Type: Gigabit Ethernet
  • Operating Relative Humidity: 5 - 95%
  • Certification: FCC Class B, CE
  • Maximum Transfer Distance: 120km
  • Cablenet Media Converter Gigabit 10/100/1000- 2 Port SFP Redundant

Datasheet

Overview

The GT-1205A is equipped with one 10/100/1000BASE-T port and dual SFP slots to support conversion between 10/100/1000BASE-T and 100/1000BASE-X network. The dual SFP slots make the Ethernet signals connect easily and efficiently by adding single-mode or multi-mode media modules or the combination of both types. The GT-1205A provides high reliability and flexibility to extend the media transmission distance up to 550m or 2km (multi-mode fibre) and 10km or longer 20/40/80/120 kilometres (single-mode fibre or WDM fibre), depending on the optional 100/1000BASE-SX/LX SFP modules.

Technical Features
  • Standard: Standard
  • 10BASE-T compliance: Complies with IEEE 802.3 10BASE-T
  • 100BASE-TX/100BASE-FX compliance: Complies with IEEE 802.3u 100BASE-TX/100BASE-FX
  • 1000BASE-T compliance: Complies with IEEE 802.3ab 1000BASE-T
  • 1000BASE-SX/LX compliance: Complies with IEEE 802.3z 1000BASE-SX/LX
