MB AMD AM5 B850I EDGE TI WIFI D5 ITX

MB AMD AM5 B850I EDGE TI WIFI D5 ITX

£272.54 GBP
Sale price: £272.54 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • Network & Wireless Features
  • VRM & Power Delivery System
  • Audio & Onboard Features
In stock, 4 units
EAN: 4711377360906
SKU: 10459223
Vendor: MSI
Order within xx hours for delivery on
Quantity
  • Brand: MSI
  • Series: MPG B850 Edge TI WiFi
  • Item model number: MPG B850 Edge TI WiFi
  • Item Weight: 4.94 pounds
  • Product Dimensions: 13.43 x 10.71 x 2.87 inches
  • Item Dimensions LxWxH: 13.43 x 10.71 x 2.87 inches
  • Color: Grey
  • Manufacturer: MSI
  • ASIN: B0DT58PFRG

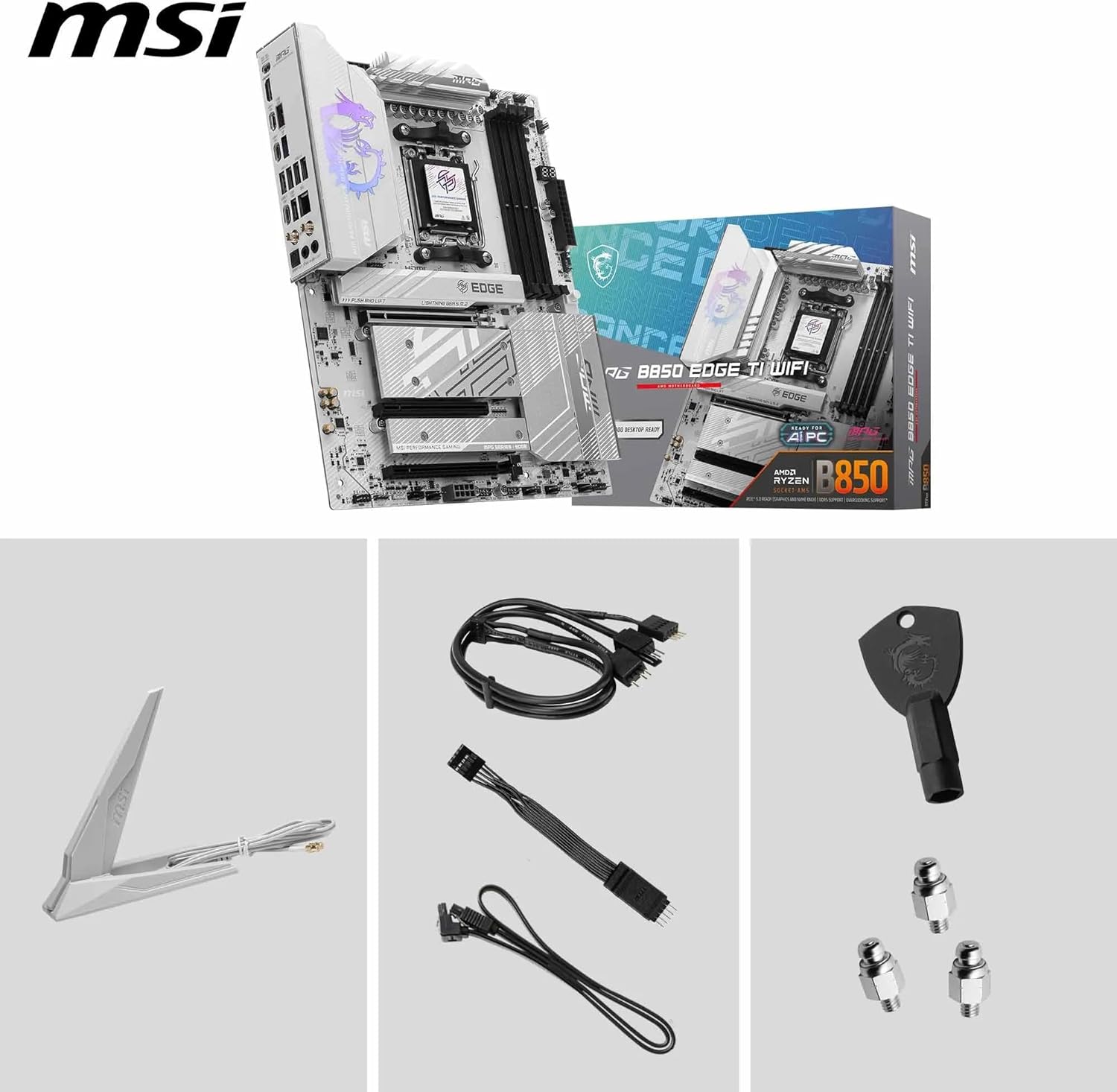

  • Quick installation guide
  • Regulatory information leaflet
  • MSI survey leaflet

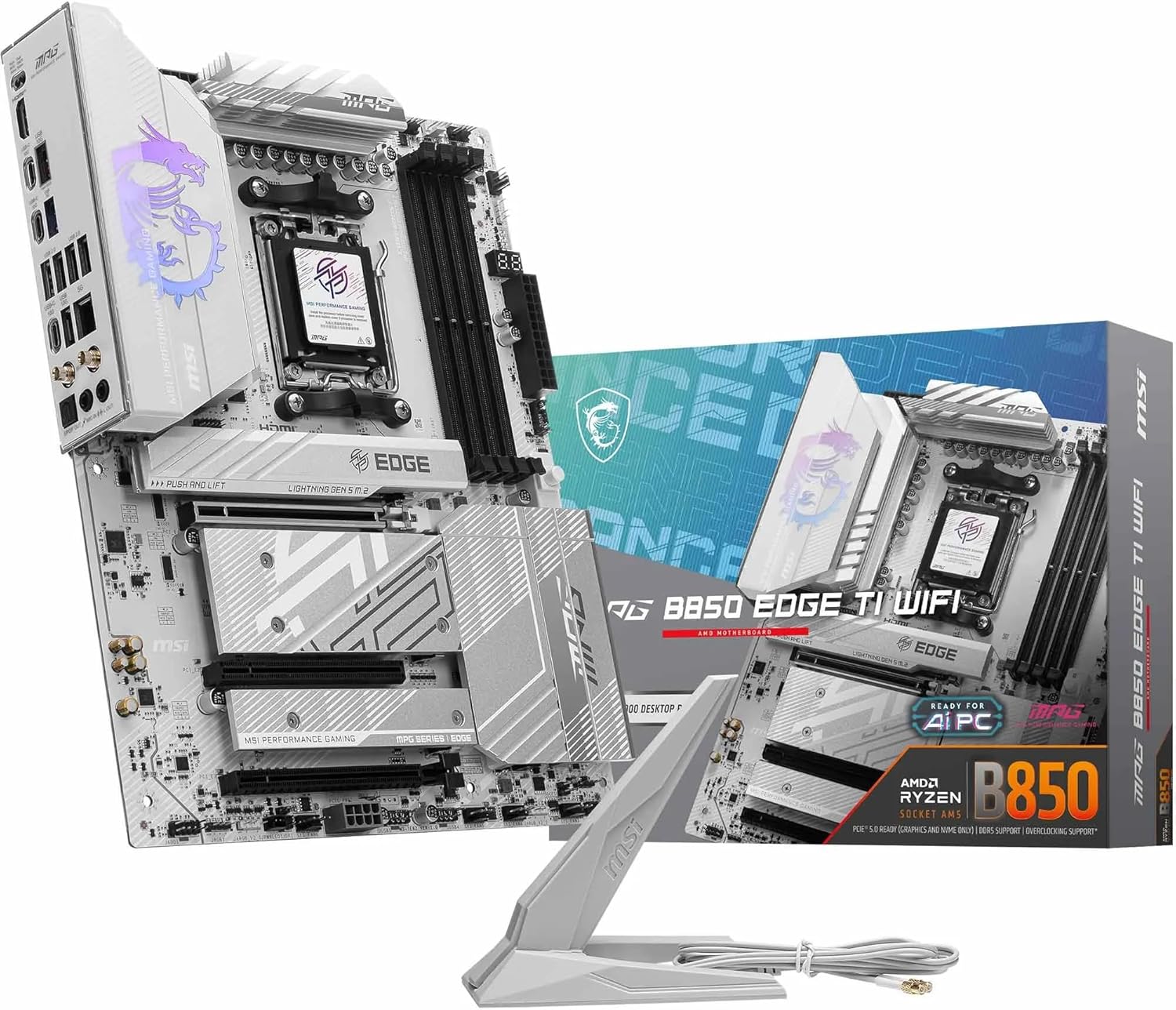

  • Wi-Fi Antennas
  • SATA Cable(s)
  • EZ Front Panel cable

datasheet

Overview

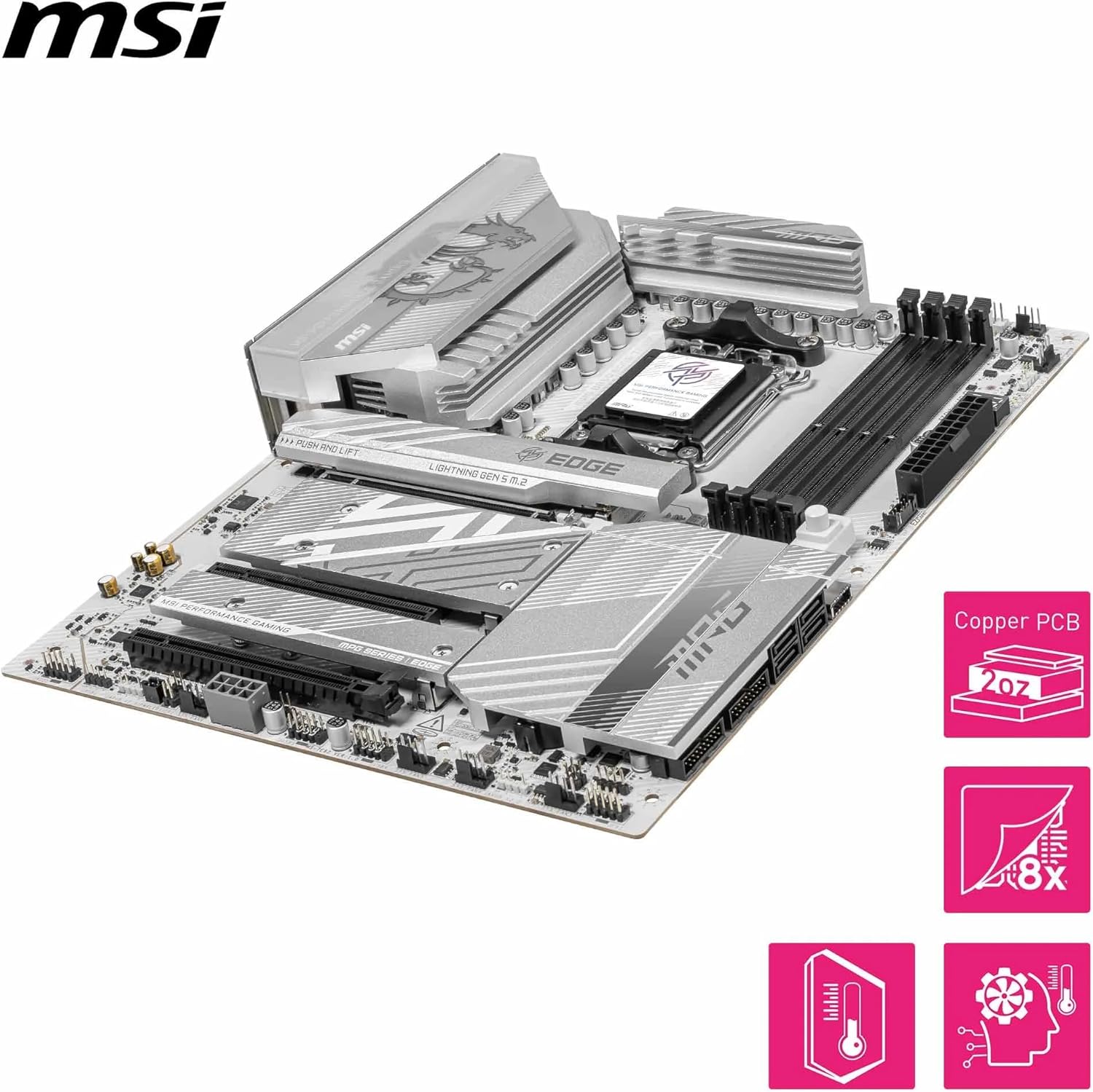

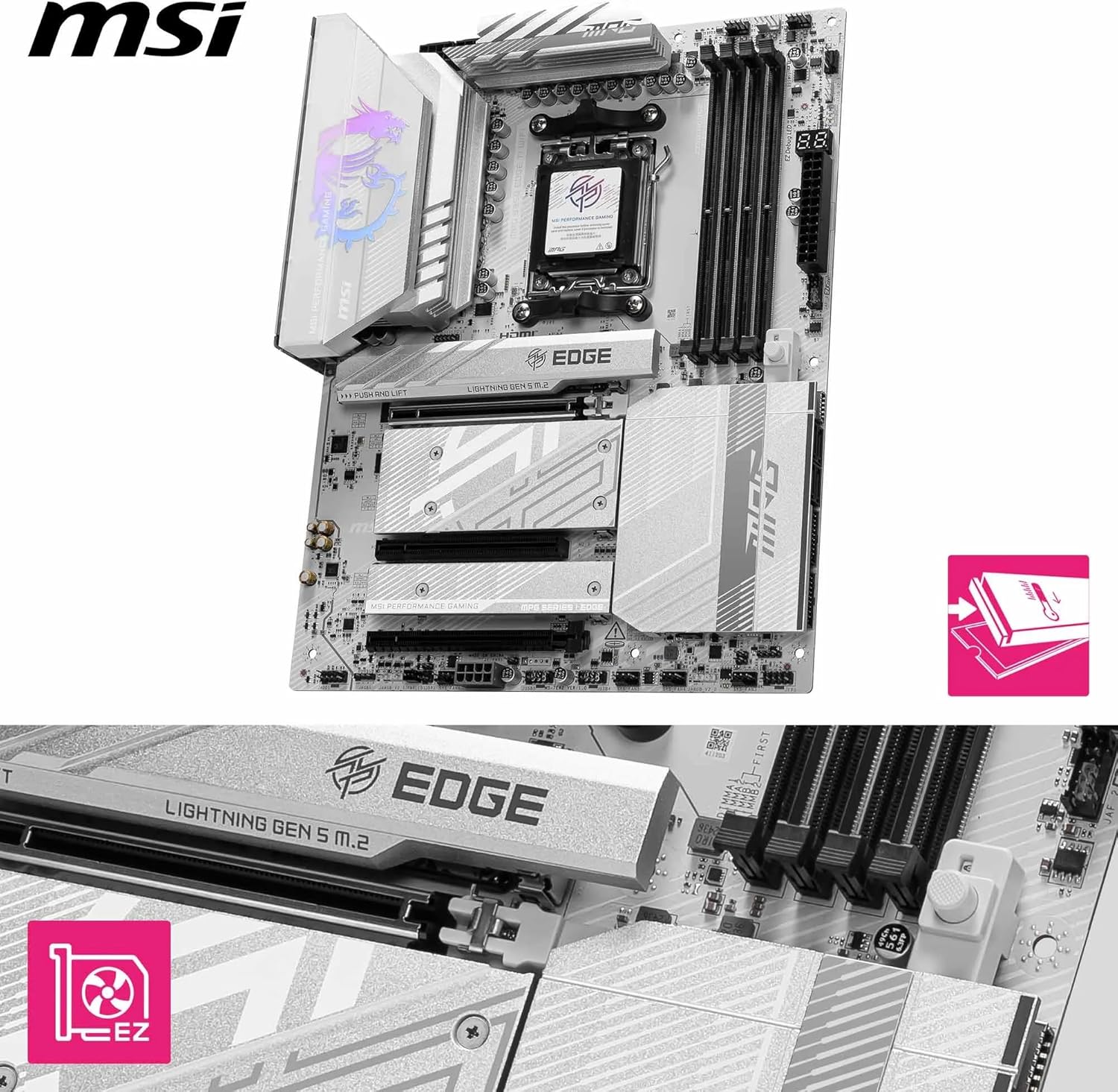

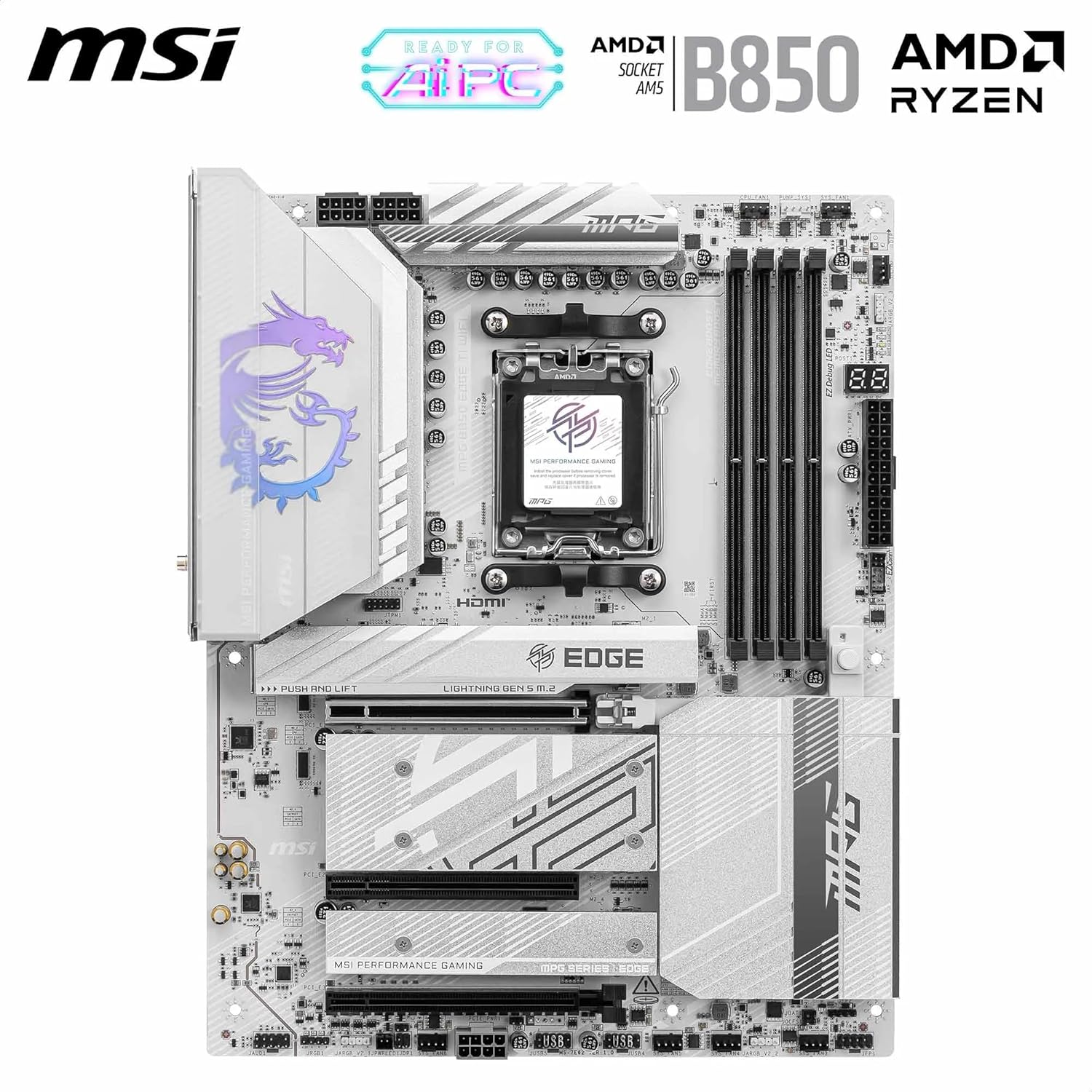

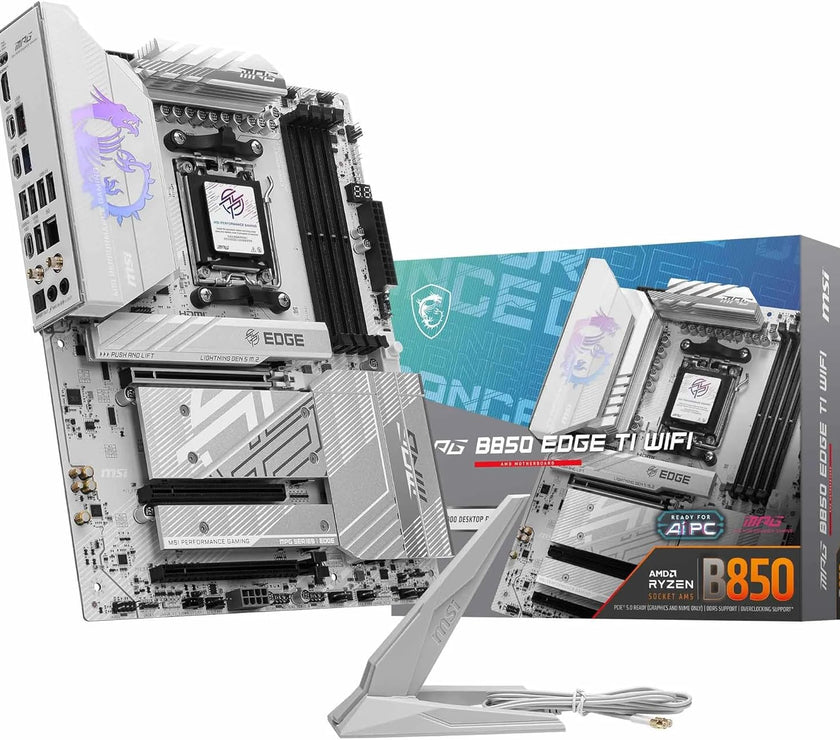

MPG B850 EDGE TI WIFI: Game In Style Designed for gaming on the AMD B850 chipset (Ryzen 9000 / 8000 / 7000 supported, AM5), the MSI MPG B850 EDGE TI WIFI motherboard includes premium GPU support with PCIe 5.0 x16 slot, improved DDR5 memory support 8400+MT/s (OC), and extensive M.2 Gen5 storage options (with Shield Frozr). To power the latest Ryzen 9000 processors, the MPG B850 EDGE TI WIFI is equipped with a 14 Duet Rail Power System (80A, SPS) VRM for the CPU and dual 8-pin CPU power connectors, augmented with multiple passive cooling features. The MPG B850 EDGE TI WIFI features a durable server-grade PCBs with 2oz of thickened copper and PCIe Steel Armor II to support the primary graphics card slot. Connectivity includes full-speed Wi-Fi 7 and Bluetooth 5.4 technology, Realtek 5G LAN , USB Type-C 20Gbps, and 7.1 USB High Performance Audio. For gamers looking for an AMD Ryzen 9000 / 8000 / 7000 platform that unites PCIe 5.0 x16 graphics card architecture, improved DDR5 support, and M.2 Gen5 storage options into one elegant design, the MSI MPG B850 EDGE TI WIFI gaming motherboard is the perfect choice.

Technical Features
  • Ultra Power: Supports AMD Ryzen 9000, 8000, and 7000 series processors on the B850 chipset (AM5) with a 14 Duet Rail Power System (80A, SPS) VRM and Core Boost architecture
  • FROZR Guard Cooling: Features 7W/mK MOSFET thermal pads, extra choke thermal pads, Extended Heatsink, chipset heatsink, EZ M.2 Shield Frozr II, and Combo-fan header (3A) for pump & system
  • DDR5 Memory & PCIe 5.0 Slots: 4 x DDR5 DIMM SMT slots supporting extreme memory overclocking (1DPC 1R, 8400+ MT/s); PCIe 5.0 x16 SMT slot (128GB/s) with Steel Armor II for high-end graphics cards

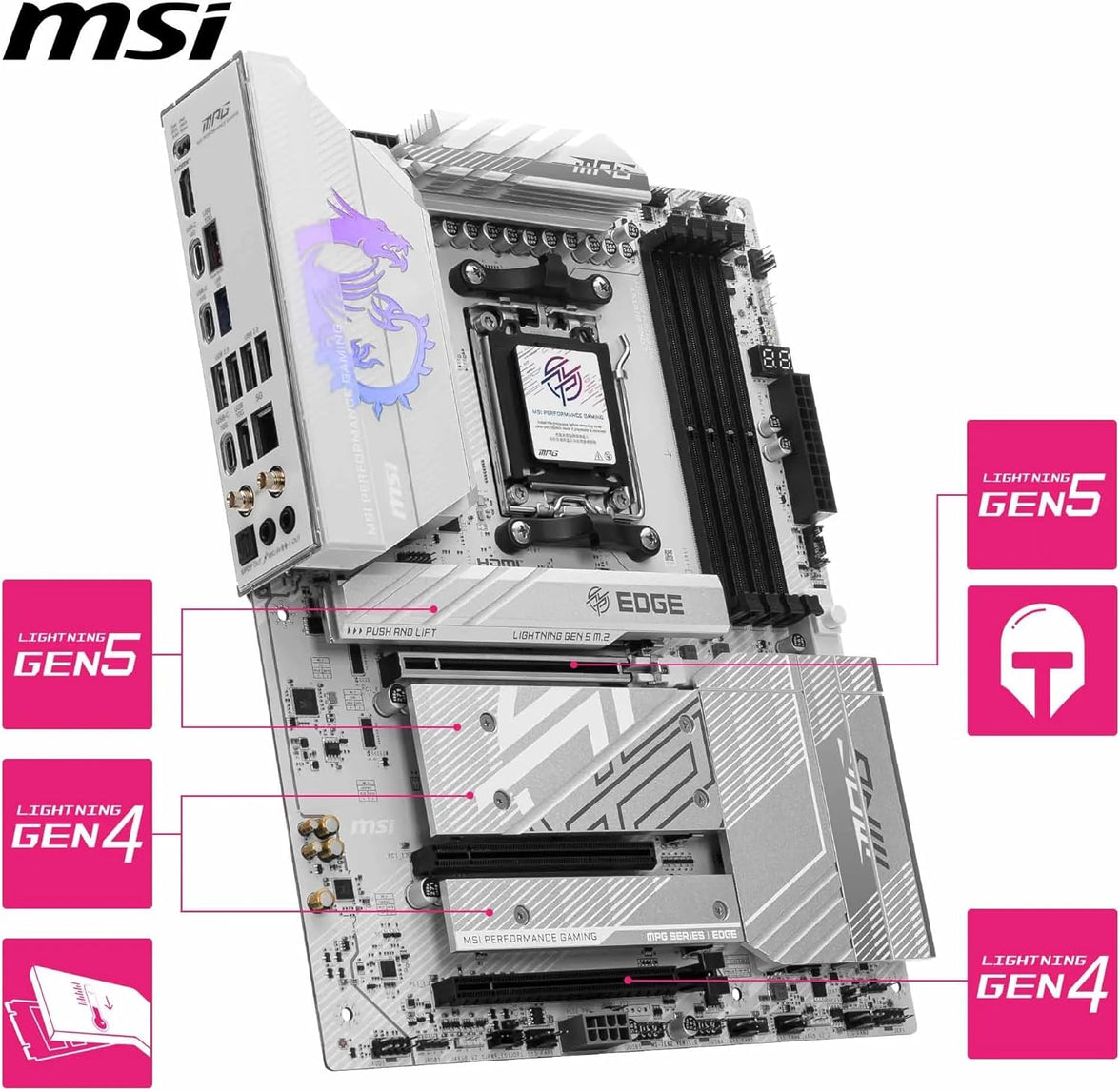

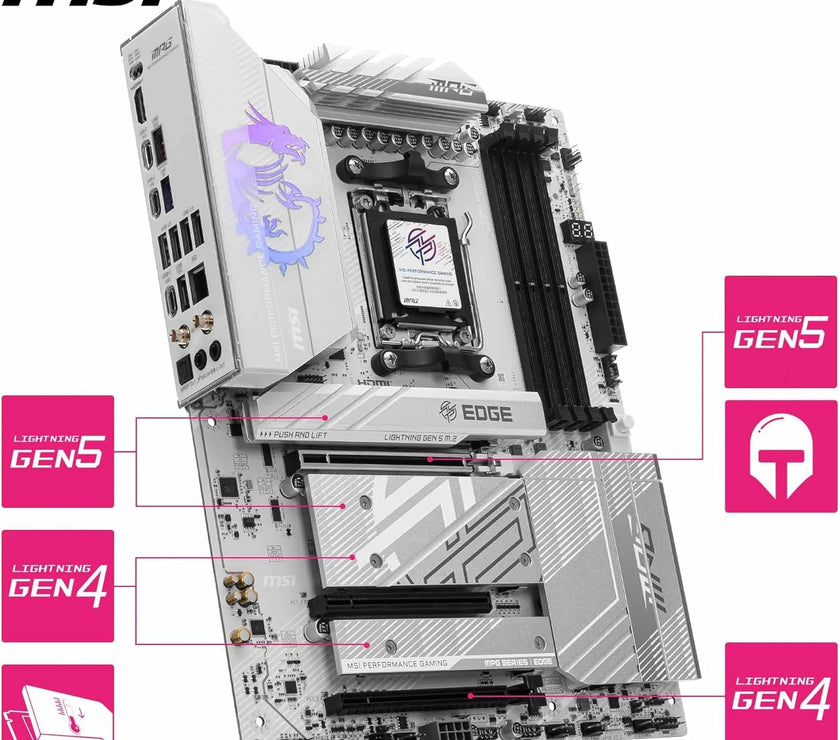

  • Quadruple M.2 Connectors: 2 x M.2 Gen5 x4 128Gbps slots, 1 x M.2 Gen4 x4 64Gbps slot, and 1 x M.2 Gen4 x2 32Gbps slot with Shield Frozr to prevent thermal throttling; Includes EZ M.2 Shield Frozr II and EZ M.2 Clip II for easy DIY installation

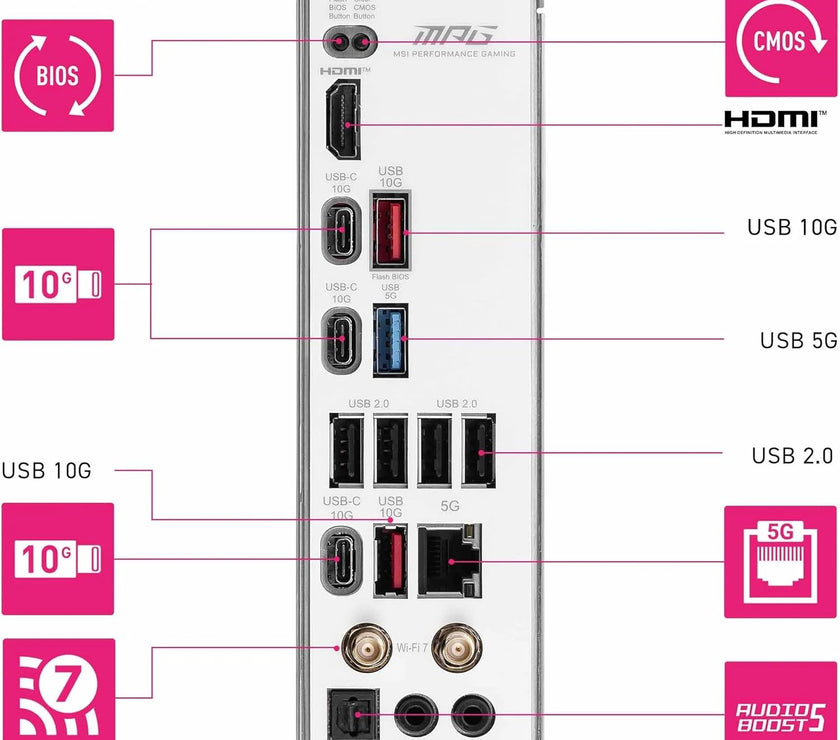

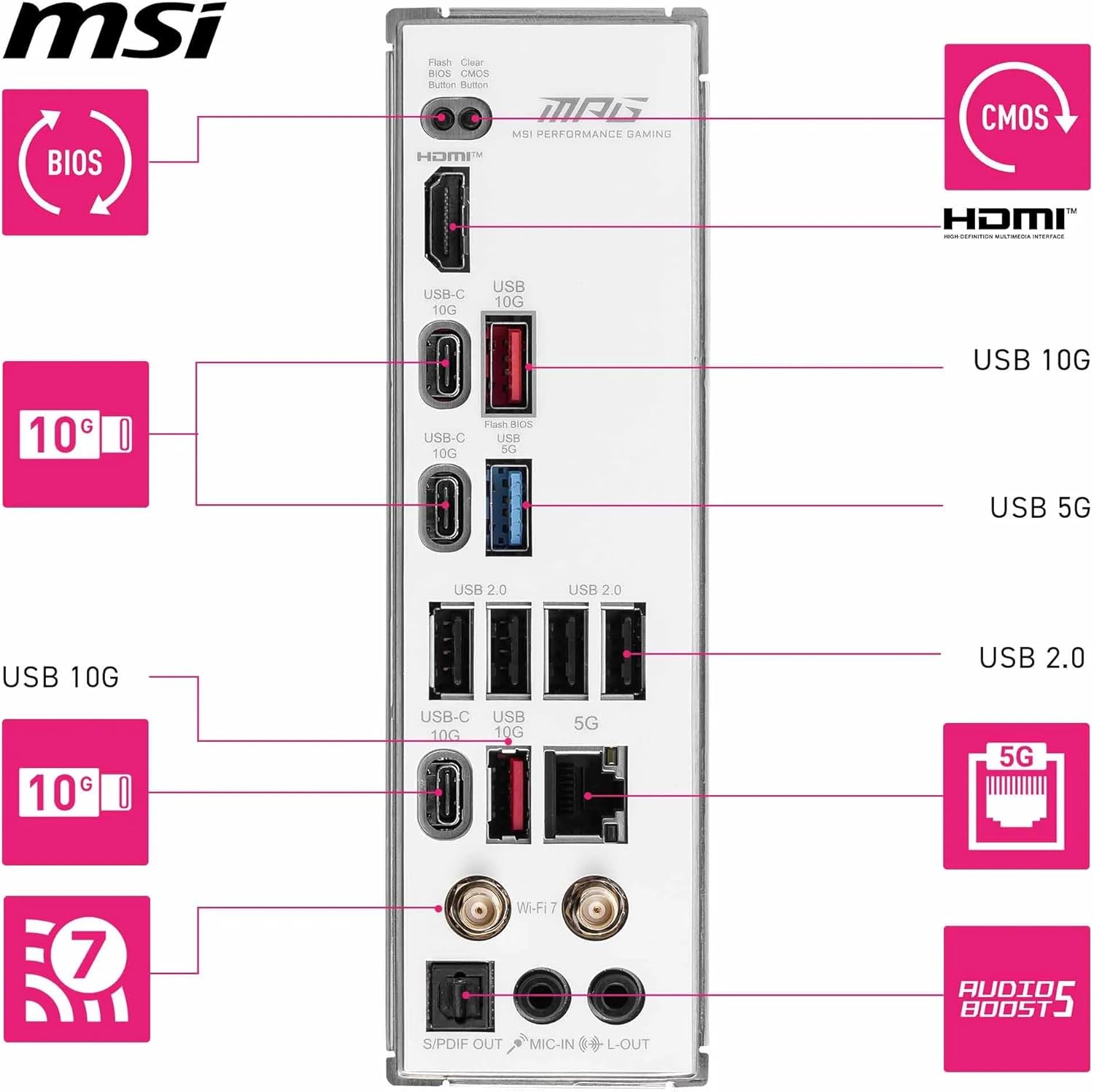

  • Connectivity: Full-speed Wi-Fi 7 module, Bluetooth 5.4, 5Gbps LAN; Rear ports include USB Front Type-C 20Gbps, 7.1 USB High Performance Audio with Audio Boost 5, and S/PDIF output support
