Startech M.2 Drive Tray For PCIe Expansion Series

Startech M.2 Drive Tray For PCIe Expansion Series

£31.13 GBP
Sale price: £31.13 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • Toolless Installation
  • Hot-Swappable
In stock, 20 units
EAN: 65030900393
SKU: 10435464
Vendor: Startech
Order within xx hours for delivery on
Quantity
  • Front Door Key Lock: Yes
  • Bus Type: PCI Express
  • Industry Standards: PCI Express 4.0
  • Number of Drives: 1
  • Drive Size: 22 mm - M.2 NVMe
  • Compatible Drive Types: M.2 (PCIe, NVMe, M-Key, NGFF)
  • Drive Installation: Removable
  • Supported Drive Heights: 2230, 2242, 2260, 2280

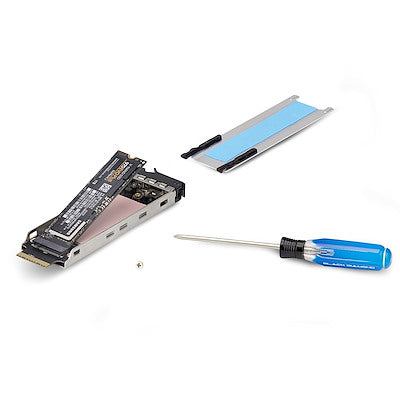

  • 1 - M.2 Drive Tray
  • 1 - Adhesive Heatsink Pad
  • 1 - Quick-Start Guide

Datasheet

Overview

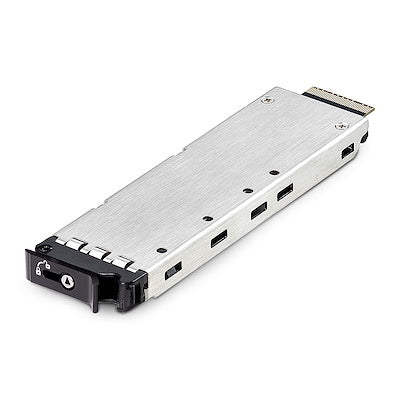

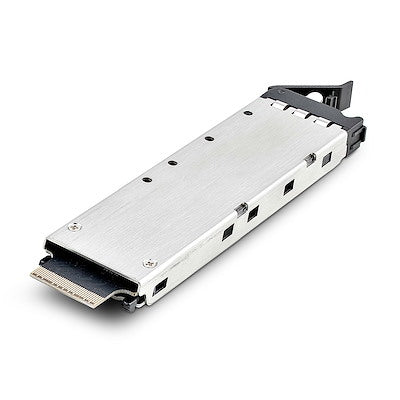

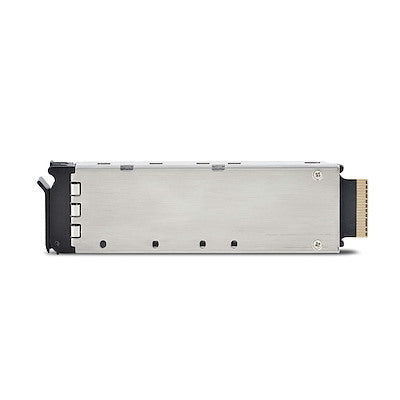

The StarTech TR-M2-REMOVABLE-PCIE is a hot-swappable drive tray for M.2 NVMe SSDs, designed to fit into StarTech's M.2 PCIe expansion backplanes (like the M2-REMOVABLE-PCIE-N1), allowing you to add or swap M.2 NVMe drives (2230, 2242, 2260, 2280 sizes) with tool-free installation, LED indicators, thermal pads for cooling, security locks, and anti-vibration features for reliable, high-speed data management.

Technical Features
  • Additional Drive Tray: Compatible with M2-REMOVABLE-PCIE-N1 or 2M2-REMOVABLE-PCIE; supports 2230, 2242, 2260, and 2280 M-Key NVMe SSDs; up to 64 Gbps read/write speeds.
  • Toolless Installation: No tools required; features Power/Activity LED, latching mechanism, and lockable tray (includes 2 keys).
  • Premium Build: Aluminum cover with thermal pads for heat dissipation; anti-vibration springs; optional mounting screw for extra stability.
  • Compatibility: OS independent (Windows, Windows Server, Linux); requires base product M2-REMOVABLE-PCIE-N1 or 2M2-REMOVABLE-PCIE; not compatible with M.2 SATA drives.
  • Hot Swap: Supports flexible hot-swapping of PCIe drives; motherboard-dependent, check manufacturer for PCIe hot swap support.
