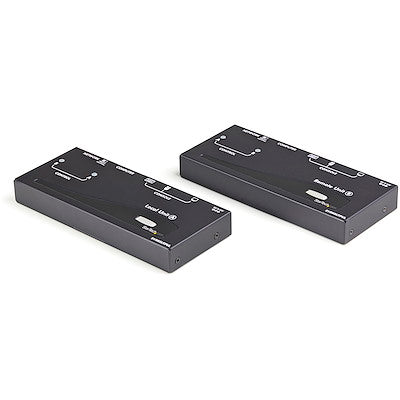

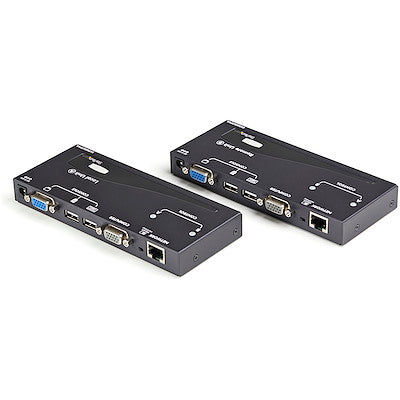

Startech Long Range USB VGA KVM Console Extender

Startech Long Range USB VGA KVM Console Extender

£332.10 GBP
Sale price: £332.10 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • Auto-switching
  • Intuitive hotkey commands
In stock, 3 units
EAN: 65030839259
SKU: 10011661
Vendor: Startech
Order within xx hours for delivery on
Quantity

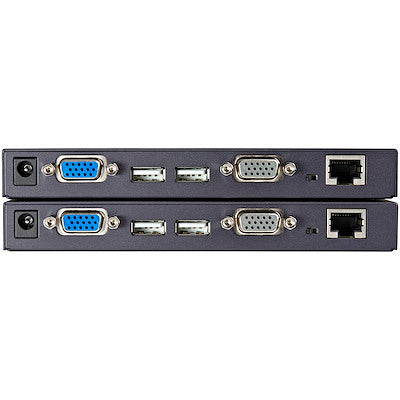

  • Console Interfaces: 2 × VGA (15 pin, High Density D-Sub), 4 × USB 2.0 Type-A (4 pin, 480Mbps)
  • Host Connectors: 2 × VGA (15 pin, High Density D-Sub)
  • Other Interfaces: 2 × RJ-45
  • Operating Temperature: 0°C to 40°C (32°F to 104°F)
  • Storage Temperature: -20°C to 60°C (-4°F to 140°F)
  • Humidity: 0~80% RH
  • Audio: No
  • KVM Ports: 2
  • PC Interface: USB
  • PC Video Type: VGA

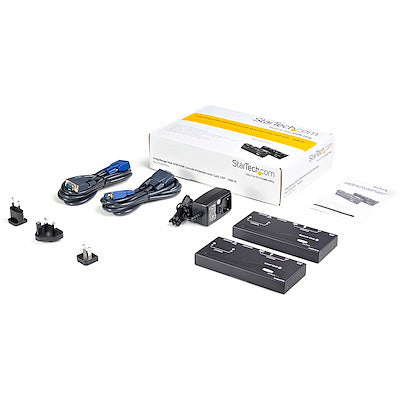

  • 2 - KVM Extenders (1x Local, 1x Remote)
  • 2 - 2n1 USB VGA KVM Cables
  • 1 - Rubber Feet
  • 1 - Universal power adapter
  • 1 - User Manual

Datasheet

Overview

The SV565UTPUL Long Range USB VGA KVM Console Extender over Cat5 UTP (1000 ft) lets you control a server, computer or multiple computers (connected through KVM Switch) over a standard Cat5 or Cat6 UTP network cable connection, at distances of up to 1000ft (300m) away. You can use your existing USB keyboard, USB mouse, and monitor to access both the server room and your office computer, saving space and avoiding the need for a dedicated remote console by allowing you to switch between workstation view and KVM view at the remote location.

Technical Features
  • High Resolution Support: Up to 1920x1200 (WUXGA) / 1600x1200 (UXGA)
  • Included Units: Kit includes both local and remote units
  • Compatibility Mode: Hotkey commands passed to connected StarView KVMs
  • Max Resolution Limit: Prevents settings from exceeding display capability
  • USB Support: USB computers supported at host and remote locations (USB keyboard/mouse required for remote console)
  • User Switching: Auto-switching between host and remote users or dedicated control
  • Cabling: Compatible with CAT 5, 5e, or 6 UTP
  • Hotkey Commands: Intuitive commands for operation
  • Video Adjustments: Hotkey-controlled Equalizer (sharpness), Gain (brightness), and RGB Skew
  • Peripheral Support: Most combo keyboard and mouse sets, including wireless; PS/2 and USB host PCs supported with appropriate cables
