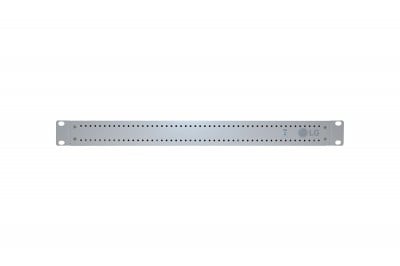

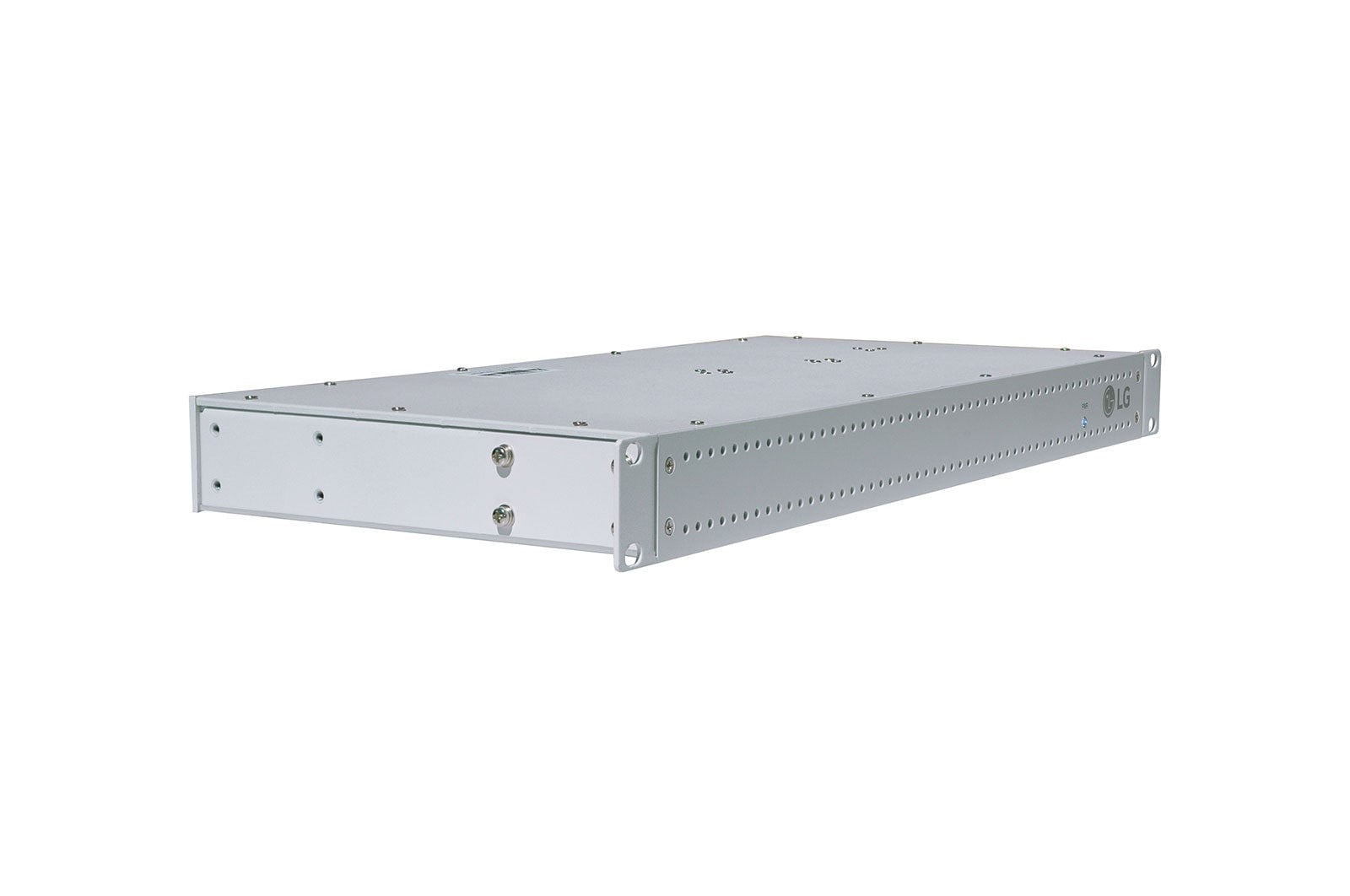

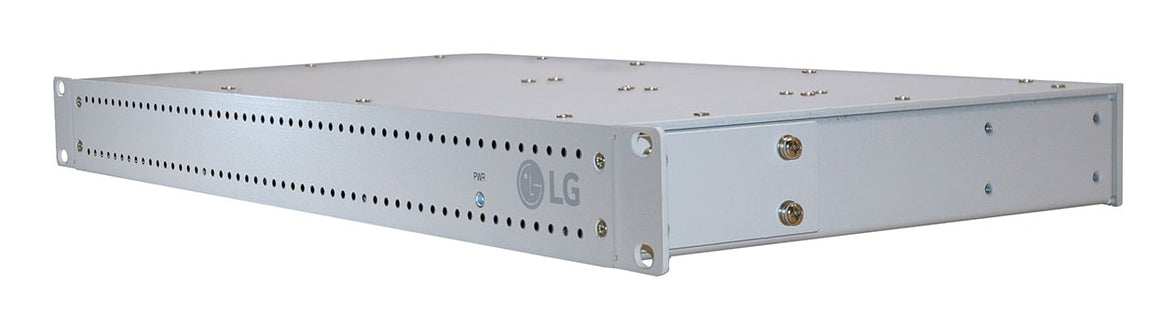

LG PCS500R video servers/encoder

LG PCS500R video servers/encoder

£2,494.02 GBP
Sale price: £2,494.02 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • Compact 1U rack-mountable chassis
  • Simple setup using existing RF/IP network
In stock, 1 unit
EAN: 8806091562739
SKU: PCS500R.AEK
Vendor: LG
Order within xx hours for delivery on
Quantity
  • Model: PCS500R
  • Operating System: Linux OS with PCA (Java) and PCD (HTML) server applications
  • Processor & Memory: Intel i3-6100U, 16GB RAM, 128GB SSD (expandable)
  • Connectivity: RF, Dual Ethernet (100/1000BaseT), USB 3.0, TTL serial port
  • Power: +19V DC @ 2.2A adapter
  • RF Output: Up to 8 channels, 54–865 MHz, 64/256-QAM modulation
  • Standards Supported: QAM-B, DVB-C, ISDB-T
  • Operating Temp: 32°–104°F, 95% humidity (non-condensing)
  • Certifications: FCC, UL, RoHS
  • Dimensions: 19.0” × 1.7” × 8.5”
  • Weight: 5.65 lbs
  • Server hardware
  • A power adapter
  • Quick installation guide

Datasheet

Overview

LG's PCS500R Pro:Centric ® Server is the latest generation controller for the Pro:Centric system, offering a faster 64-bit Intel i3 processor with improved memory and storage capacity. The server enables system providers to create and remotely manage application content for LG commercial TVs over RF or IP distribution networks, using either the Pro:Centric Java Application (PCA) or the Pro:Centric Direct (PCD) HTML Application.

Technical Features
  • Installation: Simple setup using existing RF/IP network and internet connection
  • Design: Compact 1U rack-mountable chassis
  • Reliability: No moving parts with solid-state memory for high durability
  • Remote Management: Configure and maintain via VPN server
  • Software Support: Compatible with LG Pro:Centric Direct (HTML5 CMS) for customizable UI and hotel branding
