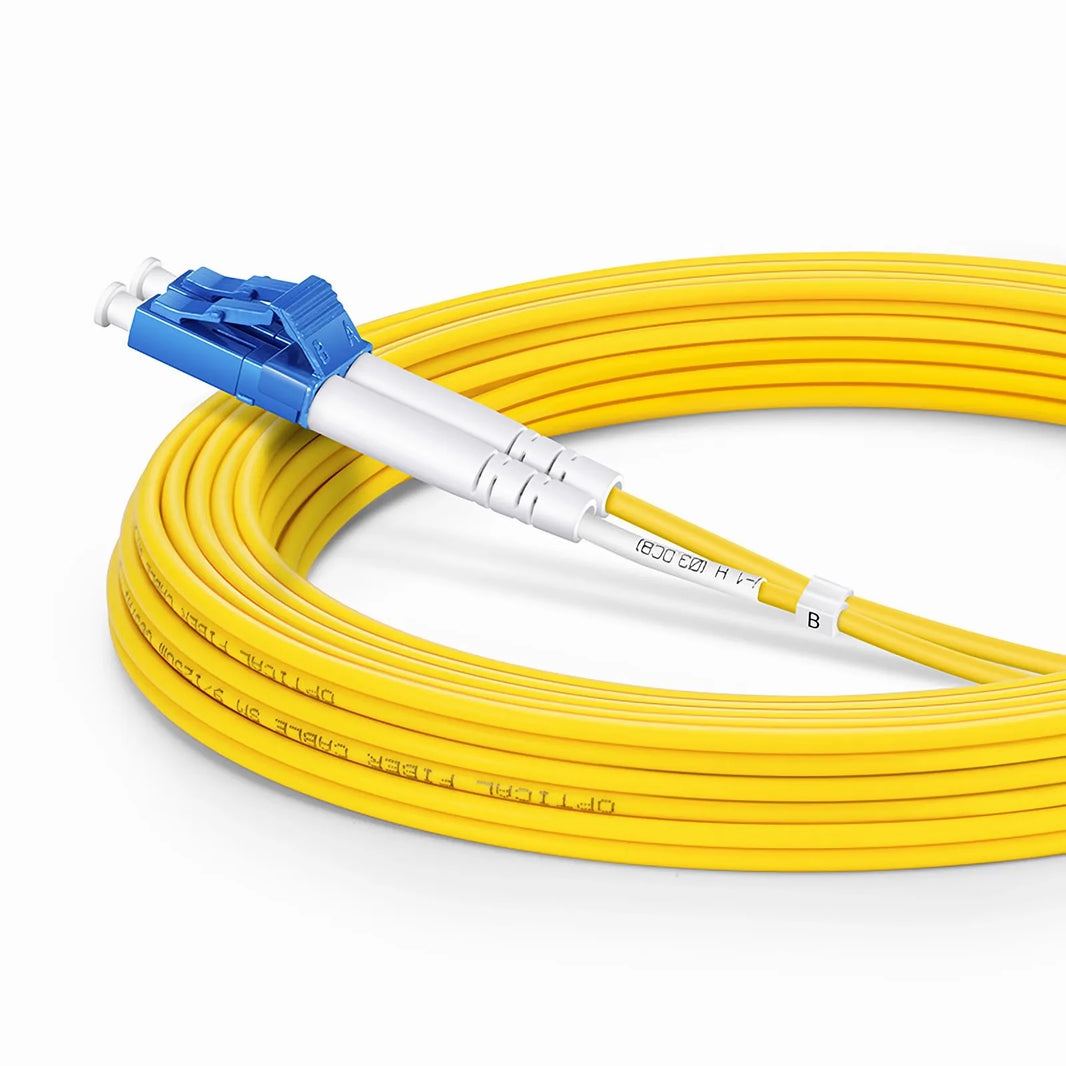

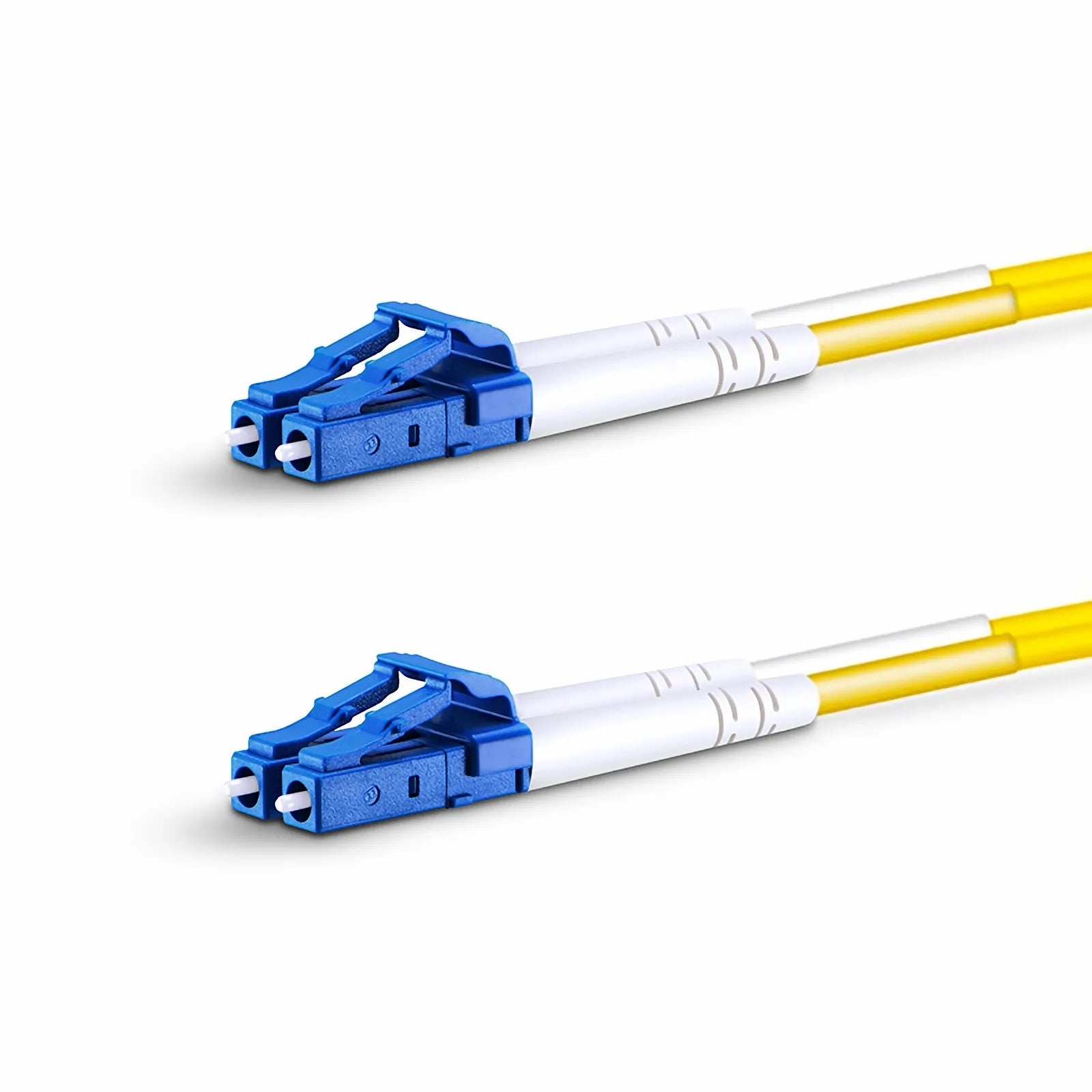

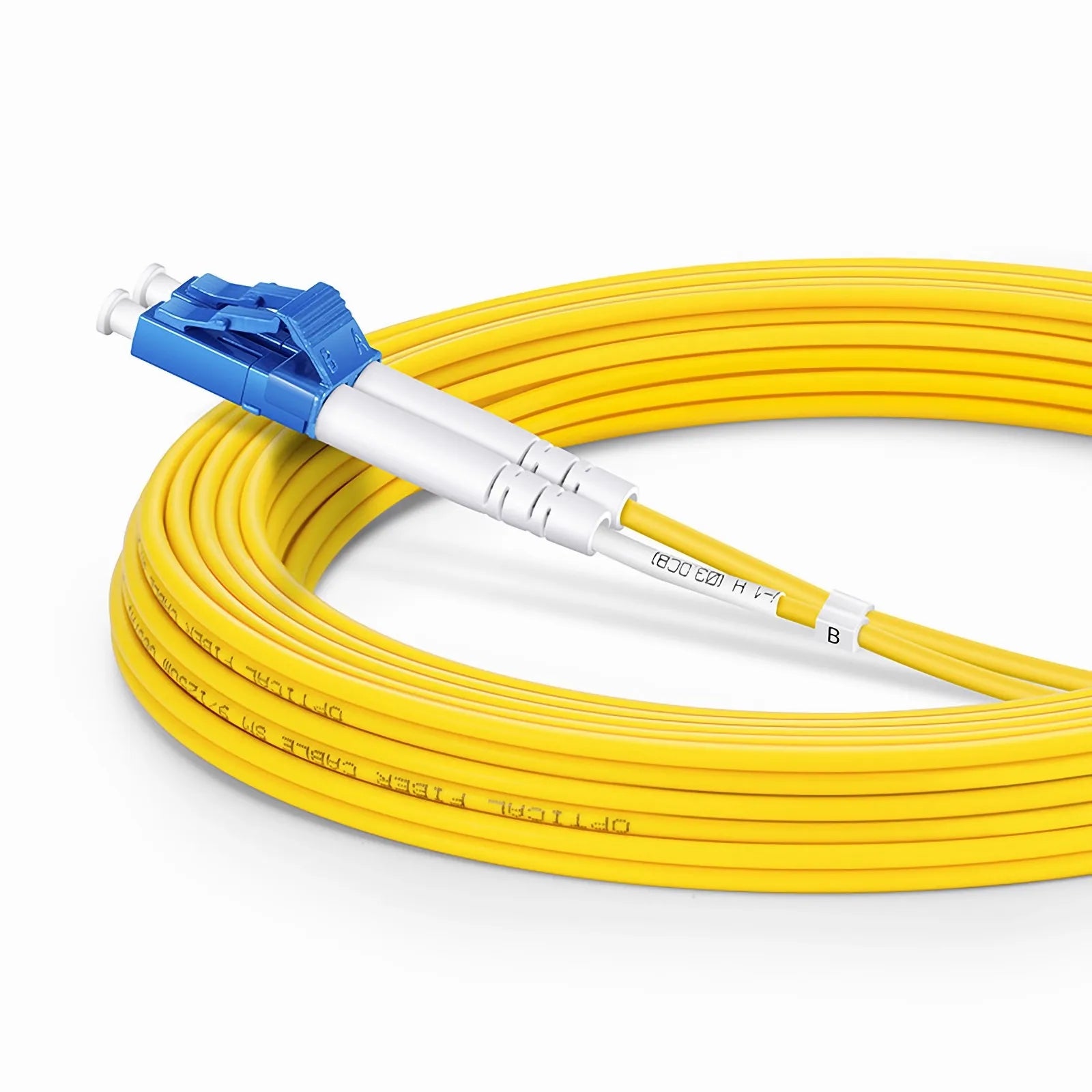

EXC Fiber Duplex Patch cord OS2 9/125 LSZH ST/LC- 8 m

Fiber patch cables provide interconnect and cross-connect of applications over installations in entrance facilities, telecommunications rooms, data centres, and at the desk. This OS2 fibre patch cable is ideal for connecting 1G/10G/25G/40G/100G/400G Ethernet connections. It is best suited for long distance application and can transport data for up to 10km at 1310nm, or up to 40km at 1550nm. The bend insensitive fibre patch cable has less attenuation when bent or twisted compared with traditional fibre patch cable and this will make the installation and maintenance more efficient.

• Fiber Type: OS2 single-mode (9/125 µm), ideal for long-distance applications
• Connectors: LC on one end, ST on the other with zirconia ferrules for low insertion loss
• Jacket Material: LSZH (Low-Smoke, Zero-Halogen) for safe indoor use
• Transmission Speeds/Distances: Supports 1G/10G/40G/100G/400G Ethernet, up to 10 km @ 1310nm, 40 km @ 1550nm
• Bend Insensitivity: G.657.A1 compliant, minimum bend radius 10 mm
• Duplex Design: Two fibers in a single jacket for bi-directional communication
• Color-Coded: Yellow jacket, standard for single-mode fiber
• Compliance: Meets TIA/EIA-604, ITU-652.D, IEC-61754, and RoHS standards
