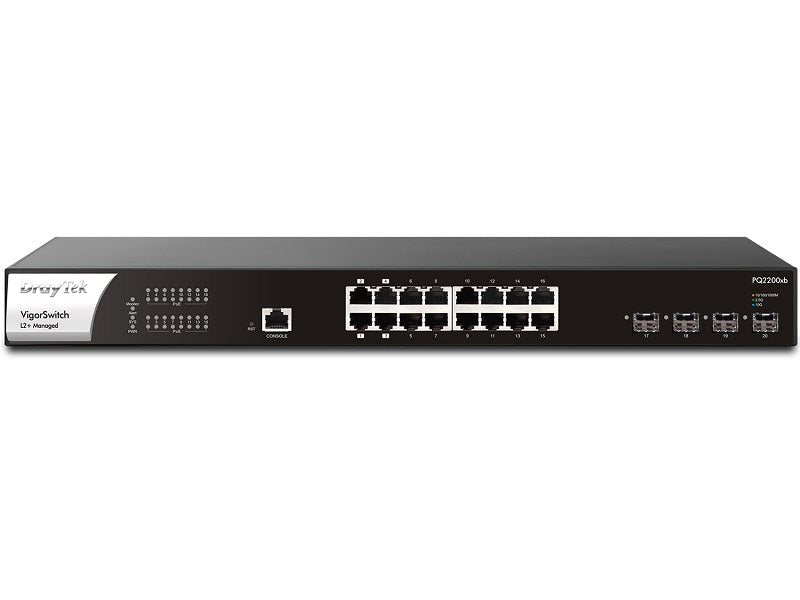

DrayTek VigorSwitch PQ2200XB

The DrayTek VigorSwitch PQ2200XB is a high-performance managed switch designed for advanced network environments. It offers robust PoE+ capabilities, enabling efficient power delivery to connected devices such as IP cameras and wireless access points. With comprehensive management features, including VLAN support, QoS, and security controls, it ensures optimized traffic flow and network reliability. Ideal for professional setups, this switch combines flexibility and control to meet demanding networking requirements.

• PoE++ (802.3bt)
  • Deliver up to 90W over one Ethernet cable.
  • Turn on/off the PoE device periodically with PoE Schedule.
• Quality of Service (QoS)
  • Improve the performance of critical traffic by prioritizing traffic with CoS, DSCP, and IP Precedence tag.
• Ping Device Check
  • Enable Ping check to selected devices to monitor their status.
  • If ping times out, power cycle (if PoE enabled) the port and/or send a mail alert.
• ONVIF CCTV
  • Recognize ONVIF devices and display surveillance topology.
  • Provide UI for video streaming and device maintenance.
• 2.5GbE
  • Provides higher performance to WiFi 6 AP and other Ethernet devices.
• IPv6 Ready
  • Supports IPv6 with MLD Snooping, IPv6 ACL, and IPv6 DNS Resolver.
• 10G SFP+
  • Provides 10G-capable fiber SFP+ ports for aggregation or uplinking to core switches.
• Graphic User Interface
  • Easily manage and monitor the network through a web-based console.
  • View graphics showing ports and hardware status.
• Wire-Speed VLAN Routing
  • Route inter-VLAN traffic directly with VigorSwitch PQ2200xb.
  • Improve overall network performance and offload the router.
• Multiple Admin Accounts
  • Create multiple admin accounts.
  • Two levels of administrator privilege available.
• Auto Surveillance & Voice VLAN
  • Automatically recognize traffic from IP cameras and IP phones.
  • Add CoS tag for QoS prioritization.
• Central Switch Management
  • Set up VLAN easily from the router.
  • Get a centralized hierarchical view of the switches.
• IP Conflict Prevention
  • Improve network stability.
  • Prevent IP conflicts from misconfigured or malicious hosts.
