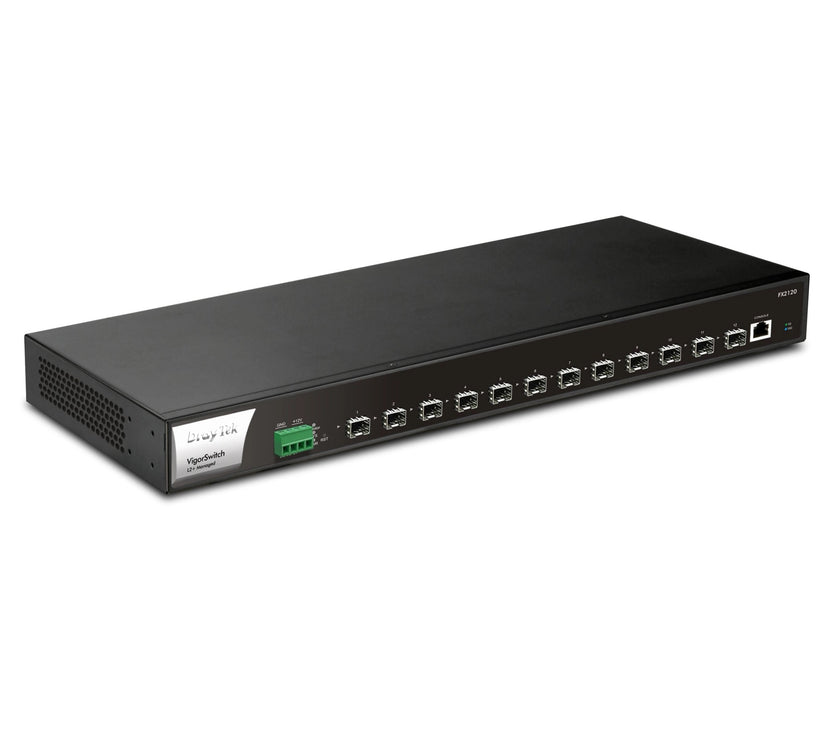

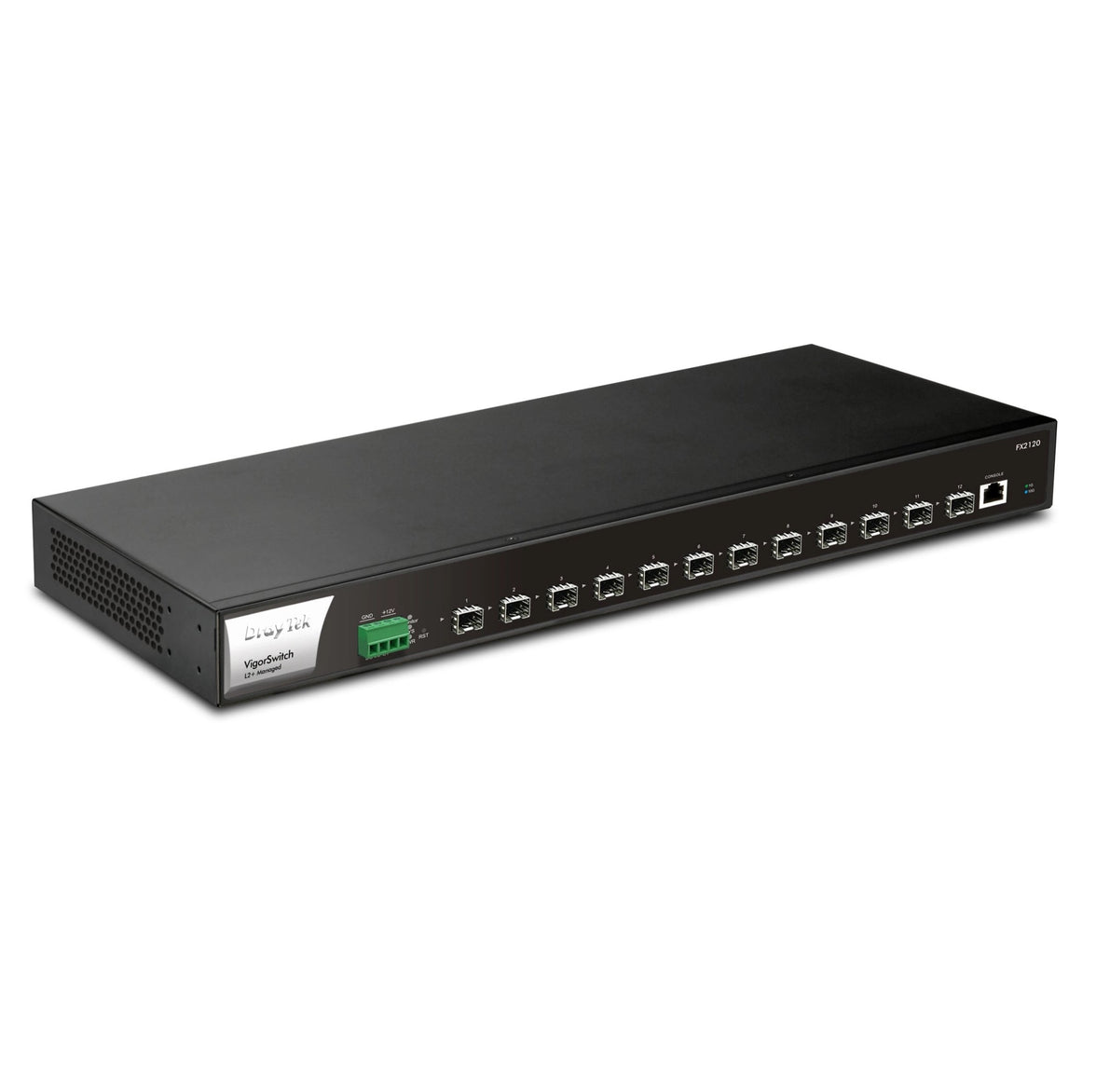

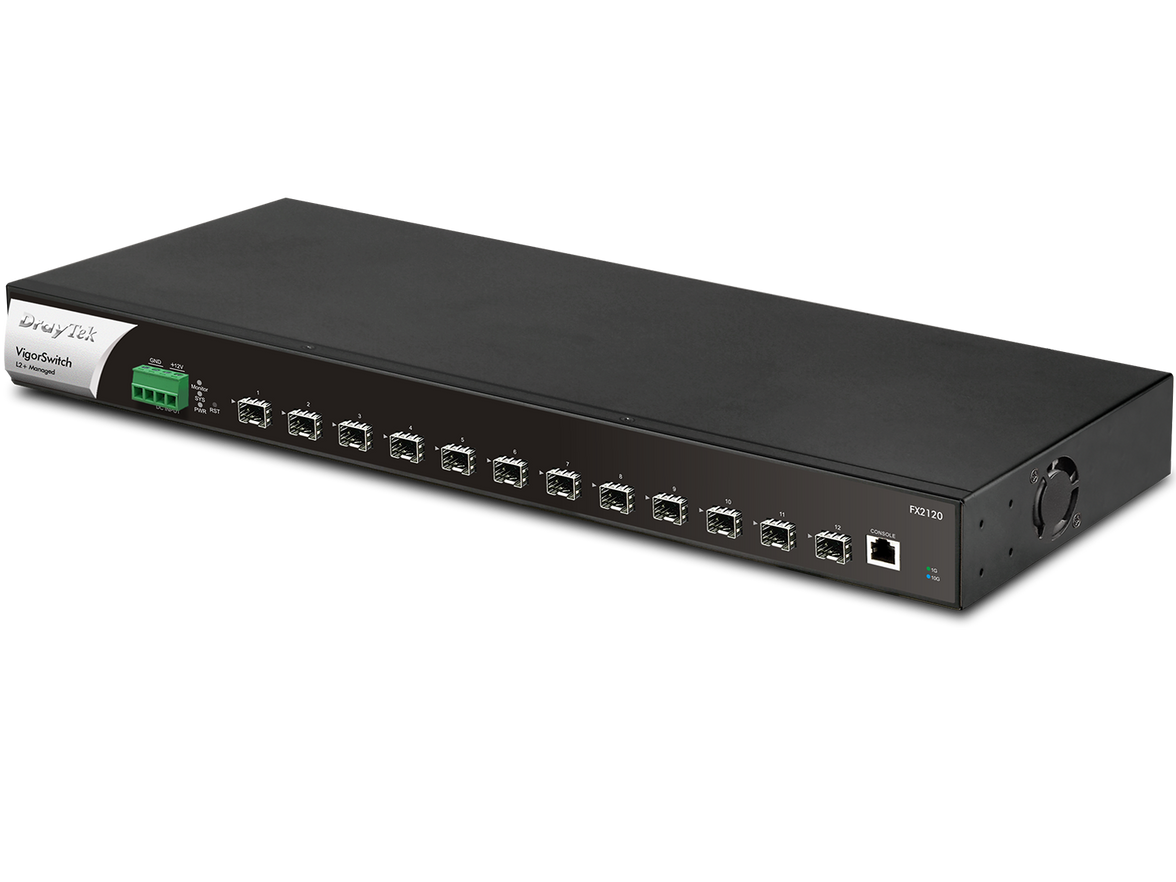

DrayTek VigorSwitch FX2120

DrayTek VigorSwitch FX2120

£389.76 GBP
Sale price: £389.76 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • 240 Gbps Switching Capacity
  • Up to 8 Link Aggregation Groups
In stock, 8 units
EAN: 4710484744784
SKU: 277072
Vendor: Dray Tek
Order within xx hours for delivery on
Quantity
  • Rack Mountable: 1U
  • Power Input: AC 100-240V @ 2A
  • Backup Power Input: DC +12V
  • Max. Power Consumption (watts): 28.9
  • Dimension (mm): 441 x 197 x 44
  • Weight (kg): 2.67
  • Operating Temperature: 0 to 50°C
  • Storage Temperature: -20 to 70°C
  • Operating Humidity (non-condensing): 10 to 90%
  • Storage Humidity (non-condensing): 5 to 90%
  • VigorSwitch FX2120
  • Rack Mount Kit
  • DAC Cable
  • Power Cord
  • Quick Start Guide

Datasheet

Overview

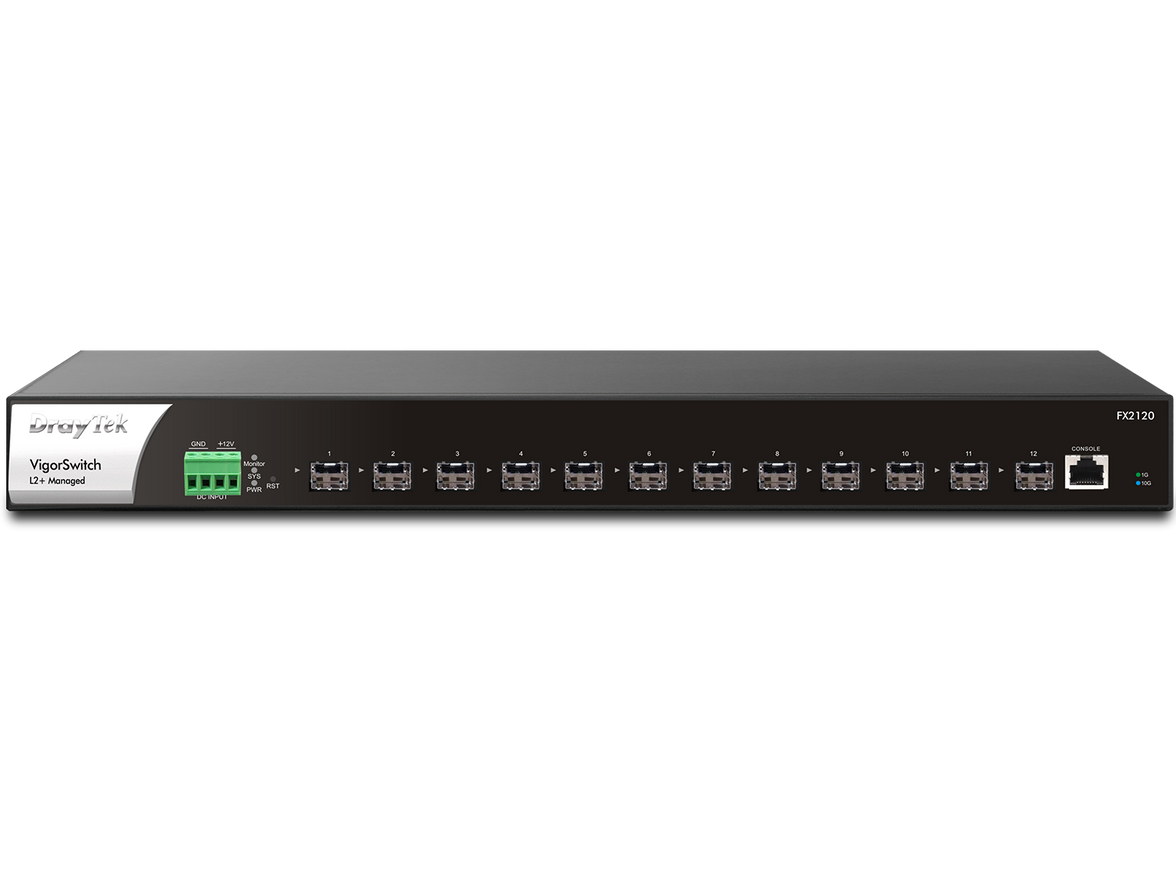

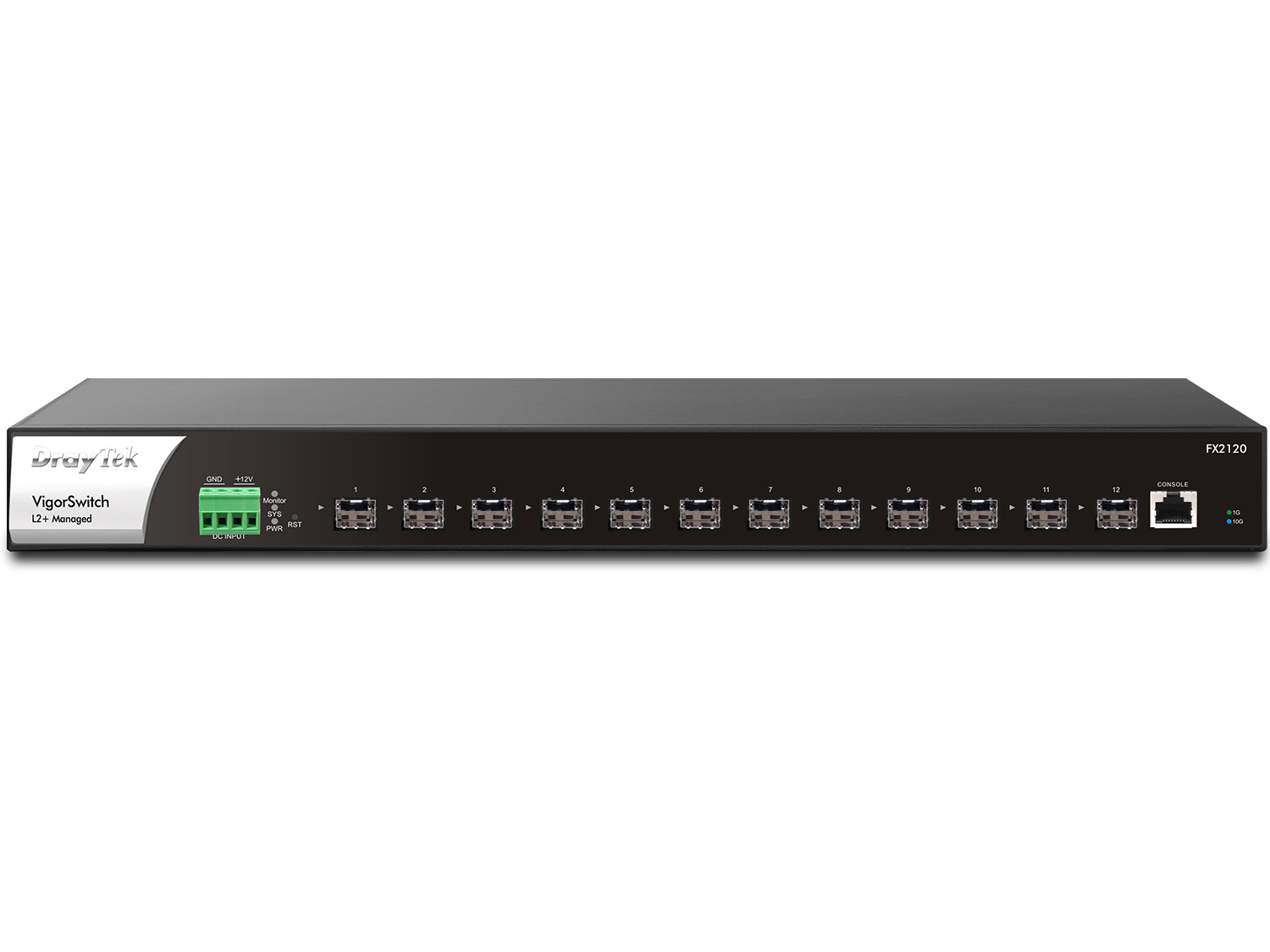

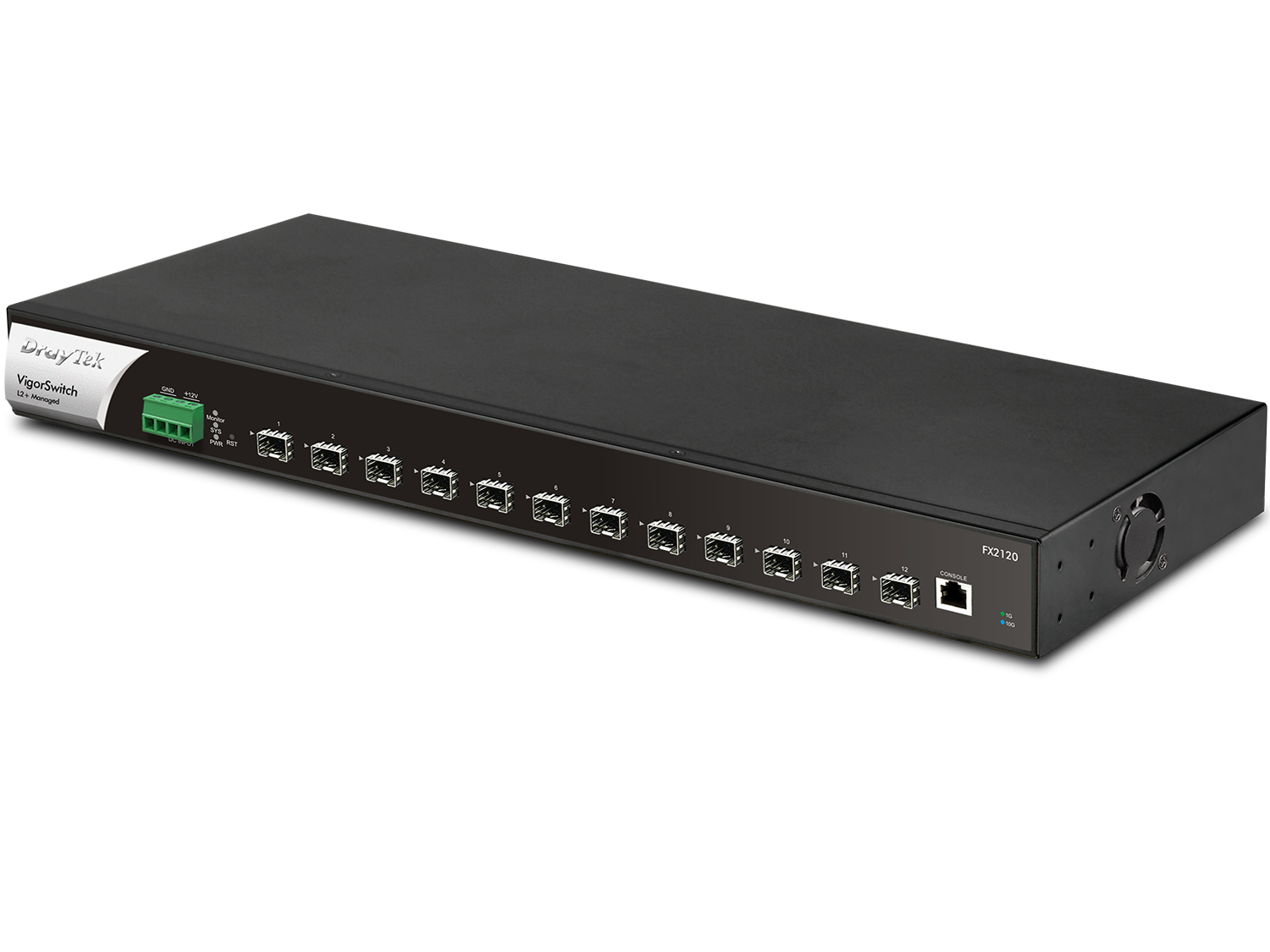

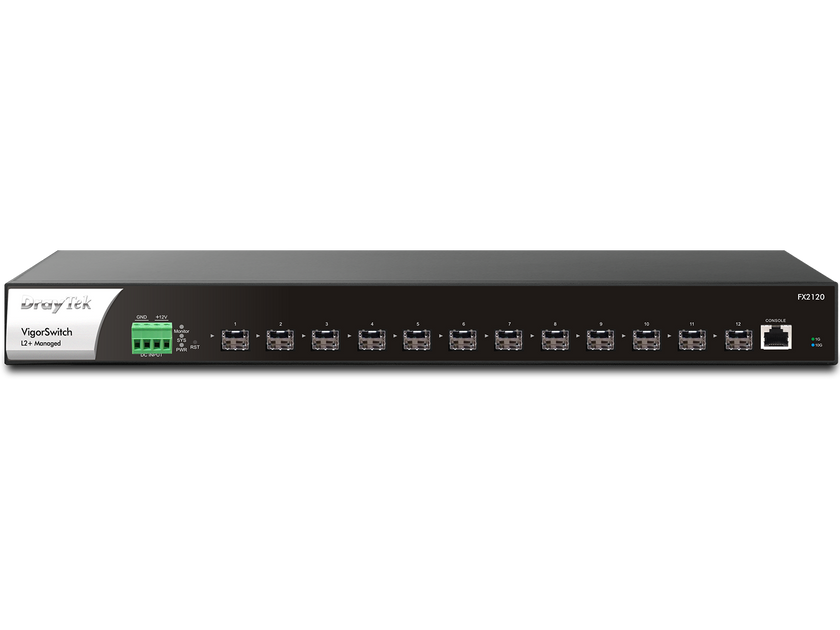

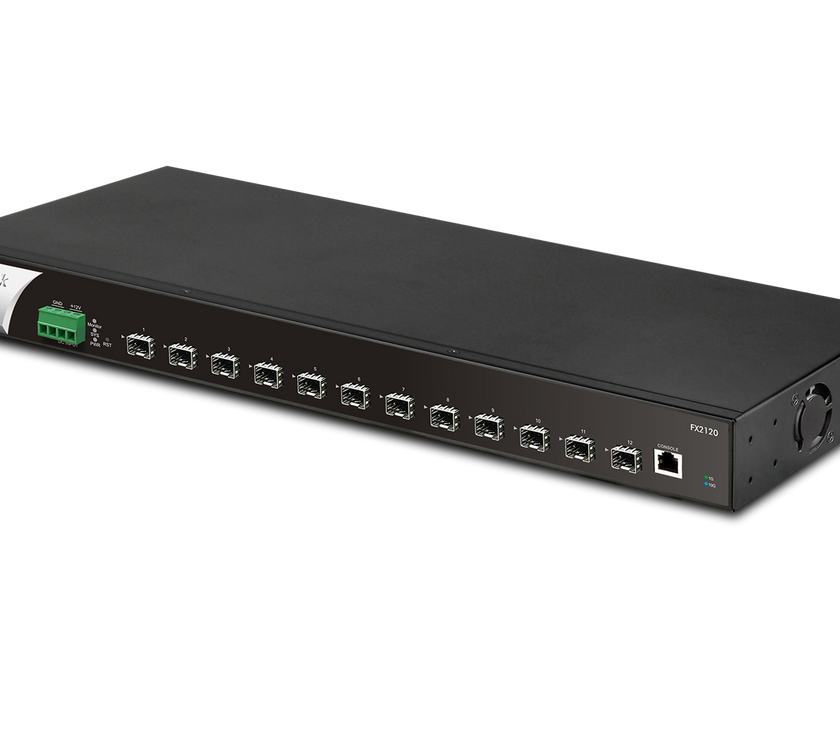

DrayTek VigorSwitch FX2120 is a full 10 Gigabit switch with 12x SFP+ ports for uplink/downlink and 1x console port. It is well-suited for ISP and enterprise network with intensive data transmission.

Technical Features
  • Auto Surveillance & Voice VLAN: Recognize traffic from IP cameras and IP phones automatically and add CoS tags for QoS prioritization.
  • 10G SFP+: Provides 10G-capable fiber SFP+ ports for aggregation or uplinking to the core switches.
  • ONVIF-Friendly: Recognize ONVIF devices, display surveillance topology, and provide UI for video streaming and device maintenance. Learn more.
  • IPv6 Ready: Supports IPv6 with MLD Snooping, IPv6 ACL, and IPv6 DNS Resolver.
  • Wire-Speed VLAN Routing: Improve overall network performance by using VigorSwitch FX2120 to route inter-VLAN traffic directly and offload the router.
  • Web-Based GUI: Easily manage and monitor the network through a web-based console with graphical views of ports and hardware status. See demo.
  • IP Conflict Prevention: Improve network stability by avoiding IP conflicts caused by misconfigured or malicious hosts. Learn more.
  • Multiple Admin Accounts: Supports multiple administrator accounts with two levels of privilege.
  • Access Control: Supports ACL by IP/MAC and 802.1x port access control with RADIUS to filter unauthorized hosts.
  • Central Switch Management: Set up VLANs easily from the router and get a centralized hierarchical view of the switches. Learn more.
  • QoS (Quality of Service): Prioritize critical traffic using CoS, DSCP, and IP Precedence tags to improve performance.
  • Energy-Efficient Ethernet: Compliant with IEEE 802.3az to reduce power consumption.
