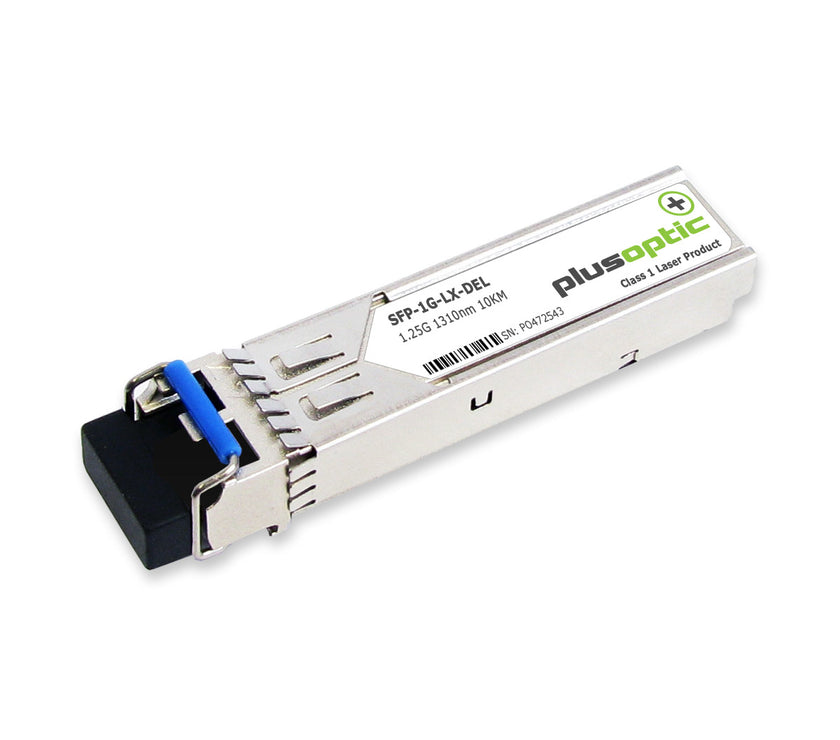

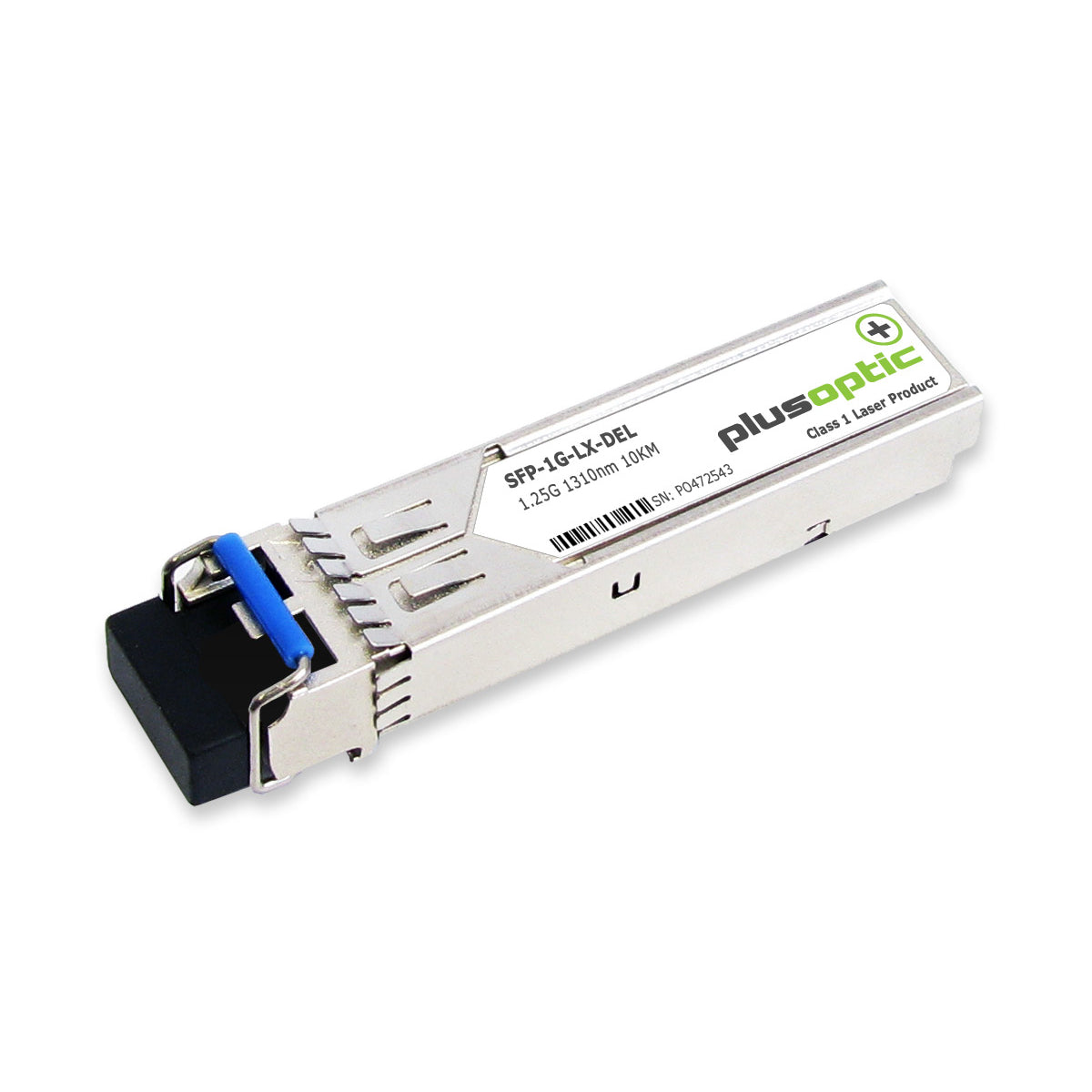

Dell compatible (320-2879 407-10436 790-10071) 1.25G SFP 1310nm 10KM Transceiver LC Connector for SMF with DOM

Dell compatible (320-2879 407-10436 790-10071) 1.25G SFP 1310nm 10KM Transceiver LC Connector for SMF with DOM

£24.52 GBP
Sale price: £24.52 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • Power Consumption & Efficiency
  • Build Quality & Reliability
  • Use Cases & Ideal Applications
In stock, 5 units
EAN: 9350888069912
SKU: 10285622
Vendor: PlusOptic
Order within xx hours for delivery on
Quantity
  • SKU: SFP-1G-LX-DEL
  • Weight: 0.050000
  • Brand: Plusoptic
  • Manufacturer Part#: SFP-1G-LX-DEL
  • GTIN: 9350888069912
  • Compatible Brand: Dell
  • Device Type: SFP
  • Transmission Mode: SM
  • Max Distance: 10km
  • Wave Length: 1310nm
  • Max Data Rate: 1G
  • Terminations: LC
  • Package: If out of stock, order for quick in house configuration
  • Warranty: 3 Years
  • Switch to Switch Interface
  • Gigabit Ethernet
  • Switched Backplane Applications
  • Router/Server Interface
  • Other Optical Links

Datasheet

Overview

These Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). The transceiver consists of five sections: the LD driver, the limiting amplifier, the digital diagnostic monitor, the FP laser and the PIN photo-detector. The module data link up to 10KM in 9/125um single mode fibre.The optical output can be disabled by a TTL logic high-level input of Tx Disable, and the system also can disable the module via I2C. Tx Fault is provided to indicate that degradation of the laser. Loss of signal (LOS) output is provided to indicate the loss of an input optical signal of receiver or the link status with partner. The system can also get the LOS (or Link)/Disable/Fault information via I2C register access.

Technical Features
  • Data Rate: Up to 1.25Gb/s data links
  • Optical Components: FP laser transmitter and PIN photo-detector
  • Transmission Distance: Up to 10km over 9/125µm single-mode fiber (SMF)
  • Form Factor: Hot-pluggable SFP module
  • Connector Type: Duplex LC/UPC optical interface
  • Power Consumption: Low power dissipation
  • Build: Metal enclosure for reduced EMI
  • Compliance: RoHS compliant and lead-free
  • Monitoring: Supports Digital Diagnostic Monitoring (DDM)
  • Power Supply: Single +3.3V power source
  • Standards: Compliant with SFF-8472
  • Operating Temperature: Standard case operating temperature range
