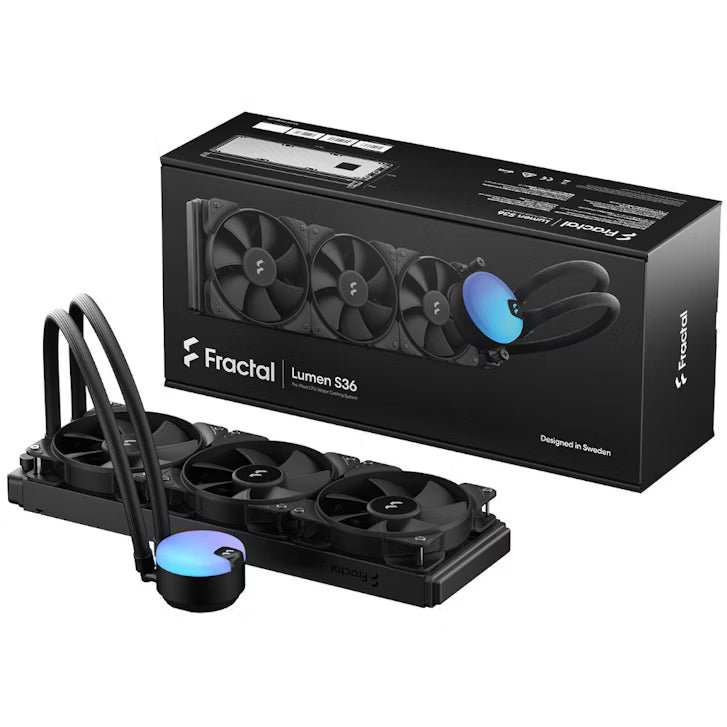

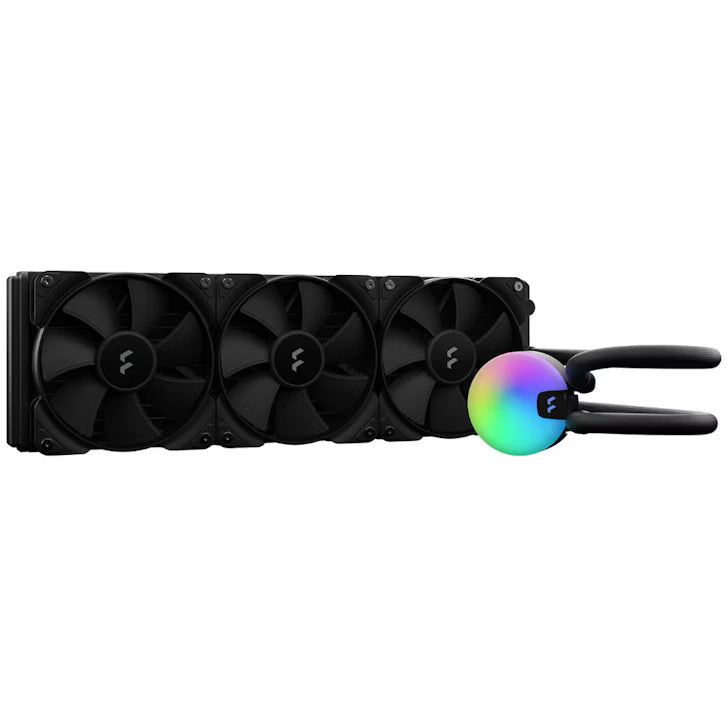

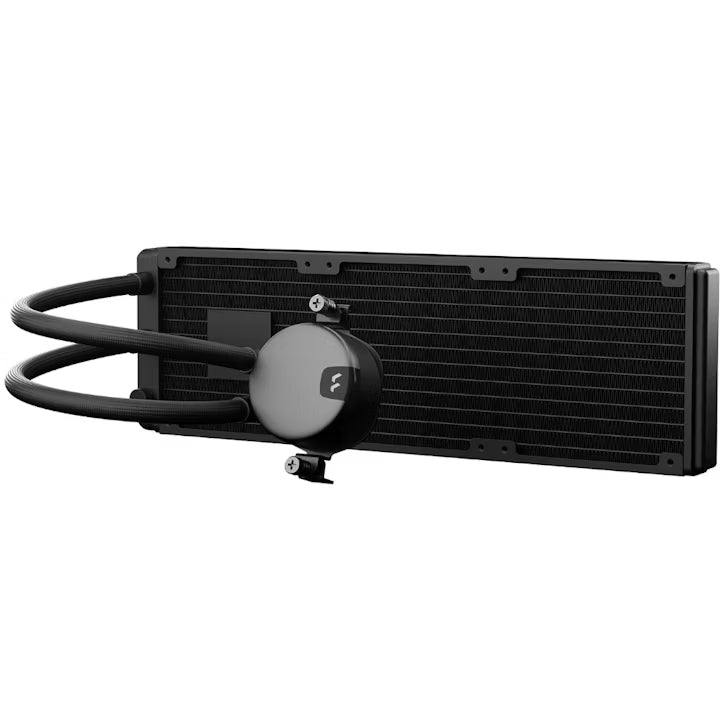

COOL Lumen S36 v2

COOL Lumen S36 v2

£115.73 GBP
Sale price: £115.73 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • Sockets supported (Intel): LGA 1700*/1150/1151/1155/1156/1200 LGA 1366/2011/2011-3/2066
In stock, 1 unit
EAN: 7340172705987
SKU: 10377661
Vendor: Fractal
Order within xx hours for delivery on
Quantity
  • Sockets supported (Intel): LGA 1700*/1150/1151/1155/1156/1200 LGA 1366/2011/2011-3/2066
  • Sockets supported (AMD): AM5 / AM4/FM2+/FM2/FM1/AM3+/AM3/AM2+/AM2
  • Cold plate material: Copper
  • Thermal paste: Pre-applied
  • Tube length: 400mm
  • Tube material: Low-permeability rubber with braided nylon sleeve
  • Fittings, block side: Articulating 90-degree Elbow
  • Fittings, radiator side: Barbed fitting
  • Block height: 43mm
  • Block measurements (with fittings): 79 x 67 mm
  • Block diameter (main block body): 67 mm
  • CPU Cooler Assembly (radiator, pump, tubing, and cold plate with pre-applied thermal paste).
  • 3x Aspect 12 PWM fans (either the standard black version or the RGB version, depending on which specific product code is purchased).
  • User Manual and documentation.
  • Intel mounting kit (backplate, standoffs, thumb nuts, spacers).
  • AMD mounting kit (brackets/clips, standoffs, thumb nuts, spacers).
  • 5V ARGB cable (for connecting the pump and RGB fans, if applicable, to the motherboard or a controller)

datasheet

Overview

Customize your CPU water-cooling from subtle to stunning with Lumen’s six addressable LEDs that you can command via motherboard or controller. Compatible with most common Intel/AMD sockets, including LGA1700 and AM5 and RGB certified by industry standards, the Lumen offers high-end cooling performance and premium ARGB effects for new and seasoned builders alike.

Technical Features
  • Fan specifications:
    • Fan type: Aspect 12 PWM
    • Rotational speed: 500–2000 RPM
    • Fan bearing: Rifle bearings
    • Fan PWM control: Yes
    • Fan acoustical noise: <10–33.2 dBA
    • Fan maximum air flow: 13-56 CFM
    • Fan maximum static pressure: 0.230–2.34 mm H2O
    • Fan input voltage: 12V
    • Fan maximum input current: 0.37A
    • Fan MTTF: 90,000 hours
  • Pump specifications:
    • Rotational speed: 4000 ± 10% RPM
    • Bearing type: Ceramic
    • PWM control: No
    • Acoustical noise (full speed): 22 dBA
    • Maximum pressure: 1.8 mm H2O / 17.6 kPa / 2.5 PSI
    • Input voltage: 12V DC
    • Input current (without fans): 0.34 A
    • MTTF: 50,000 hours
  • Radiator specifications:
    • Radiator dimensions: 392 x 120 x 27 mm
    • Radiator housing material: Aluminum
    • Radiator fin material: Aluminum
    • Radiator fan screw threads: 6-32
