Overview

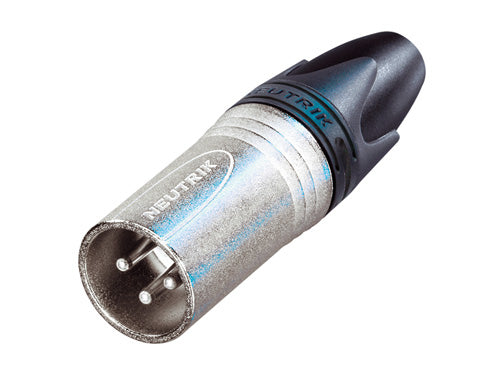

The Neutrik NC3MXX 3-Pole Male XLR Connector is part of Neutrik’s renowned XX series, widely trusted in professional audio, studio, live sound, and broadcast environments. Designed for dependable signal transmission, the connector features a rugged nickel-plated zinc diecast housing combined with silver-plated contacts for low resistance and excellent conductivity. The improved chuck-type strain relief system securely clamps cables to minimize stress and increase pull-out resistance during heavy usage. Its ergonomic design allows quick assembly with solder contacts, making it suitable for installers, AV technicians, and professional sound engineers. The polyurethane boot offers enhanced protection against cable bending stress while maintaining flexibility during operation. Rated for over 1000 mating cycles, the connector delivers long-term reliability in demanding production and touring environments. It supports cable diameters from 3.5mm to 8mm and complies with IEC 61076-2-103 standards for professional connectivity.
Technical Features
- Product Type: 3-Pole Male XLR Connector
- Model: NC3MXX
- Brand: Neutrik
- Distributed By: Cablenet
- Connector Gender: Male
- Connection Type: XLR
- Housing Material: Zinc Diecast
- Housing Finish: Nickel Plated
- Contact Material: Silver-Plated Brass
- Contact Resistance: ≤ 3 mΩ
- Rated Current Per Contact: 16A
- Rated Voltage: Less Than 50V
- Cable Diameter Support: 3.5mm – 8.0mm
- Wire Size Support: Up to 2.5mm² / 14 AWG
- Wiring Method: Solder Contacts
- Locking Mechanism: Latch Lock
- Lifetime: More Than 1000 Mating Cycles
- Operating Temperature: -30°C to +80°C
- Protection Class: IP40
- Compliance Standard: IEC 61076-2-103
