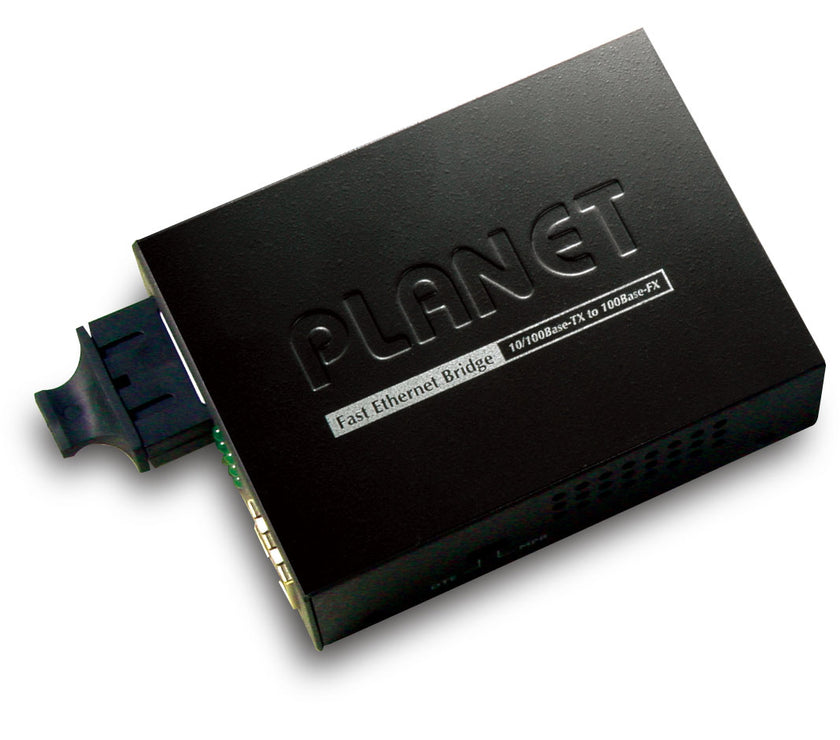

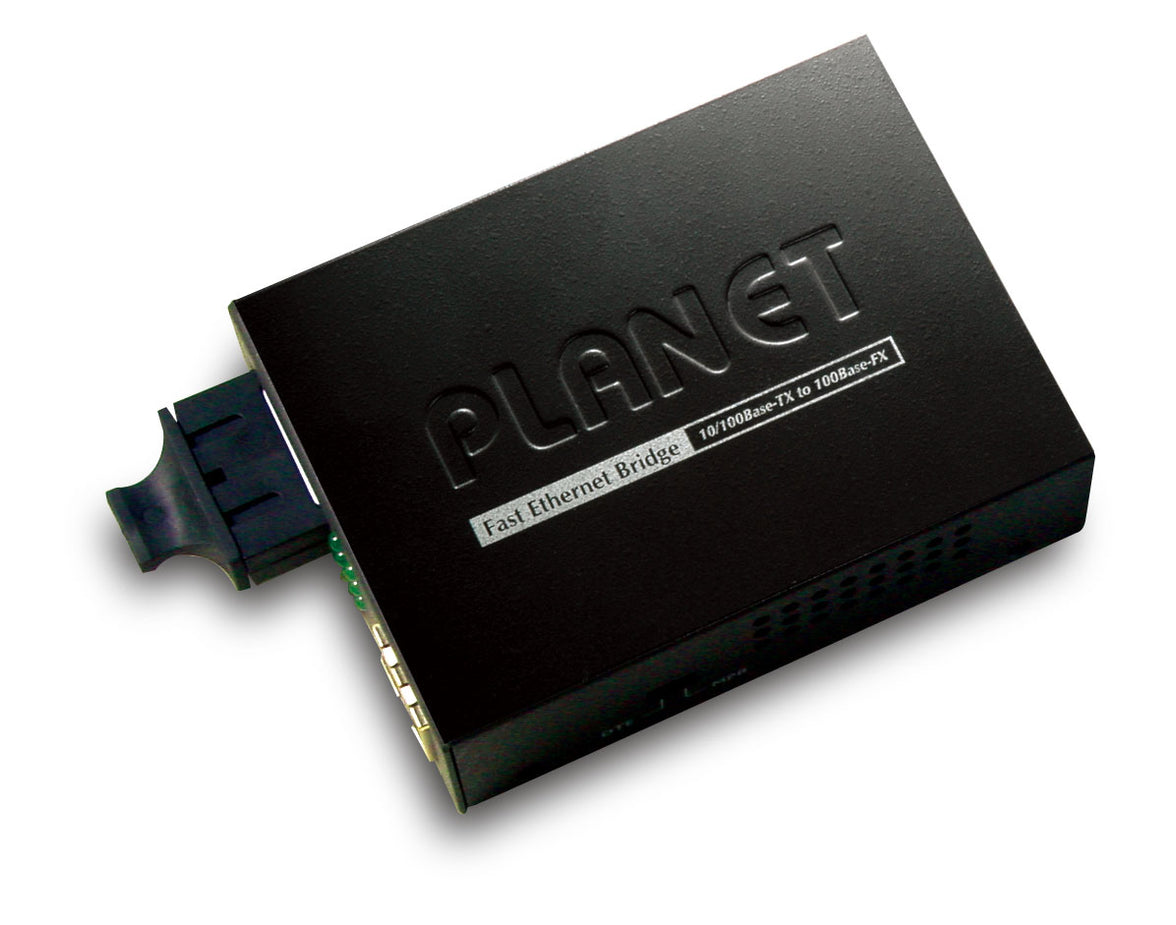

MCon 10/100 SC MM 2km

MCon 10/100 SC MM 2km

£58.73 GBP
Sale price: £58.73 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • 1310nm wavelength
  • Twisted pair
Out of stock
EAN: 4711213680526
SKU: 355649
Vendor: Cablenet
Order within xx hours for delivery on
Quantity
  • MPN: FT802UK
  • EAN: 4711213680526
  • Weight: 0.452000
  • Fiber Mode Structure: Multi-mode, Single-mode
  • Input Voltage: 5 V
  • Networking Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
  • Ethernet LAN Data Rates: 10, 100 Mbit/s
  • Fiber Ports Quantity: 1
  • Duplex System: Full, Half
  • Ethernet Interface Type: Fast Ethernet
  • Operating Relative Humidity: 5 - 90%
  • Cablenet Media Converter 10/100-100FX (SC) LFP MM

Datasheet

Overview

It supports both half-duplex and full-duplex operations and a variety of fibre options. The converter auto-adapts to the highest level of performance supported by the device connected to the STP port. When the device is a switch or a workstation that supports full duplex, the converter adapts to the full-duplex mode and provides an effective 200Mbps bandwidth. When the connected device is a hub or a workstation that supports only half duplex, the converter adapts to the half-duplex mode and provides the nominal 100Mbps bandwidth.

Technical Features
  • Standards compliance: Complies with IEEE 802.3, IEEE 802.3u 10/100BASE-TX, 100BASE-FX standard
  • Connectors: One RJ45 (auto-MDI/MDI-X) twisted pair, EIA568; One fiber-optic, 1310nm wavelength, connector type and distance vary with model
  • FT-806A20 / FT-806A60: Tx-1310nm, Rx-1550nm
  • FT-806B20 / FT-806B60: Tx-1550nm, Rx-1310nm
