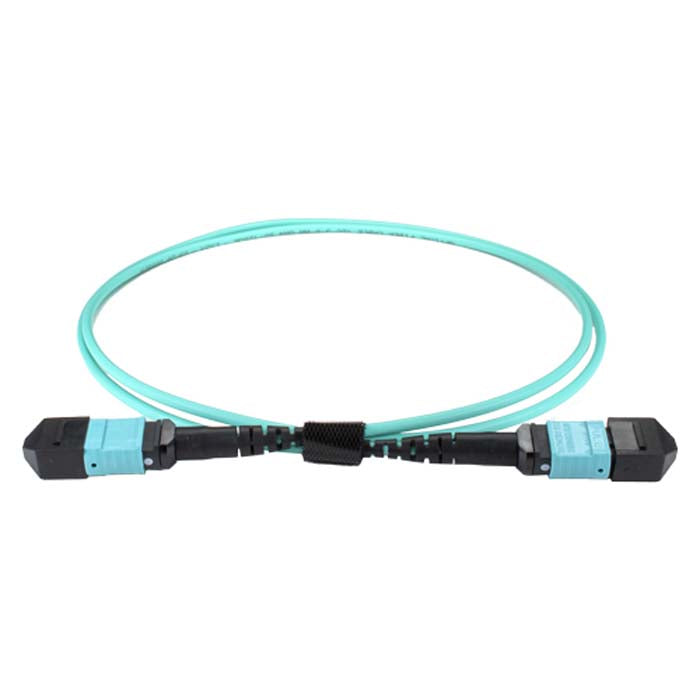

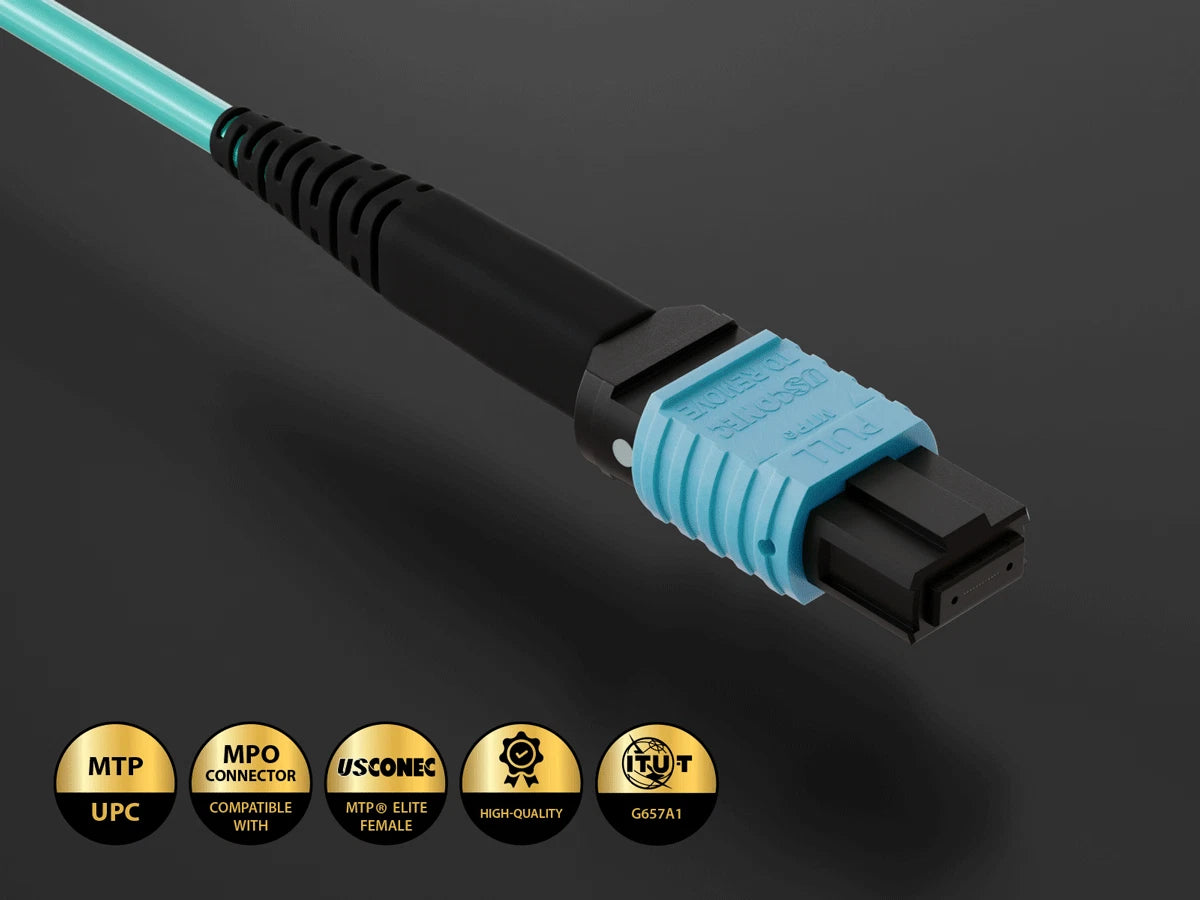

CNL 30M OM4 B12 MPO 12F Aq TRUNK M-B

CNL 30M OM4 B12 MPO 12F Aq TRUNK M-B

£159.82 GBP
Sale price: £159.82 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • OM4 MTP 12-fibre trunk cable
  • Female to female connectors
  • Type B reverse polarity
  • High bandwidth data centre use
In stock, 5 units
EAN: 5056750327329
SKU: 356548
Vendor: Cablenet
Order within xx hours for delivery on
Quantity
  • 30m OM4 multimode trunk cable
  • 12 fibre MPO to MPO
  • Type B polarity (reversed)

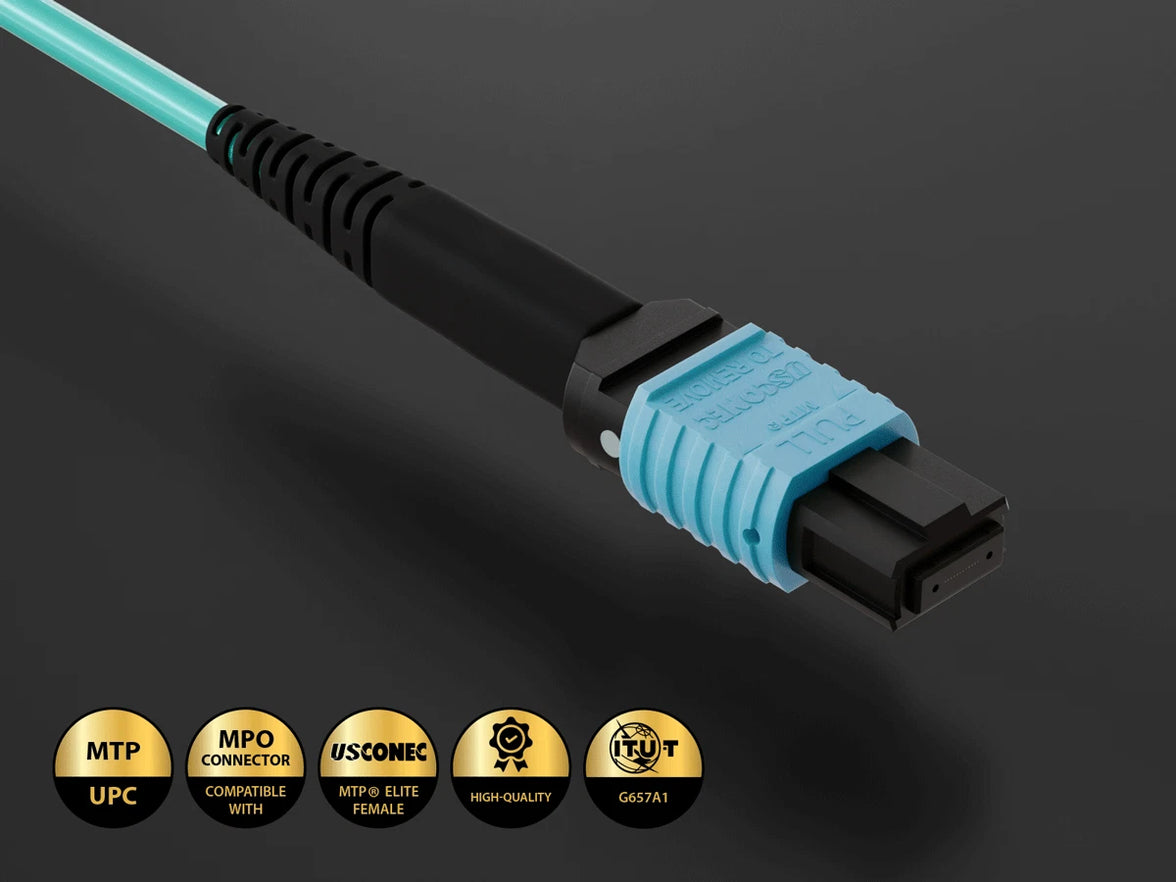

  • UPC polished connectors
  • CNL 30M OM4 B12 MPO 12F Aq TRUNK M-B

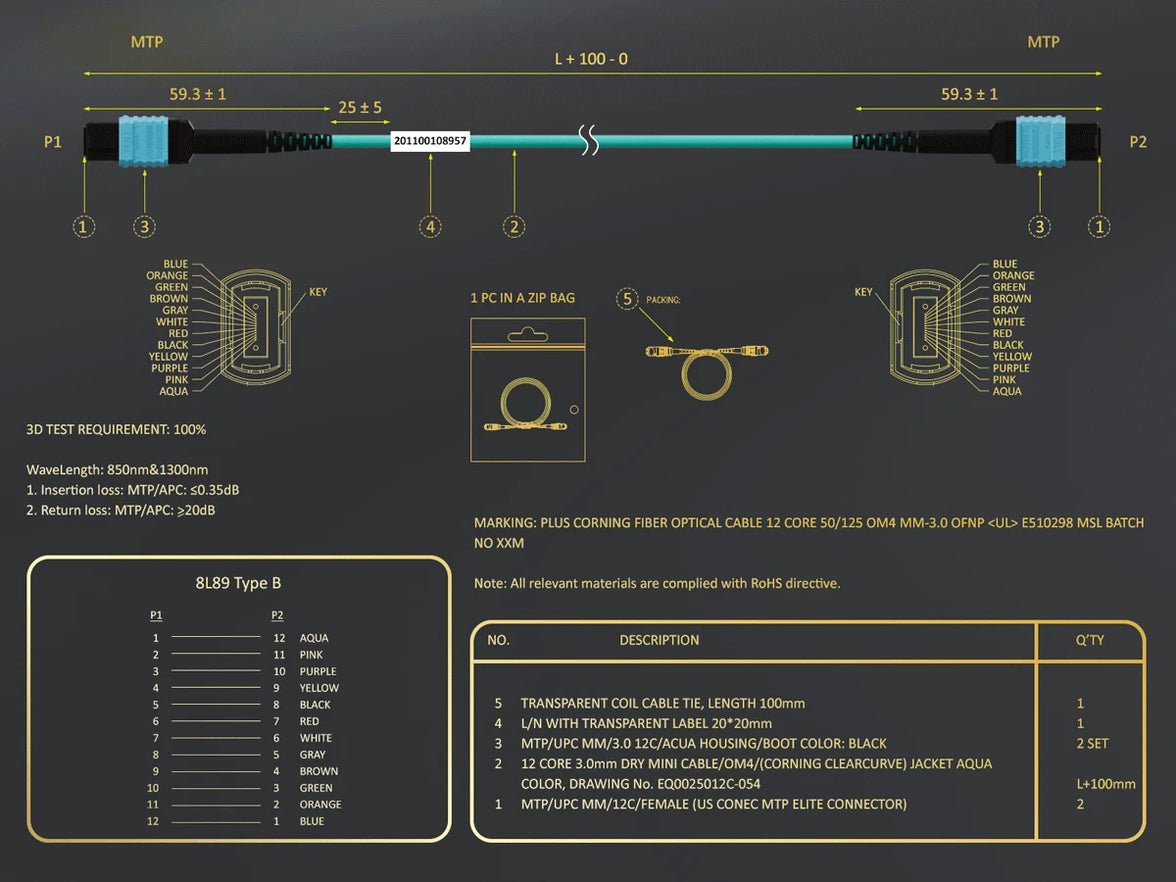

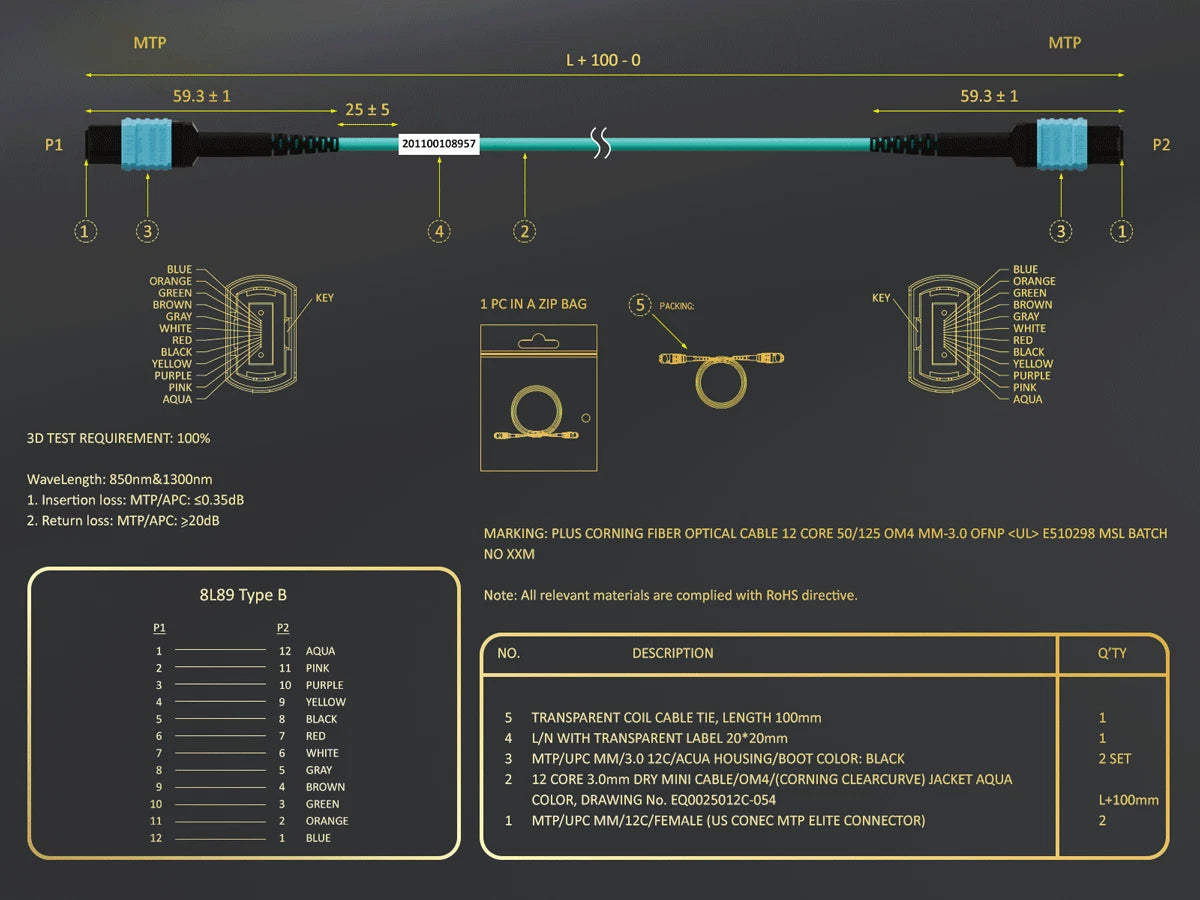

Datasheet

Overview

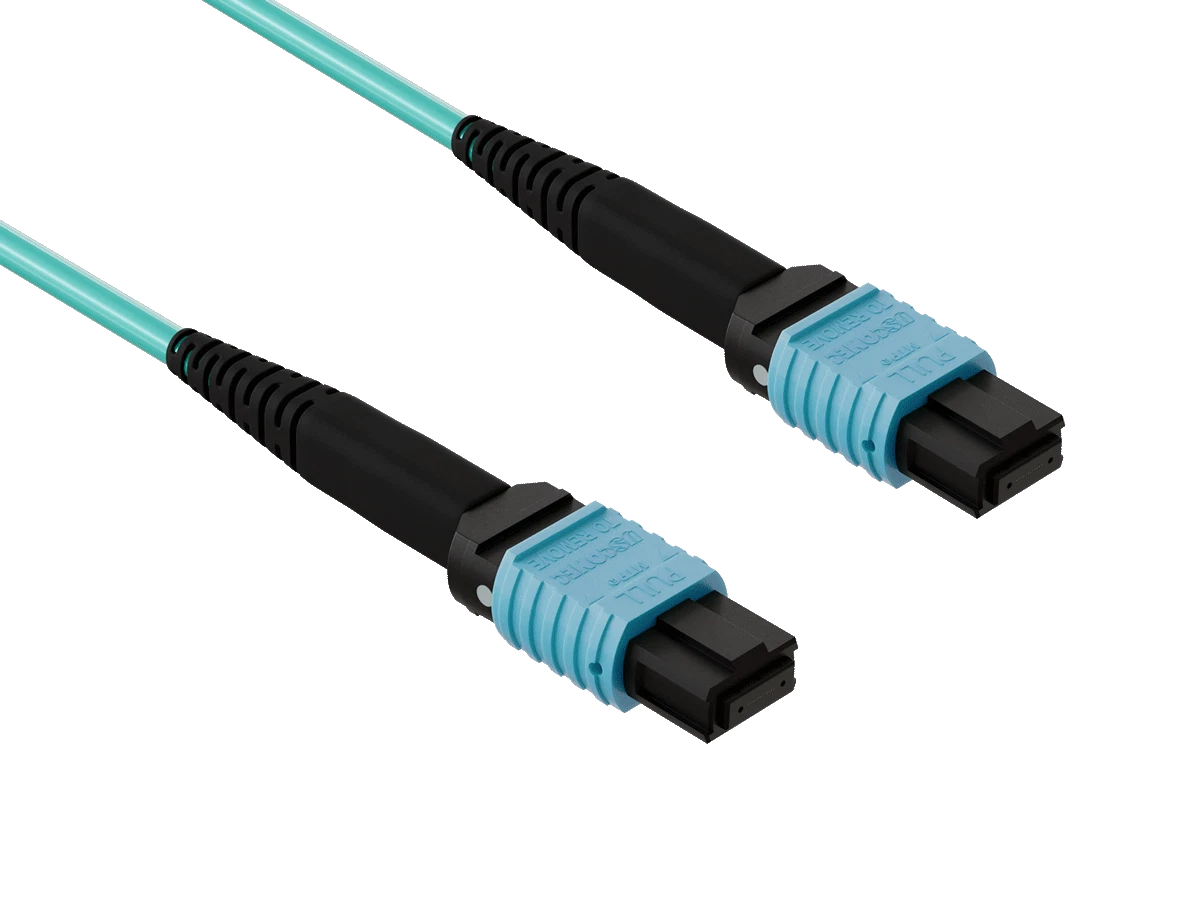

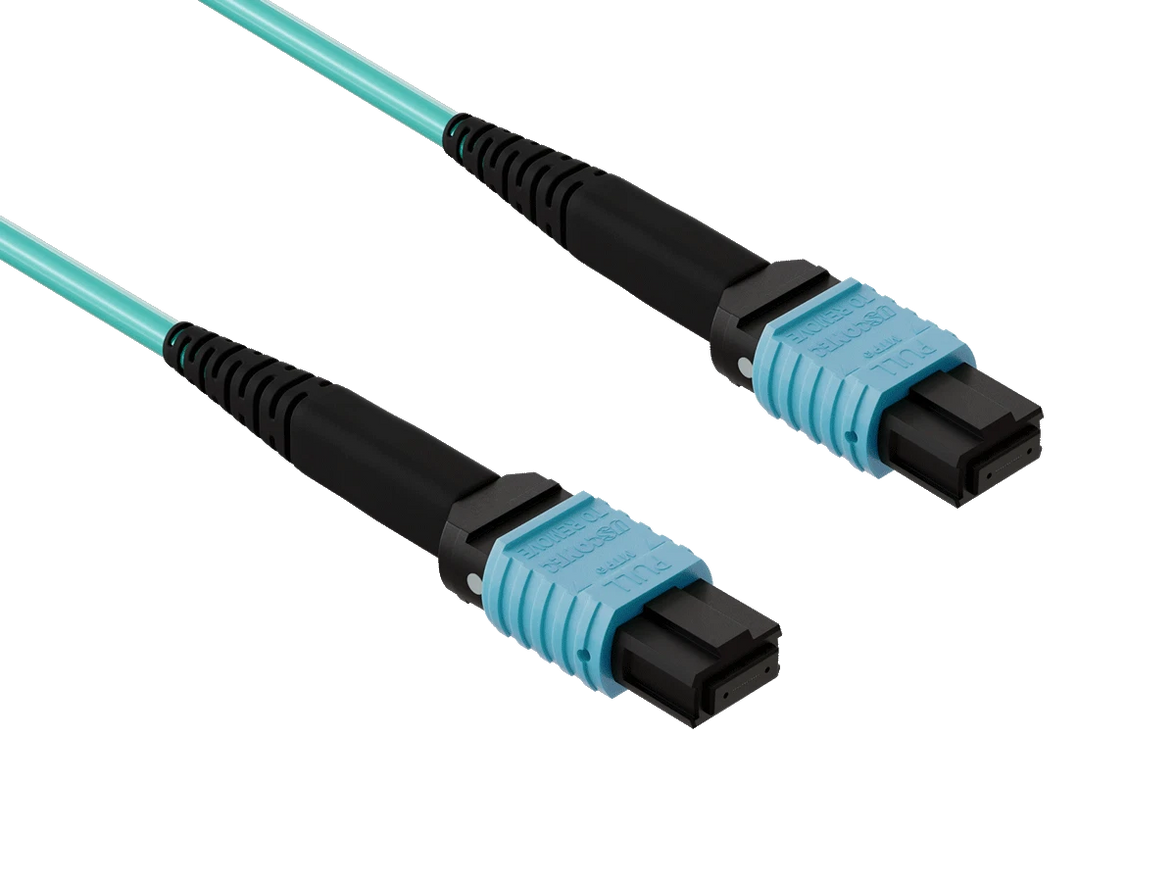

The MTP® OM4 50/125 Multimode 12-Fiber Trunk Cable Type B (Female to Female) is an advanced optical networking solution designed to meet the demands of high-density, high-performance data center and enterprise network environments. This premium cable leverages OM4 multimode fiber technology to deliver superior bandwidth and transmission capabilities, supporting 10Gb connections up to 550 meters and 40/100Gb connections up to 150 meters.Engineered with precision, this trunk cable features US Conec MTP® female connectors on both ends, configured in a Type B (Reverse) polarity with key up to key up orientation. The cable utilizes Corning® glass with a 50μm core and 125μm cladding, ensuring optimal light transmission and minimal signal degradation. With an impressive Effective Modal Bandwidth of 4700 MHz/km at 850nm, it provides the necessary performance for today's data-intensive applications.

Technical Features
  • Low insertion loss OM4 fibre
  • High return loss performance
  • Aqua LSZH jacket cable
  • Supports 100Gb Ethernet links
