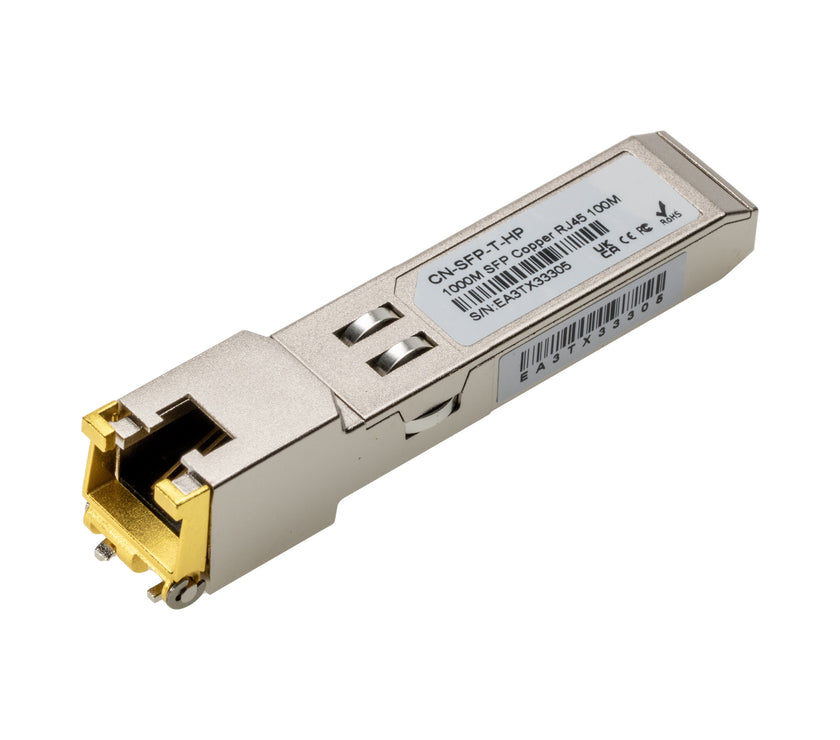

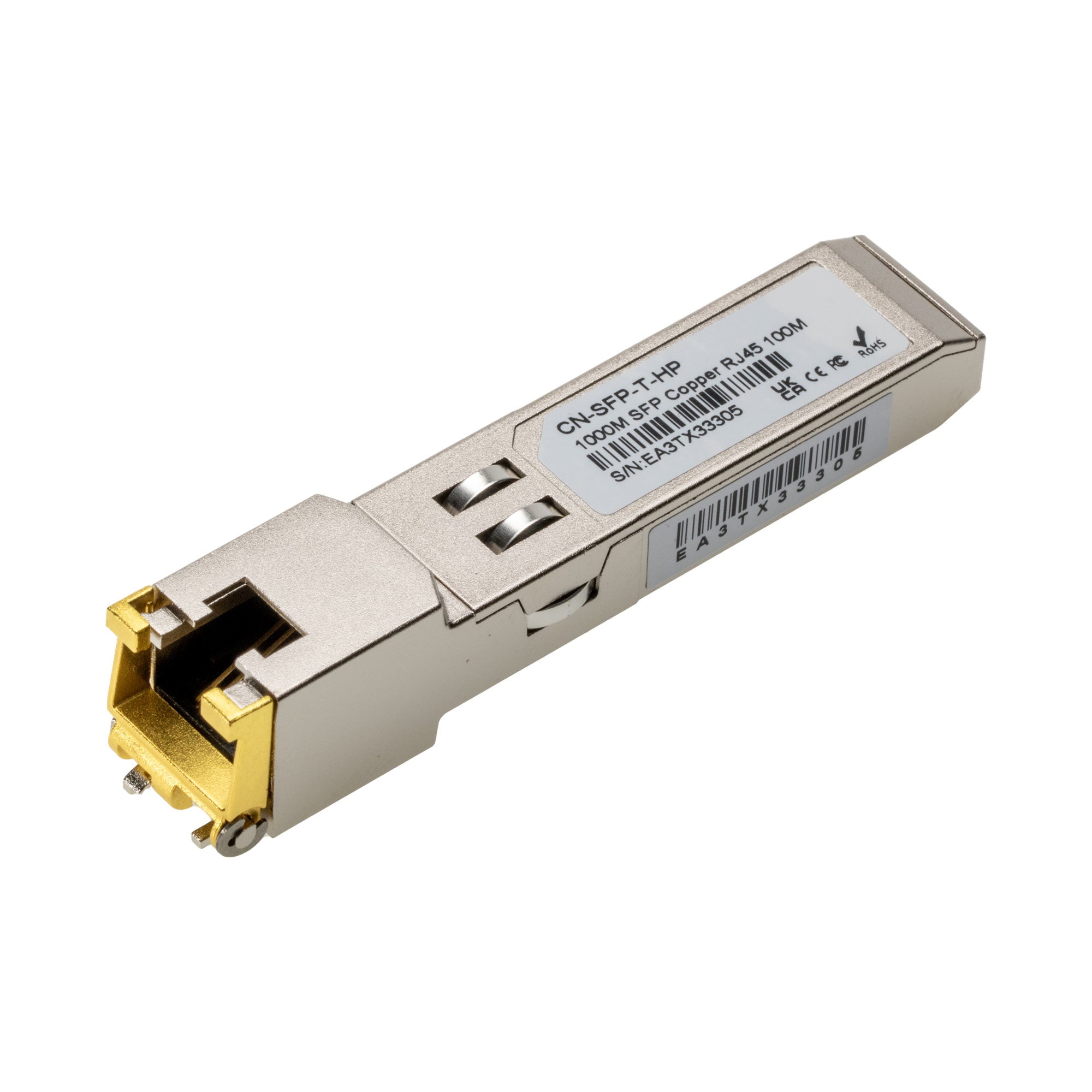

CNL 1GBASE COPPER RJ45 100M HP/Ar Comp

CNL 1GBASE COPPER RJ45 100M HP/Ar Comp

£14.12 GBP
Sale price: £14.12 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • Gigabit Ethernet SFP transceiver.
  • Supports 1000BASE-T Cat5 links.
  • IEEE 802.3 compliant module.
In stock, 11 units
EAN: 5056750320672
SKU: 355443
Vendor: Cablenet
Order within xx hours for delivery on
Quantity
  • HP compatible SFP module.
  • Plug and play hot-swap.
  • Metallic SFP form factor.
  • CNL 1GBASE COPPER RJ45 100M HP/Ar Comp

Datasheet

Overview

Our Copper Small Form Pluggable (SFP) transceivers are high-performance, cost-effective modules compliant with the Gigabit Ethernet and 1000BASE-T standards as specified in IEEE802.3-2002 and IEEE802.3ab, supporting 1000Mbps data-rate up to 100 metres over unshielded twisted-pair category 5 cable.
The module supports 1000Mbps full duplex data-links with 5-level Pulse Amplitude Modulation (PAM) signals. All four pairs in the cable are used with symbol rate at 250Mbps on each pair.
The module provides standard serial ID information compliant with SFP MSA, which can be accessed with address of A0h via the 2 wire serial CMOS EEPROM protocol. The physical IC can also be accessed via 2 wire serial bus at address ACh.

Technical Features
  • Plug and play SFP module.
  • Hot-swappable design.
  • 100m Ethernet support.
