Axis T8641 PoE+ over Coax Base

Axis T8641 PoE+ over Coax Base

£255.84 GBP
Sale price: £255.84 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • PoE+ over Coax, 500 m range.
  • Plug-and-play with flexible mounting.
In stock, 1 unit
EAN: 7331021001756
SKU: 5028-411
Vendor: Axis
Order within xx hours for delivery on
Quantity
  • Device Type: Media converter (Ethernet over Coax)
  • Connectivity: 1 x RJ-45 female (Ethernet), 1 x BNC female (Coaxial)
  • Data Rate: 100 Mbps Ethernet, 100/100 Mbps Coaxial
  • PoE Support: PoE+ (IEEE 802.3af/at compliant)
  • Input Power: PoE (IEEE 802.3at Class 4) or 44–57 V DC
  • Max Coax Range: Up to 500 m / 1600 ft
  • Dimensions (HxWxD): 104.1 x 55.9 x 22.9 mm (4.1 x 2.2 x 0.9 in)
  • Weight: ~91 g (0.2 lb)
  • AXIS T8641 PoE+ over Coax Base Unit
  • Installation Guide

Datasheet

Overview

The T8641 PoE+ over Coax Base Unit from Axis Communications is a single-channel solution that allows legacy coax cabling to be used when converting an analog system to IP. This base unit receives PoE power and transmits it via coax. A compact unit (available separately) receives power via coax and delivers PoE+ to a network device.

Technical Features
  • Ethernet & PoE+ over Coax: Transmits network data and PoE+ over existing coaxial cables
  • Long Range: Supports up to 500 m (~1600 ft) at 100/100 Mbps
  • Cost-Effective Migration: Upgrade analog to IP systems without replacing existing cabling
  • Plug-and-Play Installation: Simple setup with no complex configuration required

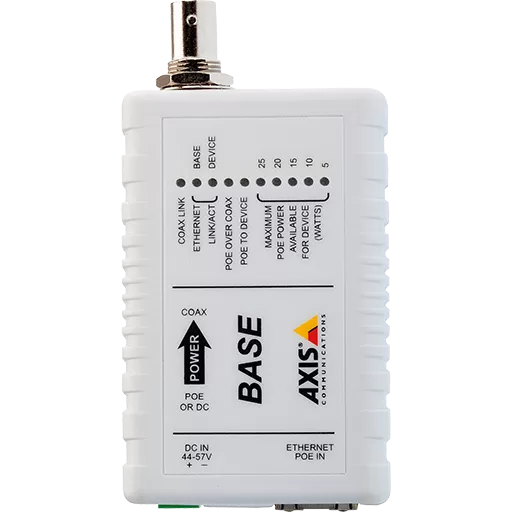

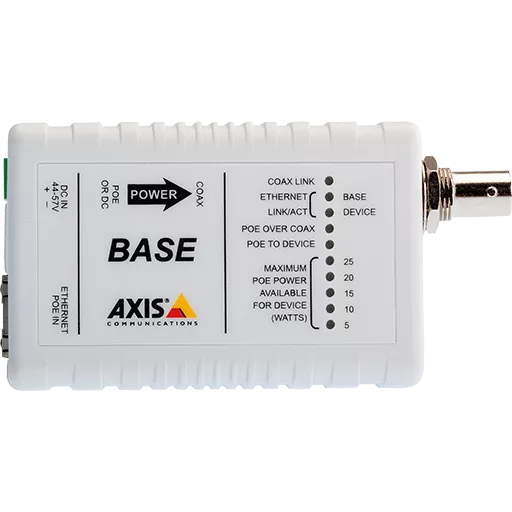

  • Status LEDs: Monitors coax link, Ethernet connectivity, and PoE power levels
  • Flexible Power Input: Powered via PoE Class 4 or optional DC supply
  • Compatibility: Works with AXIS T8640/T8645 PoE+ over Coax kits
  • Versatile Mounting: Supports wall, rack, or DIN rail installation
  • Industry Compliance: TAA and NDAA compliant for government/defense use
