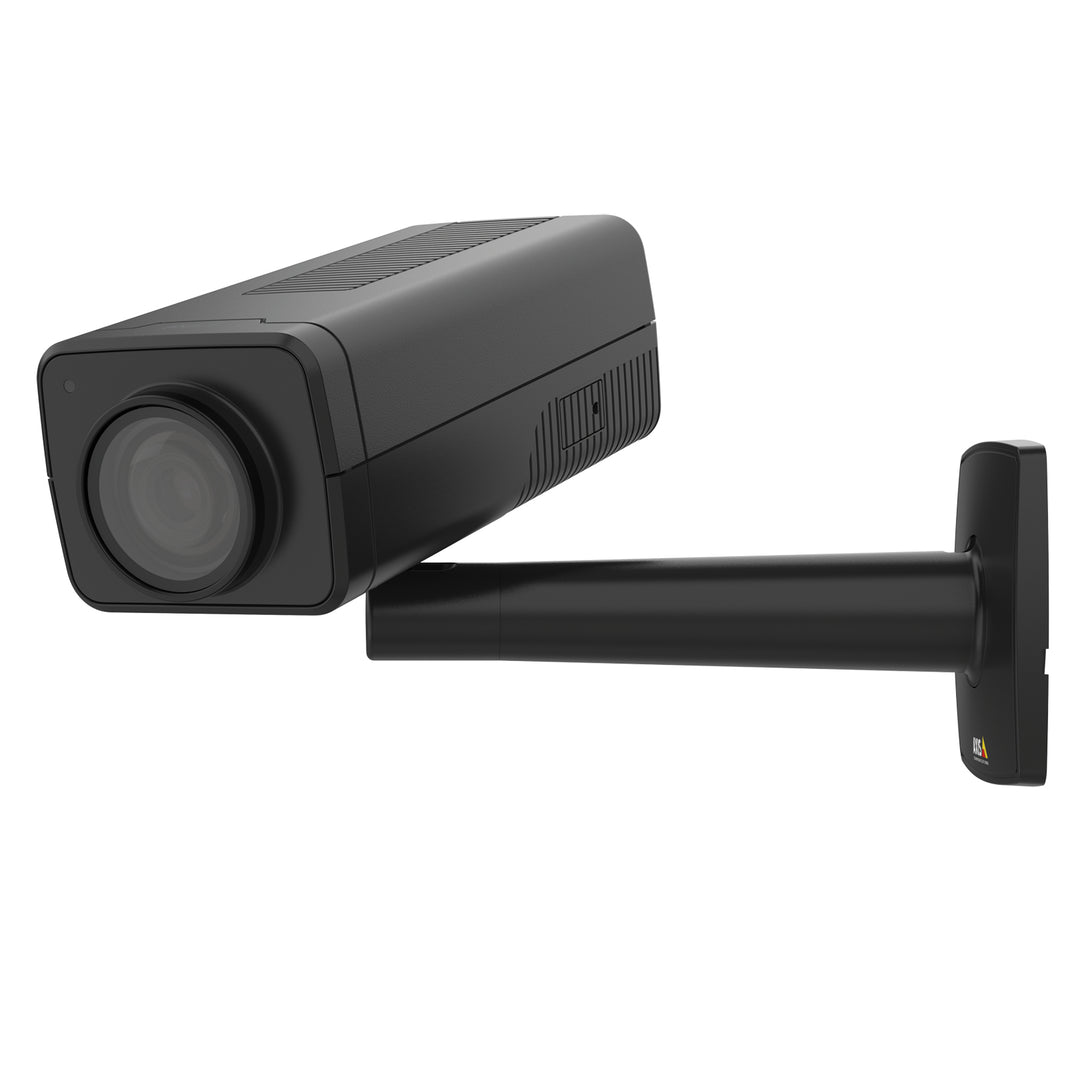

Axis 02220-001 security camera Bullet IP security camera 1920 x 1080 pixels Ceiling/wall

Axis 02220-001 security camera Bullet IP security camera 1920 x 1080 pixels Ceiling/wall

£1,196.00 GBP
Sale price: £1,196.00 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • Ideal for Accessory housings and casings
  • HDMI and HD-SDI output
Out of stock
EAN: 7331021075009
SKU: 02220-001
Vendor: Axis
Order within xx hours for delivery on
Quantity
  • System on a Chip (SoC): ARTPEC-7
  • Image Sensor: 1/2.8" Progressive Scan RGB CMOS
  • Video Resolution: 1920x1080 HDTV 1080p
  • Frame Rate: Up to 60/50 fps (60/50 Hz) in all resolutions; HDMI and HD-SDI limited to 30 fps in 1080p
  • Lens: Varifocal, 4–84.6 mm, F1.6–F4.5
  • Field of View:
    Horizontal: 76° – 3.6°
    Vertical: 76° – 2.2°
  • Minimum Illumination (1080p 50/60 fps with Forensic WDR & Lightfinder 2.0):
    Color: 0.2 lux at 50 IRE, F1.5
    B/W: 0.04 lux at 50 IRE, F1.5
  • Audio Input/Output: External microphone input or line input, ring power, network speaker pairing
  • Physical Connectors:
    Power over Ethernet (PoE): IEEE 802.3at Type 2 Class 4 — Typical: 12.4 W, Max: 14.2 W
    DC Power: 10–28 V DC, Typical: 12 W, Max: 13.5 W
    PoE Class 3 Option: IEEE 802.3af/802.3at Type 1 Class 3 — Typical: 11.7 W, Max: 12.9 W
    Network: Shielded RJ45 10/100/1000 PoE
  • Operating Temperature: -4°F to 122°F
  • Dimensions: 2.6 x 3.1 x 7.7 in
  • Weight: 1.4 lb
  • Camera
  • Installation guide
  • Windows® decoder 1-user license
  • Stand
  • Connector kit
  • TORX® T20 screw driver
  • RESISTORX® L-key
  • Terminal block connector

Datasheet

Overview
AXIS Q1715 delivers HDTV 1080p at 60 fps and 21x optical zoom for all the details. With a deep learning processing unit, it’s possible to take advantage of intelligent tailor-made applications based on deep learning on the edge. It comes with AXIS Object Analytics for highly nuanced object classification and reliable detection with fewer false positives. And, it provides analytics metadata based on deep learning on the edge. Lightweight in design, it’s easy to install in accessory housings and casings. It offers support for 2-way audio and supervised I/O. Furthermore, it features built-in cybersecurity features to prevent unauthorized access and safeguard your system.

Technical Features
  • Model: Axis Q1715
  • Design: Lightweight, high-performance block camera suitable for easy installation in housings and casings
  • Connectivity:
    • Serial port for controlling an Axis T99A10 Positioning Unit
    • HDMI and HD-SDI outputs for displaying live video on a public viewing monitor
  • Security: Equipped with Axis Edge Vault to protect Axis device ID, storage, and cryptographic keys
