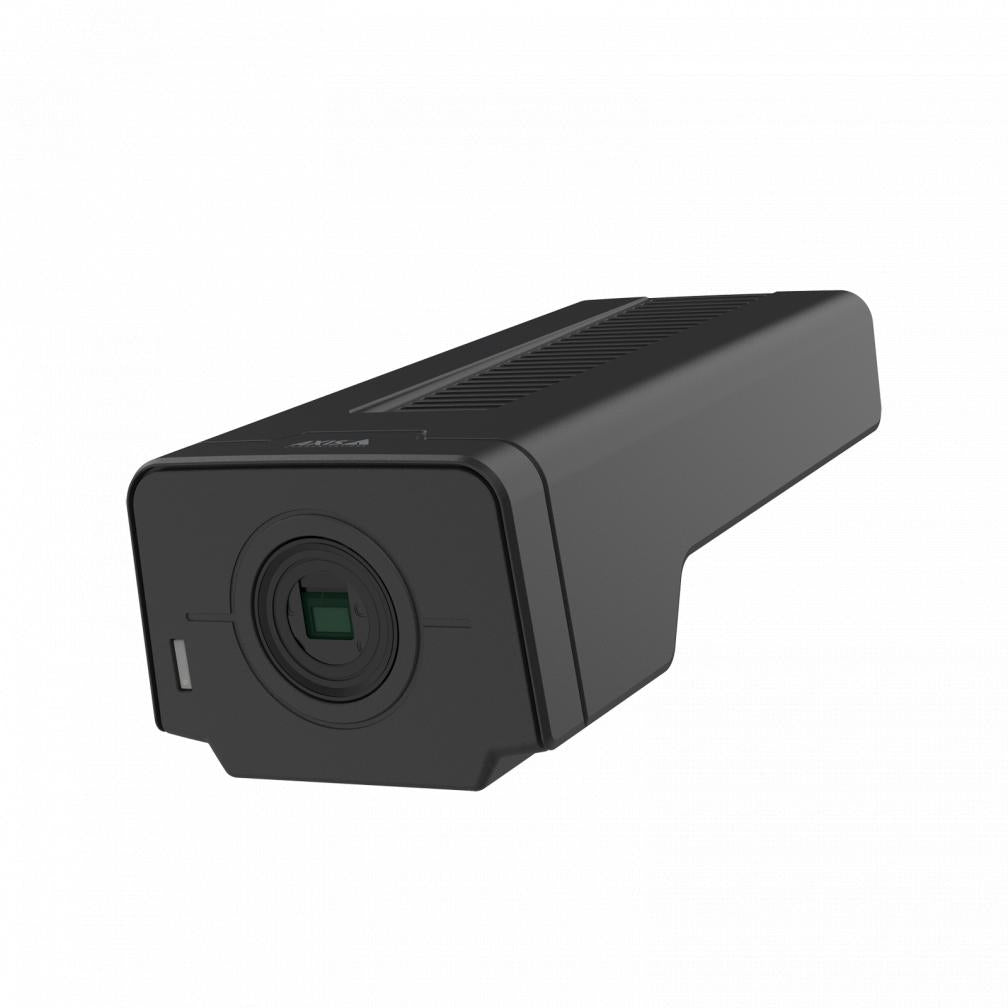

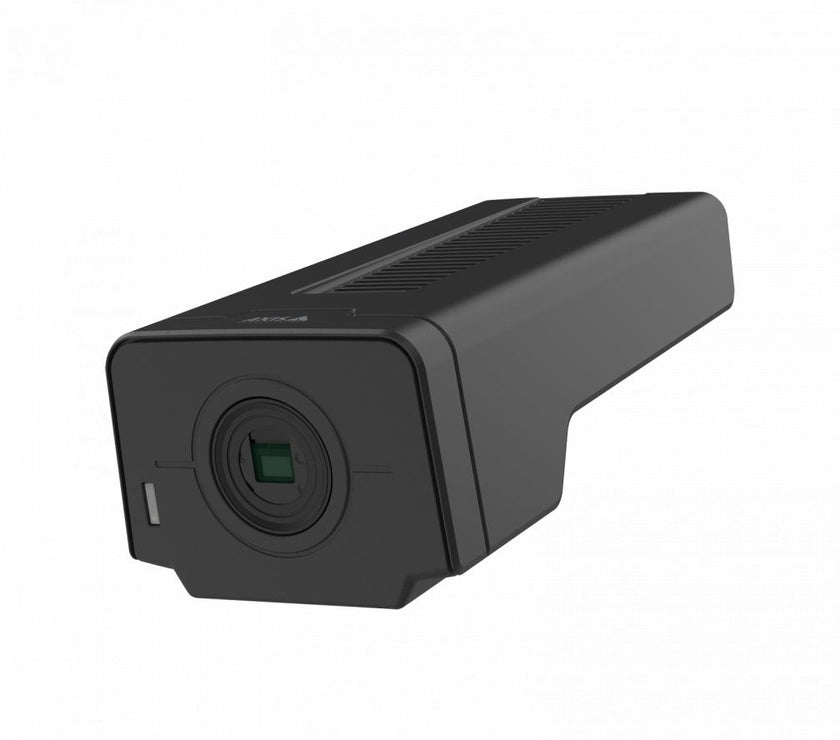

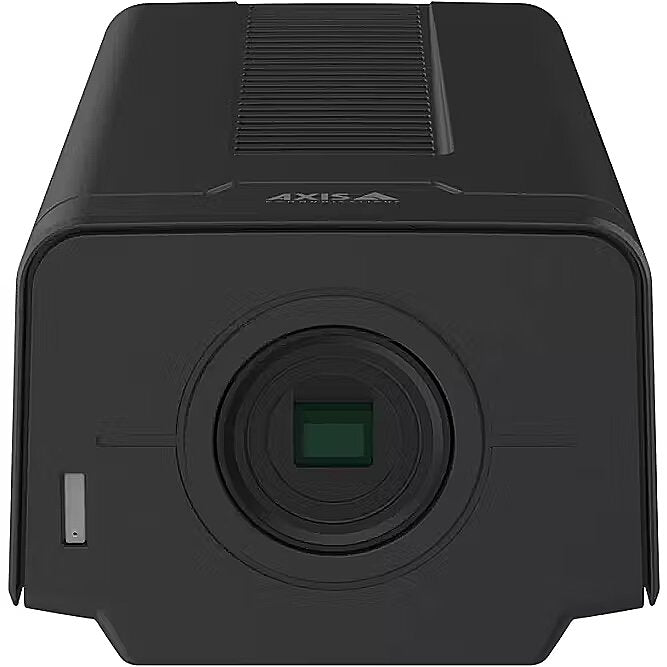

Axis 02164-031 security camera Box Indoor & outdoor 2688 x 1512 pixels Wall

Axis 02164-031 security camera Box Indoor & outdoor 2688 x 1512 pixels Wall

£1,196.00 GBP
Sale price: £1,196.00 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • High-Resolution Video
  • Two-Way Audio
In stock, 2 units
EAN: 7331021074668
SKU: 02164-031
Vendor: Axis
Order within xx hours for delivery on
Quantity
  • 4 MP CMOS Sensor: 1/1.8"-type CMOS sensor delivers crisp, detailed imagery
  • Full HD Streaming: Captures video up to 2688 x 1512 resolution at 60 fps
  • CS Mount Lens: Compatible with standard CS and i-CS lenses for flexible setup
  • True Day/Night Functionality: Mechanical IR-cut filter ensures optimal image quality in all lighting conditions
  • Low-Light Performance: Minimum illumination of 0.05 lux (color) and 0.01 lux (B/W)
  • Multi-View Streaming: Supports up to 8 simultaneous video streams
  • Two-Way Audio: Includes stereo input/output with support for AAC-LC, G.711, G.726, LPCM, and Opus codecs
  • Advanced Installation Aids: Remote focus, zoom, back focus, leveling assistant, and pixel counter for precise setup
  • Integrated Analytics: Object and motion detection for smart event monitoring
  • Comprehensive Protocol Support: ONVIF Profiles G, M, S & T, MQTT, SNMP, HTTPS, SSL/TLS, RTSP, and more
  • Robust Cybersecurity: Includes HTTPS encryption, IEEE 802.1X authentication, password protection, and centralized certificate management
  • Flexible Storage Options: microSD/SDHC/SDXC slot, NAS, and cloud recording support
  • Power Options: Supports PoE (8.2 W) and DC input (7.7 W) for flexible installation
  • Durable Construction: Aluminum housing ensures longevity and reliability
  • Operating Temperature: -20°C to 60°C for stable performance in varied environments
  • Compact & Lightweight: Measures 58 x 80 x 155 mm and weighs only 0.9 lb
  • Certifications: FCC, RCM, and UL certified for quality and safety assurance
  • Multilingual Interface: Supports 12 languages including English, Chinese, French, and Spanish
  • camera
  • Windows Decoder 1-User License
  • Stand
  • Drill hole template
  • Connector kit
  • Installation guide

Datasheet

Overview
With 4 MP resolution at up to 60 fps, a 1/1.8” sensor, and Lightfinder 2.0, AXIS Q1656-B delivers exceptional video quality even in poor light conditions. Based on the latest Axis system-on-chip (SoC), it offers support for advanced features and applications based on deep learning on the edge. And AXIS Object Analytics provides highly nuanced object classification. With built-in cybersecurity features, it prevents unauthorized access and safeguards your system. This lightweight barebone unit comes without lens for maximum flexibility. It’s designed for retrofitting AXIS T92E20 Outdoor Housing, making it easy to add deep-learning capabilities to existing installations.

Technical Features
  • CS Mount Compatibility: supports standard CS and i-CS lenses (available separately)
  • Outdoor Ready Design: fits Axis T92E20 Outdoor Housing (available separately) for outdoor use
  • Day/Night Functionality: automatically removable IR cut filter for optimal performance in all lighting conditions
  • Lightfinder 2.0 Technology: delivers superior visibility and color in low-light environments
  • Flexible Video Streaming: multiple configurable streams in H.265, H.264, and MJPEG formats
  • Axis Zipstream Technology: reduces bandwidth and storage needs without compromising image quality
  • Adjustable Performance: controllable frame rate and bandwidth (VBR/ABR/MBR for H.264/H.265)
  • Digital PTZ: includes preset positions and remote control for flexible monitoring
  • Preinstalled Pelco D PTZ Driver: enables easy integration and control
  • Advanced Remote Controls: remote zoom/focus (for i-CS lenses), back focus, leveling assistant, and pixel counter
  • Comprehensive Image Settings: includes forensic WDR (up to 120 dB), exposure control, defogging, distortion correction, rotation modes, mirroring, overlays, and privacy masking
  • Configurable I/O Ports: terminal block for two supervised and two unsupervised digital inputs/outputs
  • Security Features: includes lock slot, microSD encryption, and AXIS T92G20 connector
  • Built-in Analytics: AXIS Object Analytics and Video Motion Detection with support for third-party apps
  • Flexible Recording Options: supports recording to NAS and encrypted microSD storage
  • Eco-Friendly Construction: PVC and BFR/CFR free design
