Axis 02054-001 security camera Dome IP security camera Indoor & outdoor 2688 x 1512 pixels Ceiling/Wall/Pole

Axis 02054-001 security camera Dome IP security camera Indoor & outdoor 2688 x 1512 pixels Ceiling/Wall/Pole

£1,304.84 GBP
Sale price: £1,304.84 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • 4.3–8.6mm Varifocal Lens
  • Two-Way Audio Communication
In stock, 5 units
EAN: 7331021071674
SKU: 02054-001
Vendor: Axis
Order within xx hours for delivery on
Quantity
Performance
  • Infrared (IR) Cut-Off Filter: Yes
  • Number of Languages: 12
  • Languages Supported: Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian
  • PTZ Modes: Digital PTZ
  • Fog Proof: Yes
  • Type: IP Security Camera
  • Connectivity Technology: Wired
  • PTZ Control: Yes
  • Placement Supported: Indoor & Outdoor
  • Wide Dynamic Range (WDR): Yes
  • Day/Night Mode: Yes
  • People Counting Function: Yes
Design
  • Weatherproof: Yes
  • IK Code: IK10+
  • Fog Proof: Yes
  • Form Factor: Dome
  • Product Colour: White
  • Mounting Type: Ceiling / Wall / Pole
  • Protection Features: Vandal Proof
  • IP Rating: IP66
Camera
  • Minimum Illumination: 0.08 lx
  • Tilt Angle Range: -43° to 80°
  • Pan Range: -180° to 180°
  • Rotation Angle: 175°
  • Shutter Speed: 1/91000 – 1 s
  • Pan/Tilt Control: Yes
  • Horizontal Viewing Angle: 103° – 53°
  • Vertical Viewing Angle: 56° – 30°
  • Progressive Scan: Yes
Image Sensor
  • Sensor Type: CMOS
  • Optical Sensor Size: 1/1.8"
  • Number of Sensors: 1
Lens System
  • Number of Lenses: 1
  • Maximum Aperture: f/2.4
  • Minimum Aperture: f/1.5
  • Focus: Manual
  • Optical Zoom: 2x
  • Focal Length Range: 4.3 – 8.6 mm
Night Vision
  • Night Vision: Yes
  • LED Type: IR
  • Illumination LEDs: 2
Video
  • Image Adjustments: Brightness, Contrast, Saturation, Sharpness
  • Privacy Masking: Yes
  • Image Stabilizer: Yes
  • Gain Control: Auto
  • Bit Rate Control: Variable Bit Rate (VBR)
  • Compression Formats: H.264, H.265, M-JPEG
  • Maximum Resolution: 2688 × 1512 pixels
  • Frame Rate: 60 fps
  • Video Streaming: Yes
  • Total Megapixels: 4 MP
  • Video Recording: Yes
Audio
  • Built-in Microphone: Yes
  • Audio System: 2-Way Full Duplex
  • Supported Formats: AAC-LC, ADPCM, G.711, G.726, LPCM, OPUS, PCM
  • Audio Detection: Yes
Network
  • Networking Standards: IEEE 802.1x, IEEE 802.3at
  • Quality of Service (QoS): Yes
  • Streaming Method: Multicast
  • Ethernet LAN: Yes
  • Wi-Fi: No
  • Supported Protocols: IPv4, IPv6, HTTPS, TLS, FTP, RTSP, RTP, SRTP, MQTT, and more
Storage
  • Card Reader: Yes (SD/SDHC/SDXC)
  • Internal Memory: 2048 MB
  • Flash Memory: 8194 MB
Security
  • Alert Notification: Email
  • IVS Features: Line Crossing, Face Detection, Human/Vehicle Detection
  • Encryption: HTTPS, FIPS 140-2, EAP-TLS
  • IP Filtering & Password Protection: Yes
  • Active Tampering Alarm: Yes
  • Pixel Counter: Yes
Power
  • Power Source: DC, PoE
  • Max Consumption: 23 W
  • Typical Consumption: 9 W
  • DC Output Voltage: 10 – 28 V
Environmental
  • Operating Temperature: -50°C to 55°C
  • Storage Temperature: -40°C to 65°C
  • Operating Humidity: 10 – 100%
  • Storage Humidity: 5 – 95%
Dimensions & Weight
  • Height: 124 mm
  • Diameter: 183 mm
  • Weight: 2.1 kg
  • Number of cameras
  • Mounting kit
  • Mounting brackets
  • Manual
  • Drilling template


Datasheet

Overview

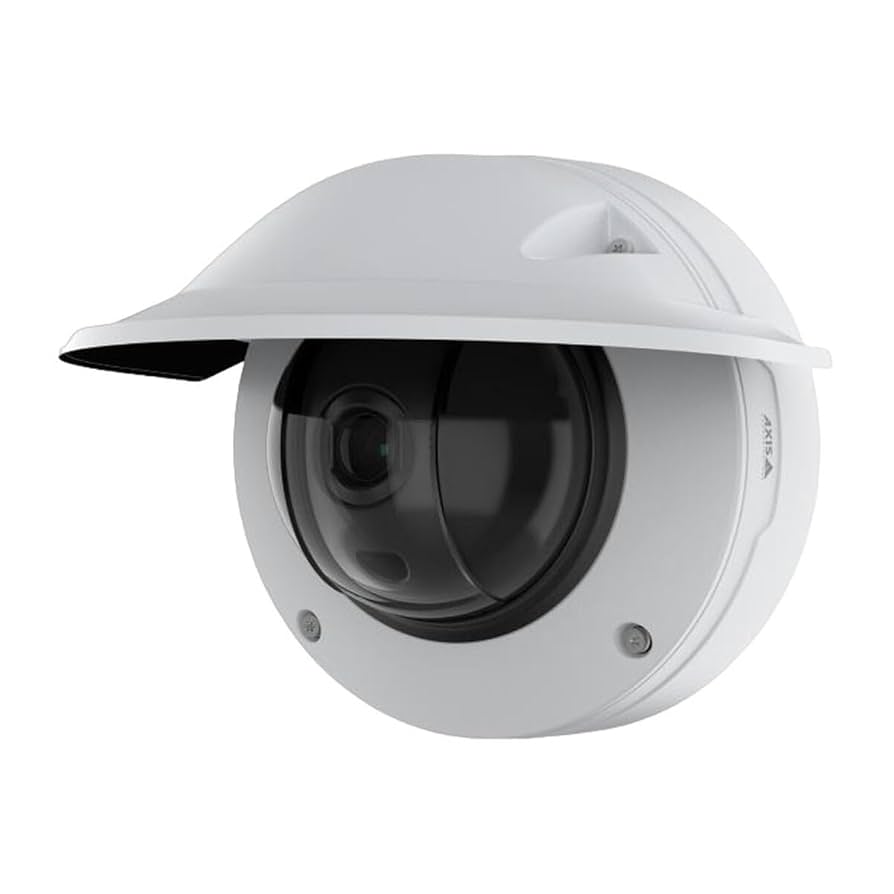

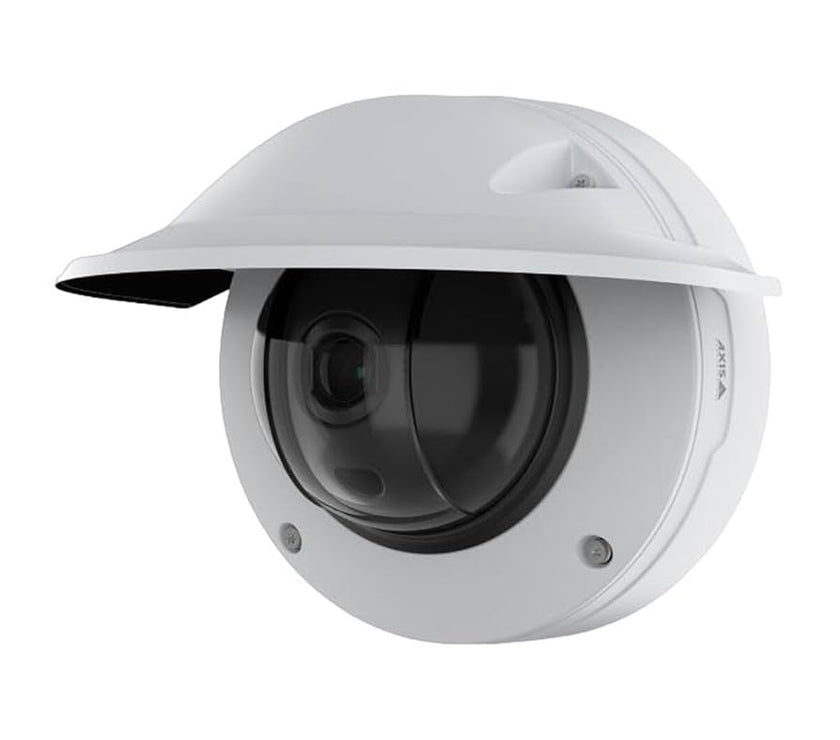

With 4 MP resolution, Lightfinder 2.0, Forensic WDR, and OptimizedIR, AXIS Q3536-LVE delivers outstanding image quality even in the harshest weather and environments. The IR-shielded dome prevents IR reflections ensuring consistently clear, sharp video. Based on the latest generation Axis system-on-chip (SoC), it offers advanced features and powerful applications based on deep learning. For instance, AXIS Object Analytics comes preinstalled offering highly nuanced object classification. This robust camera features redundant power, sensors for intrusion and shock detection, and built-in cybersecurity features such as Axis Edge Vault and a FIPS 140-2 level 2 certified Trusted Platform Module (TPM).

Technical Features
  • Resolution: 2688 x 1512 at up to 60 fps
  • Night Vision: IR LEDs for clear visibility up to 130'
  • Lens: 4.3–8.6mm Varifocal Lens
  • Field of View: 103° to 53° (Horizontal)
  • Audio: Two-Way Audio Communication
  • Network: RJ45 Ethernet Port with PoE Technology
  • Storage: Supports microSD/SDHC/SDXC Cards
  • Compliance: ONVIF Profiles G, M, S & T
  • Durability: IP69 & NEMA 4X Rated for Outdoor Use
  • Vandal Resistance: IK10-Rated Protection
