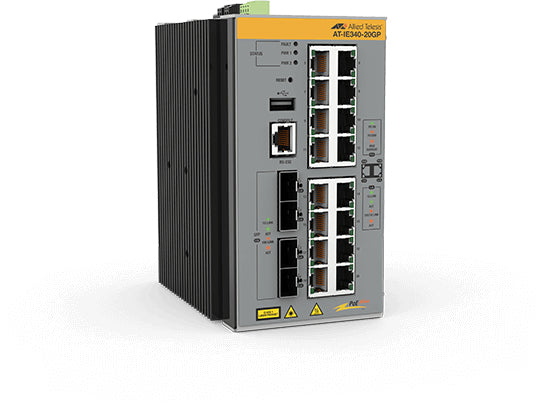

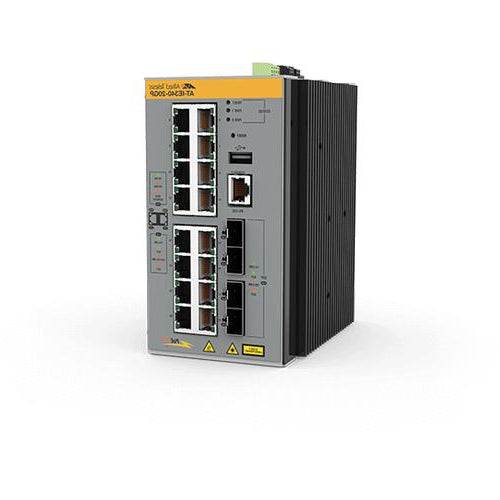

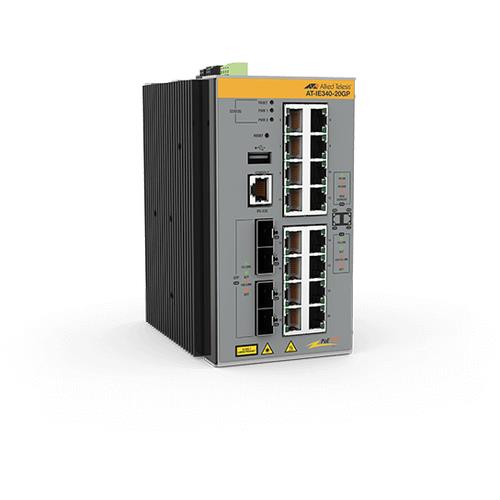

Allied Telesis AT-IE340-20GP-80 Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey

Allied Telesis AT-IE340-20GP-80 Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey

£1,809.06 GBP
Sale price: £1,809.06 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • 16-port PoE+ industrial switch.
  • Fanless, rugged, DIN/wall mountable.
Out of stock
EAN: 767035217550
SKU: AT-IE340-20GP-80
Vendor: Allied Telesis
Order within xx hours for delivery on
Quantity
  • Ports: 16 x 10/100/1000T PoE+ (RJ-45)
  • Uplinks: 4 x 100/1000X SFP ports
  • Enclosure: Aluminium/sheet metal shell, fanless design
  • Mounting: DIN rail or wall mountable
  • Dimensions (WxDxH): 91 x 139 x 153 mm (3.58 x 5.47 x 6.02 in)
  • Weight: ~2.34 kg (5.16 lbs) for DIN rail mount
  • One IE340-20GP switch unit
  • A Quick Installation Guide
  • Dust covers
  • One 4-pin connector
  • Two 2-pin connectors
  • One DIN rail mount bracket
  • Wall mount kits

Datasheet

Overview

The Allied Telesis AT-IE340-20GP-80 is a ruggedized, managed Layer 3 industrial Ethernet switch designed for harsh environments, featuring sixteen Gigabit PoE+ ports and four SFP uplinks. It offers high-throughput networking with advanced security and management features.

Technical Features
  • Port Configuration: 16 x 10/100/1000T PoE+ copper ports and 4 x 100/1000X SFP fiber uplinks
  • Performance: 40 Gbps switching capacity with 29.7 Mpps forwarding rate
  • Rugged Design: Fanless, IP30 rated, operating range -40°C to 75°C
  • Power: Redundant inputs, 240W total PoE budget, dynamic allocation
  • Management & Security: AlliedWare Plus OS, web GUI, CLI, SNMP, AMF Plus, ACLs, DHCP snooping, port-based authentication
  • Industrial Protocols: PROFINET certified, supports Modbus/TCP for automation
