Startech 8 Port USB to Serial RS232 Adapter Hub
- Rack-mountable design
- 256-byte transmit
Product Specification
Box Content
Documents
Overview

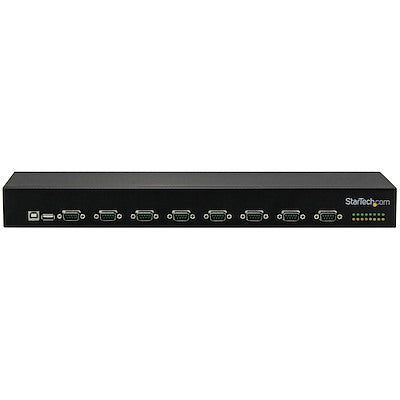

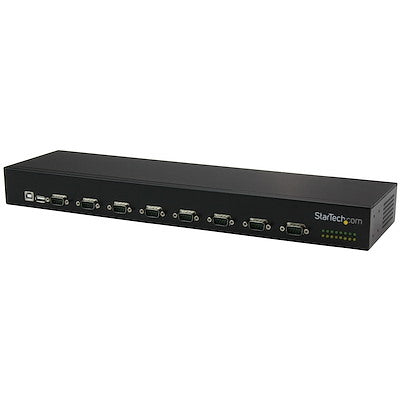

This 8-port USB-to-serial adapter hub provides an easy and cost-efficient way to add RS232 serial capability to your industrial setting. It features a sturdy, rack-mountable chassis, and supports daisy chaining, so you can connect multiple hubs together to increase your serial device port count. This rack-mountable USB serial hub (FTDI) lets you add eight serial ports (RS232), with full control from your desktop or laptop computer system using a single USB port. The daisy-chain function gives you a cost-effective and scalable way to increase your serial port count and expand as your needs grow, without investing in a more expensive serial hub. Providing full control of your serial components from a single device, the USB serial hub is ideal for a multitude of applications including industrial automation, self-serve automated kiosks, and monitoring of cameras and security systems.
Technical Features
- RS232 Interfaces: Gain eight RS232 serial port interfaces through a single USB port
- Daisy Chain: Connect multiple hubs together through daisy chain functionality
- Baud Rate: 921.6 Kbps per port
- Design: Rack-mountable with durable all-metal chassis
- Operating Temperature: -40°C to 85°C (-40°F to 185°F)
- FIFO Buffer: 256-byte transmit, 128-byte receive
- COM Port Retention: Maintains port assignments across reboots
