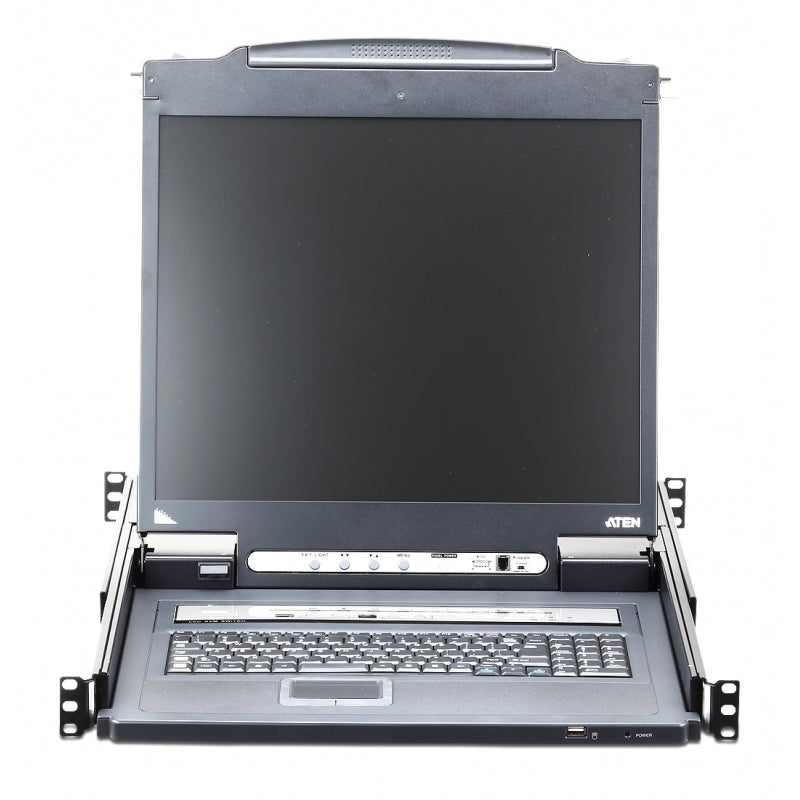

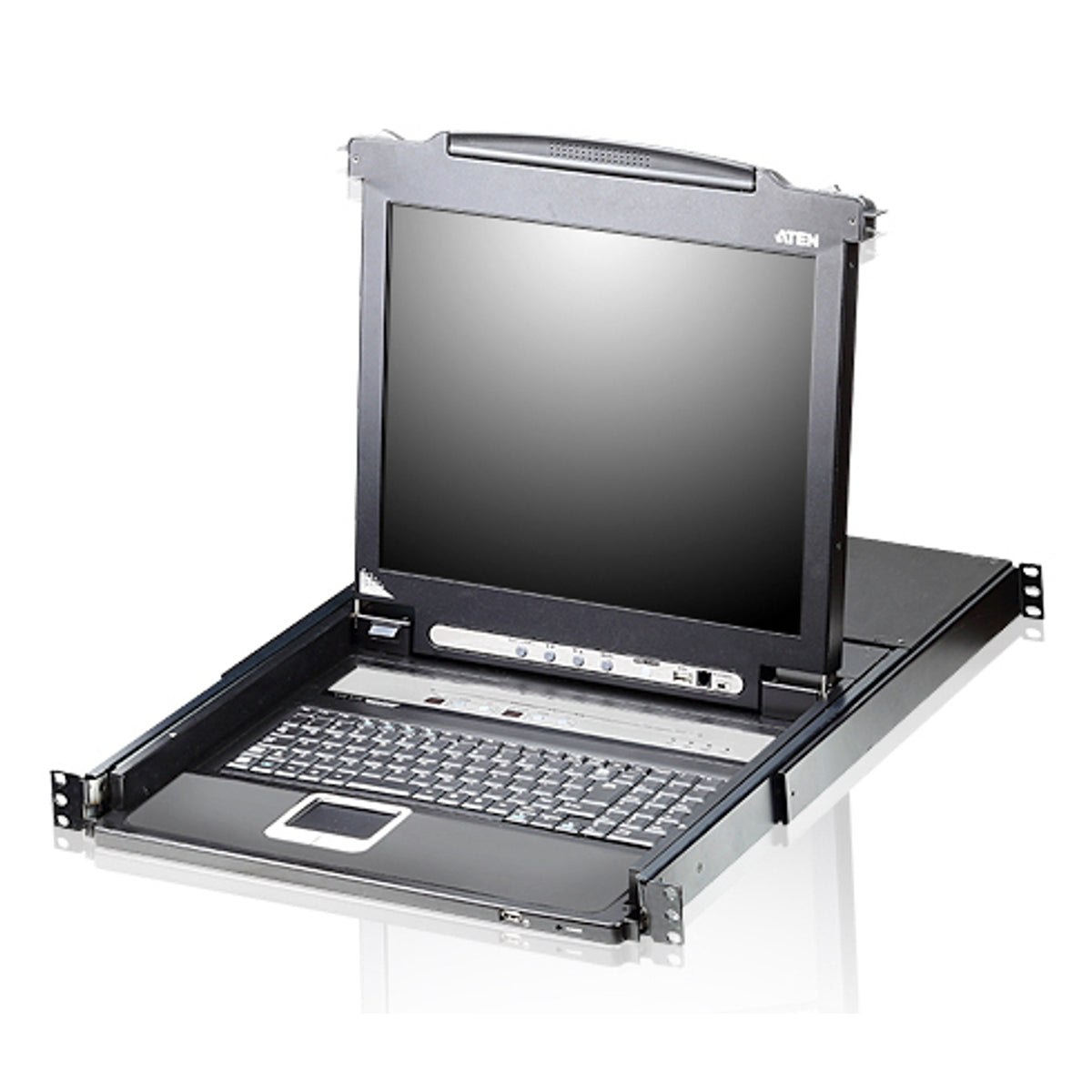

Aten 8 port Combo(PS/2 & USB) 1U Slideway 17' INCH' LCD KVMP Switch Daisy Chain

Aten 8 port Combo(PS/2 & USB) 1U Slideway 17' INCH' LCD KVMP Switch Daisy Chain

£1,098.04 GBP
Sale price: £1,098.04 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • Fingerprint Option
  • Space-Saving Design
In stock, 11 units
EAN: 4719264642449
SKU: 10054827
Vendor: Aten
Order within xx hours for delivery on
Quantity
  • Computer Connections: 8 or 16 direct; up to 256 or 512 via daisy-chain.
  • Port Selection: OSD, Hotkeys, Pushbuttons.
  • Console Ports: 1 x SPHD-18 Male (Yellow), 1 x USB Type-A Female (White).
  • KVM Ports: 8 or 16 x SPHD-15/17 Female (Yellow).
  • Daisy-chain Port: 1 x DB-25 Male (Black).
  • Firmware Upgrade Port: 1 x RJ-11 Female (Black).
  • Power: 1 x 3-prong AC Socket.
  • USB Port: 1 x USB Type-A Female.
  • Integrated KVM console
  • Rack mounting kit
  • Custom KVM cables
  • Custom console cable
  • Firmware upgrade cable
  • Power adapter or power cord
  • Grounding wire
  • Manuals and guides

Datasheet

Overview

The CL5708 / CL5716 Slideaway™ LCD KVM Switch series are control units that allow access to multiple computers from a single PS/2 or USB KVM (keyboard, video, and mouse) console. A single CL5708 or CL5716 can control up to 8 or 16 computers. As many as 31 additional KVM switches can be daisy-chained to the CL5708 / CL5716, so that up to 512 computers can all be controlled from a single KVM console.

Technical Features
  • LED Illumination Light: Exclusive ATEN design for clear keyboard and touchpad visibility in low-light environments.
  • Integrated KVM Console: 17" or 19" LED-backlit LCD monitor in a Slideaway™ housing.
  • Fingerprint Option: Available models with or without Fingerprint Identification Reader.
  • Space-Saving Design: Up to two consoles control 8 or 16 computers from one bus.
  • Daisy-Chain Expansion: Connect up to 31 additional units to control 256 (CL5708) or 512 (CL5716) computers. Compatible with ACS1208A, ACS1216A, CS1708A, and CS1716A switches.
  • Dual Interface: Supports PS/2 and USB keyboards and mice for both console and connected computers.
  • USB Access: LCD module USB port enables access to USB peripherals from any connected computer.
  • Adjustable LCD Module: Rotates up to 115° for comfortable viewing.
  • Multiplatform Support: Compatible with Windows, Linux, Mac, and Sun systems.
  • Multimedia Keyboard Support: Works with PC, Mac, and Sun USB multimedia keyboards.
  • Auto Interface Detection: Automatically detects PS/2 or USB connections.
  • Keyboard/Mouse Emulation: Ensures smooth switching and simultaneous booting of multiple computers.
