501332E

501332E

£288.84 GBP
Sale price: £288.84 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • Landline Alternative
  • Power Backup
Out of stock
EAN: 8595159522234
SKU: 501332E
Vendor: 2N
Order within xx hours for delivery on
Quantity
  • Cellular Network: Supports quad-band GSM frequencies 850/900/1800/1900 MHz for global compatibility.
  • SIM Card: Compatible with both 3V and 1.8V SIM cards for flexible carrier options.
  • Antenna: Equipped with an SMA connector for connecting an external antenna to improve signal strength.
  • Power Supply: Operates using a 100–240 V / 12 V, 1 A power adapter for reliable performance.
  • Dimensions: Compact design measuring 163 × 157 × 38 mm, suitable for various installation environments.
  • Operating Temperature: Designed to function effectively within a temperature range of 0°C to 45°C.
  • EasyGate unit
  • Antenna (with cable)
  • Wall-fixing kit
  • RJ11 cable
  • USB cable
  • EU PSU
  • Quick start guide

Datasheet

Overview

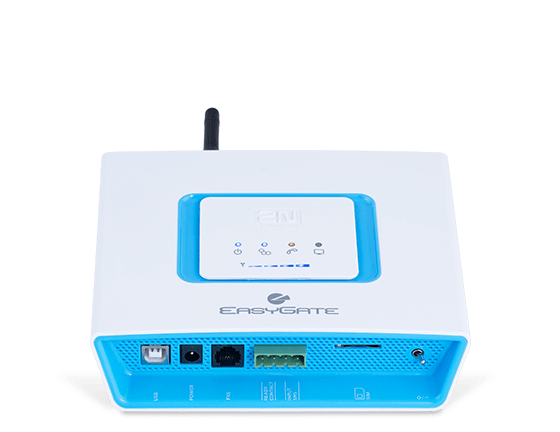

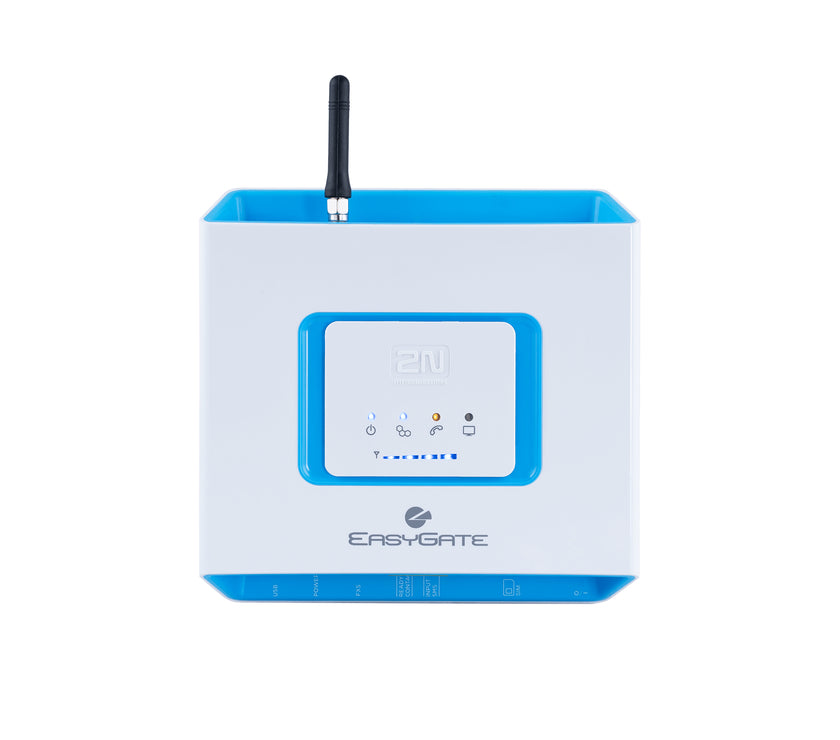

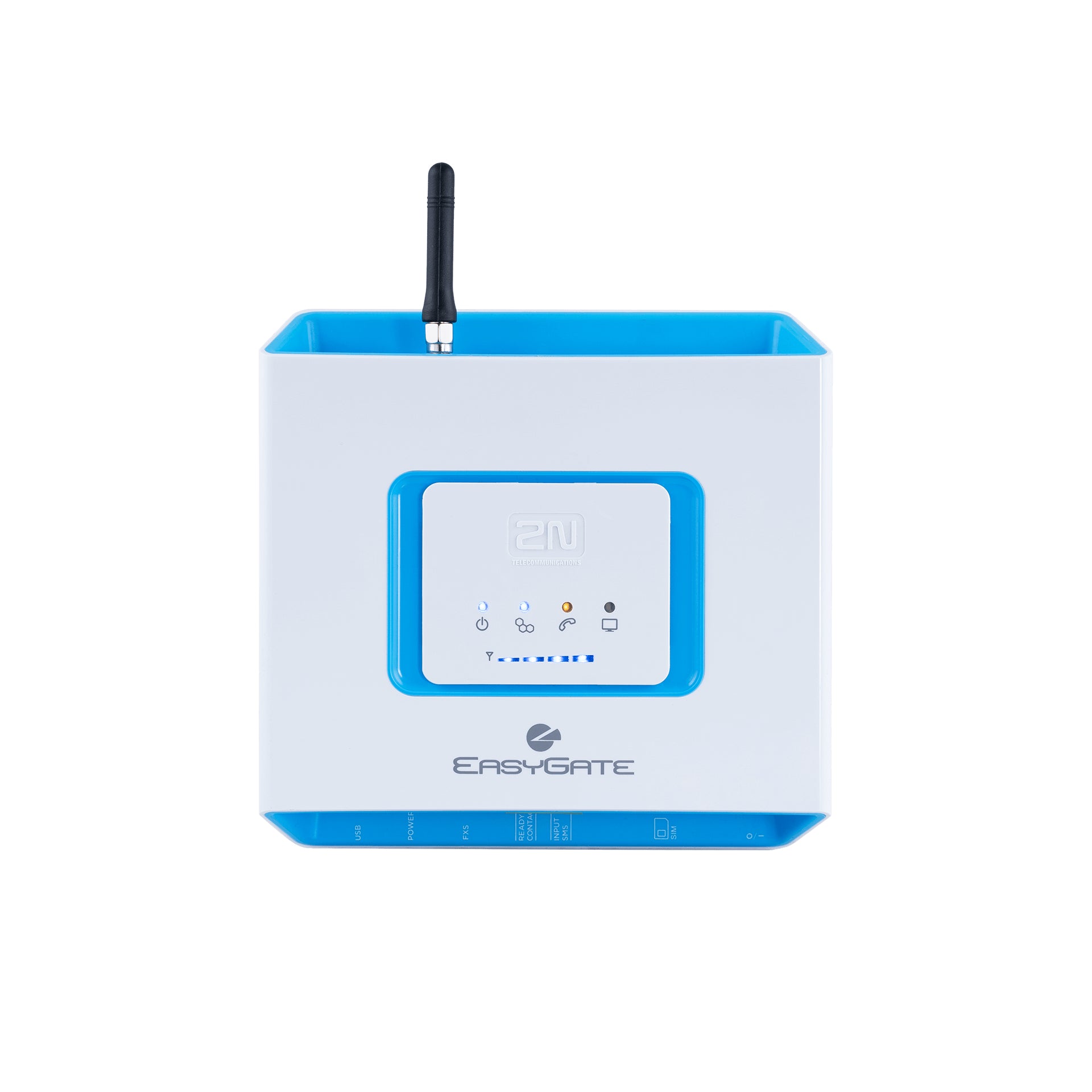

The 2N EasyGate PRO is a single-line analogue GSM gateway that transmits calls and text messages. Connect it to an analogue 2-wire elevator phone and ensure that emergency communication from the elevator is always possible. Or, use it as a replacement for landlines!
Contact Our Specialists.

Technical Features
  • Landline Alternative: Enables voice communication where traditional landlines are unavailable, ideal for GSM-based systems.
  • Emergency Communication: Provides a dependable connection for emergency calls, particularly suitable for elevators and critical areas.
  • SMS Notifications: Automatically sends alerts for key events such as power loss, low battery, or other system warnings.

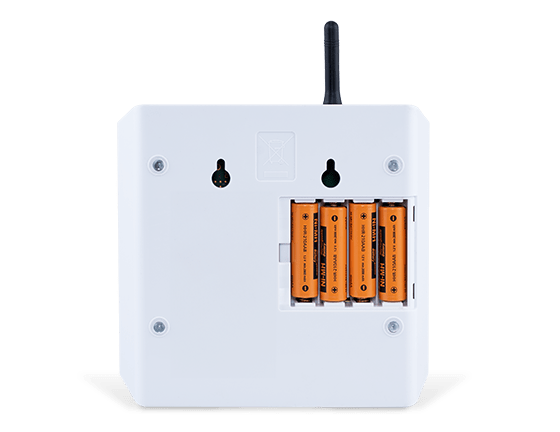

  • Power Backup: Powered by four AA batteries, offering up to 4 hours of standby time and 1 hour of talk time during outages.
  • Quick Installation: Plug-and-play setup — simply insert a SIM card, connect a phone, and power it on.
  • Signal Strength Indicator: LED indicators display current GSM network strength for easy positioning and troubleshooting.
  • Two-Wire Interface (FXS): Connects seamlessly to telephones or elevator communicators via a standard two-wire interface.
