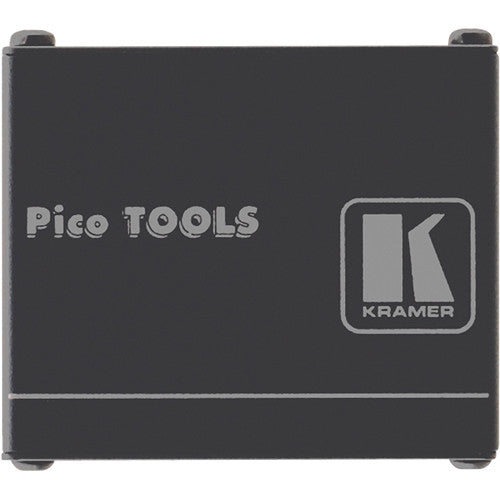

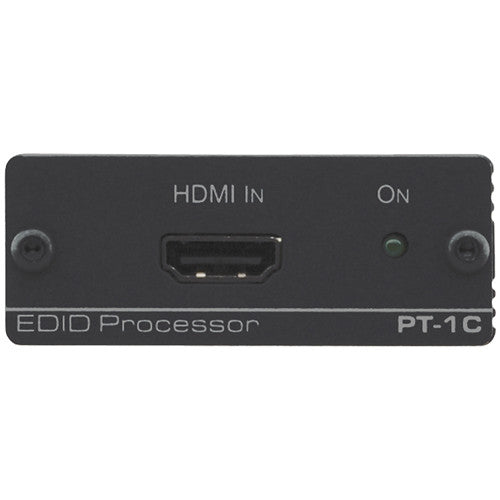

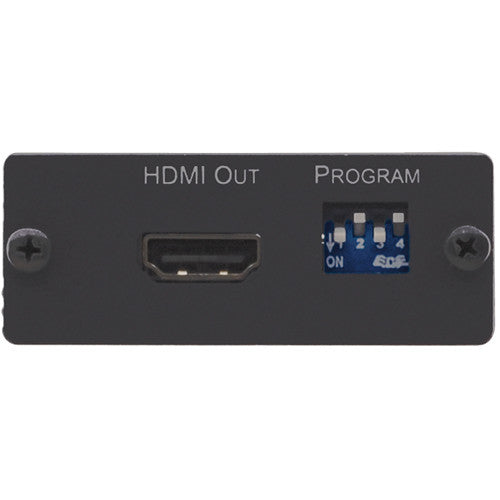

Kramer 4K 60Hz HDMI EDID Processor

Kramer 4K 60Hz HDMI EDID Processor

£98.84 GBP
Sale price: £98.84 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • Four program DIP−switches
  • LED power indicator
Out of stock
EAN: 7291063064167
SKU: 10274231
Vendor: Kramer
Order within xx hours for delivery on
Quantity
  • Input: 1 HDMI connector
  • Output: 1 HDMI connector
  • Max Data Rate: 17.82Gbps (5.94Gbps per data channel), 4K compatible
  • Standards Supported: Supports HDR10, HDMI and HDCP 2.2
  • Controls: 4 DIP–switches
  • Indicator: Power LED
  • Power Requirements: Takes power from the HDMI line
  • Operating Temperature: 0° to +40°C (32° to 104°F)
  • Storage Temperature: –40° to +70°C (–40° to 158°F)

Kramer PT-1C Pico TOOLS EDID Processor

Datasheet

Overview

The Kramer PT-1C is an EDID processor unit for HDMI signals. It allows you to lock EDID signals, and to choose to support or not support HDCP, multi-channel audio, or deep color signals that may or may not be compatible with the display. It features one HDMI input and one output and is powered via the HDMI signal so no power adapter is required. The unit is compact, and 4 units can be rack-mounted side−by−side in a 1U rack using the optional Kramer RK−4PT rack adapter.

Technical Features
  • Max. Data Rate: 17.82Gbps (5.94Gbps per data channel)
  • Max. Resolution: 4K@60Hz (4:4:4)
  • HDMI Compatible: Yes
  • Compliance with HDMI Standards: HDR10, HDCP 2.2
  • Line Powered Device: Power taken from the HDMI line, no power supply is needed
  • Indicator: Power LED
  • Controls: Four program DIP–switches control desired functions
