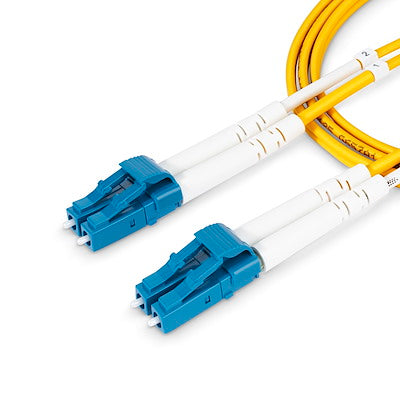

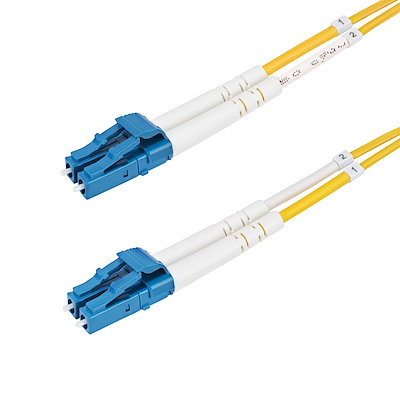

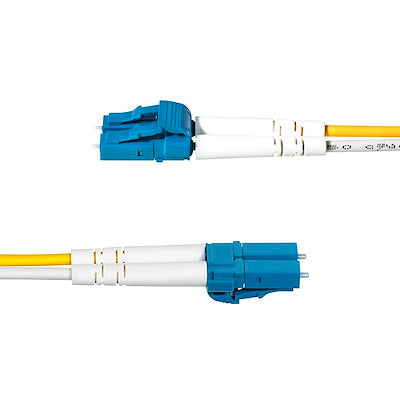

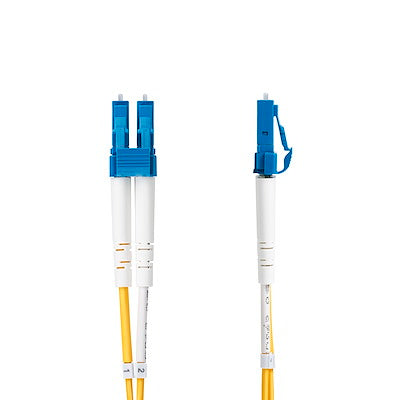

Startech 40m LC/LC OS2 Single Mode Fiber Cable

Startech 40m LC/LC OS2 Single Mode Fiber Cable

£37.16 GBP
Sale price: £37.16 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • LSZH Cable Jacket
  • Single Mode Fiber Patch
In stock, 6 units
EAN: 65030901819
SKU: 10433198
Vendor: Startech
Order within xx hours for delivery on
Quantity
  • Length: 40 meter (131.2 foot)
  • Fiber Type: OS2 Single Mode
  • Connector: LC/LC (UPC) Duplex
  • Speed: 100Gbps
  • Core/Cladding: 9/125um
  • Wavelength: 1260-1625nm Laser Optimized
  • Insertion Loss: ≤0.3dB
  • Return Loss: ≥55dB
  • Cable OD: 2mm
  • Bend Radius: 10mm (0.39in) loaded/unloaded
  • 1 - 40m OS2 Single Mode Fiber Optic Cable - LC to LC
  • 1 - Test Report

Datasheet

Overview

OS2 LC to LC Single Mode Duplex Fiber Optic Patch cable facilitates connectivity across 100G networks. It supports Coarse Wavelength Division Multiplexing (CWDM) across an extended wavelength range of 1260-1625nm, improving channel isolation for optimal signal strength over long distances. This 9/125µm Single Mode fiber cable supports 1260-1625nm laser-optimized sources and is ideal for critical connections between servers, switches, and data center equipment. It is backward compatible with OS1 networks, ensuring a reliable connection in legacy fiber environments.

Technical Features
  • OS2 Fiber Cable: Single Mode OS2 cable immune to EMI; optimized for 100Gbps networks; CWDM supports 1260-1625nm wavelength for long-distance channel isolation
  • Quality Construction: LC/LC-UPC ends for improved return loss; color-coded connectors; bend-insensitive fiber core in Aramid-reinforced jacket with 10mm bend radius
  • Safety and Reliability: Individually tested; includes test report; LSZH jacket emits low toxic fumes; attenuation <0.35dB/km
  • Compatibility: Supports 100G networks; backward compatible with OS1; high micro-bend resistance for tight bends; ideal for servers, switches, and data center connections
