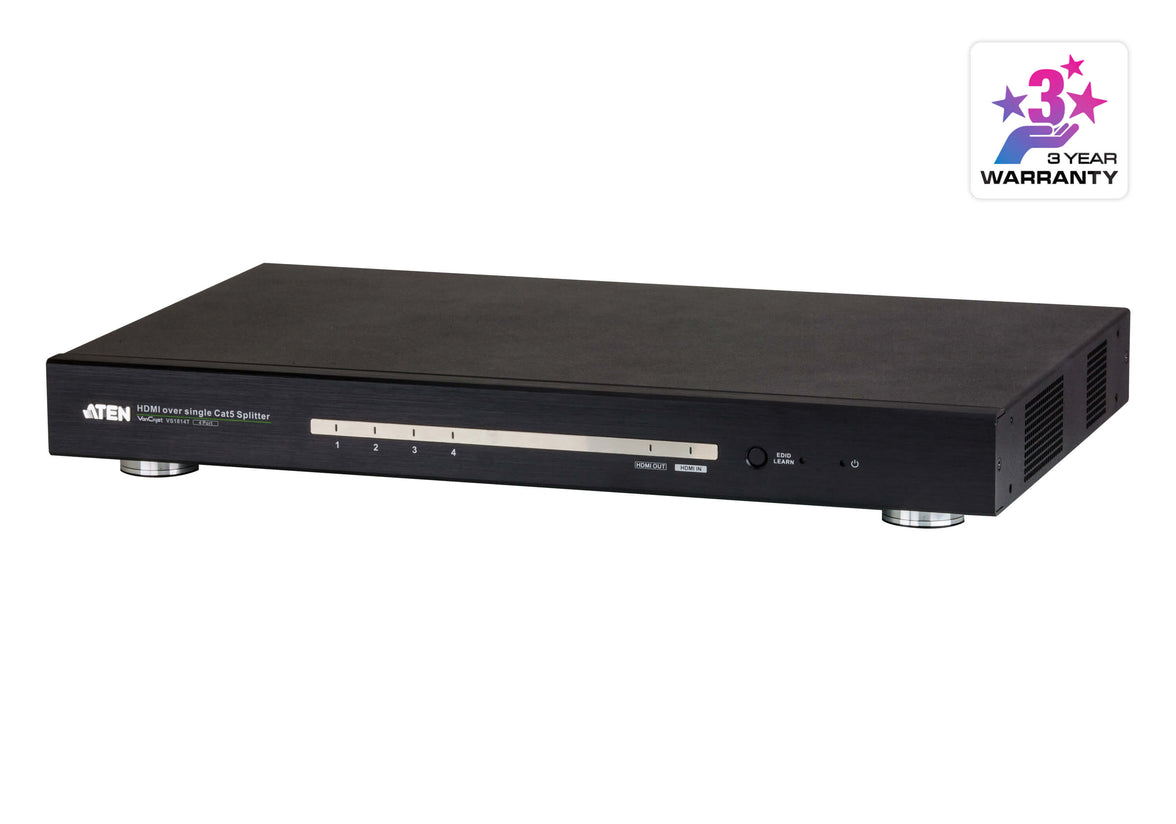

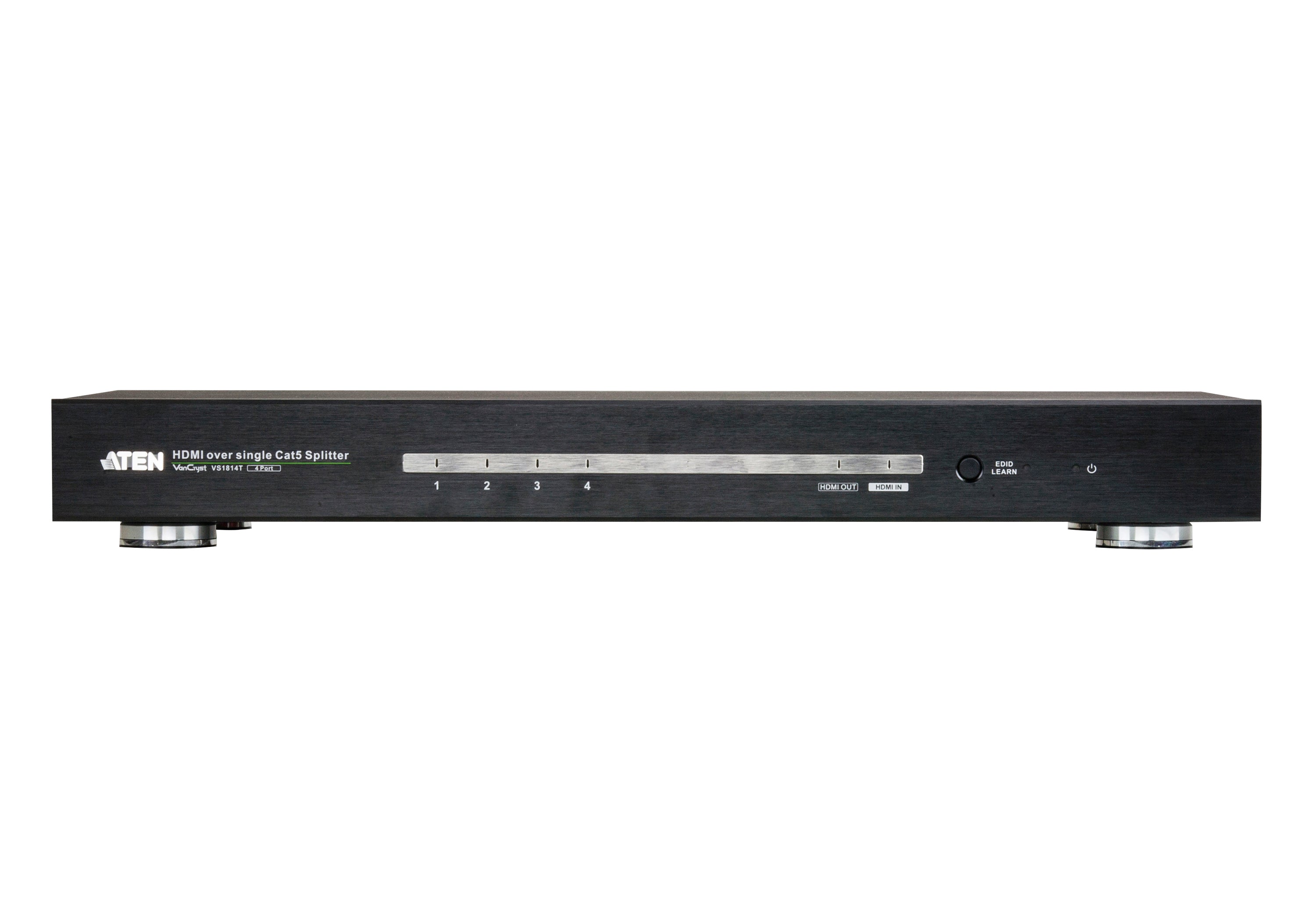

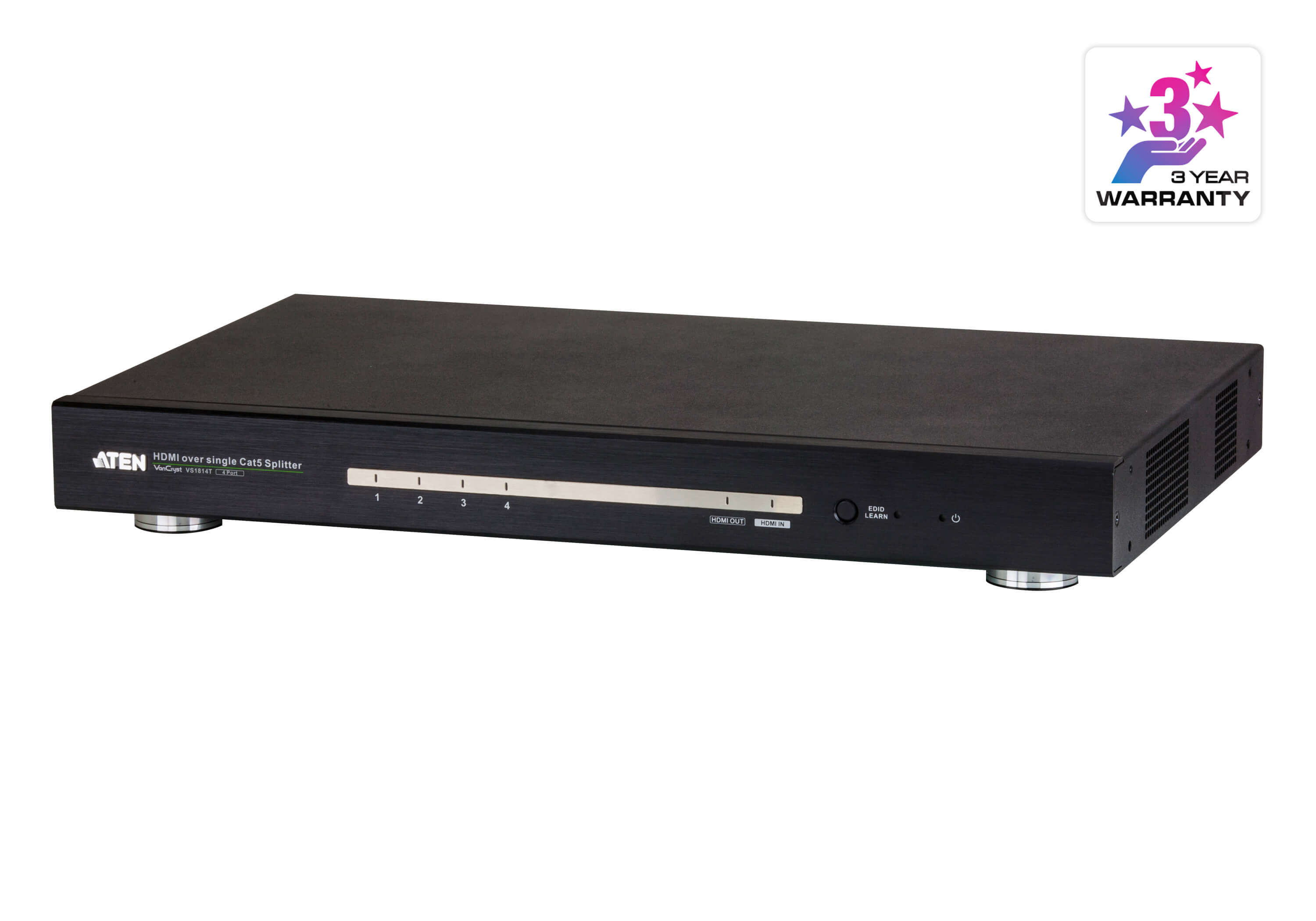

4 PORT HDBT HDMI CAT5 SPLITTER

4 PORT HDBT HDMI CAT5 SPLITTER

£1,463.20 GBP
Sale price: £1,463.20 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • The VS1814T 4-Port HDMI HDBaseT Splitter allows one HDMI input to be displayed on 4 screens.
  • Fast and efficient switching of high-definition video.
  • Incorporating suggested HDBaseT receivers*, it can deliver HDMI content up to 100 m away from the source.
  • Ideal for installations requiring multiple display outputs from a single source.
In stock, 1 unit
EAN: 4719264641343
SKU: VS1814T
Vendor: ATEN
Order within xx hours for delivery on
Quantity
  • Video Input

    Interfaces: 1 x HDMI Type A Female (Black)
    Impedance: 100 Ω
    Max. Distance: 1.8 m

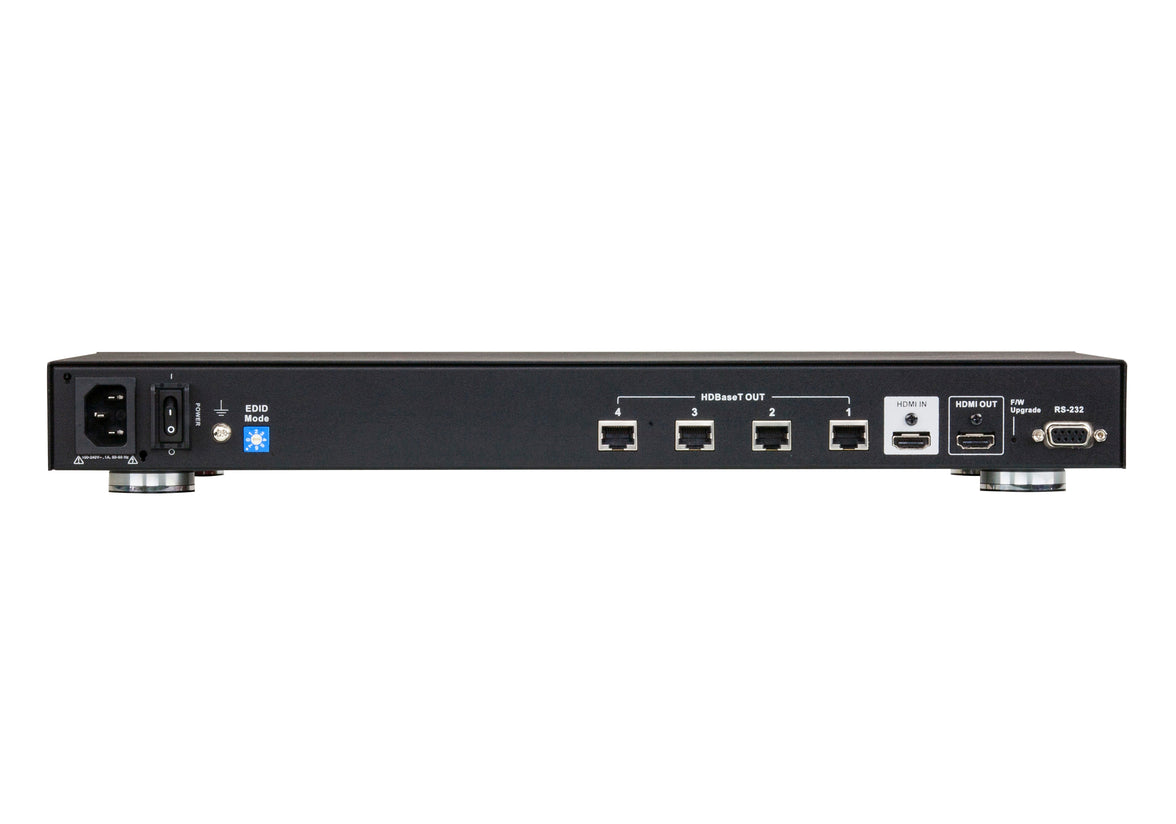

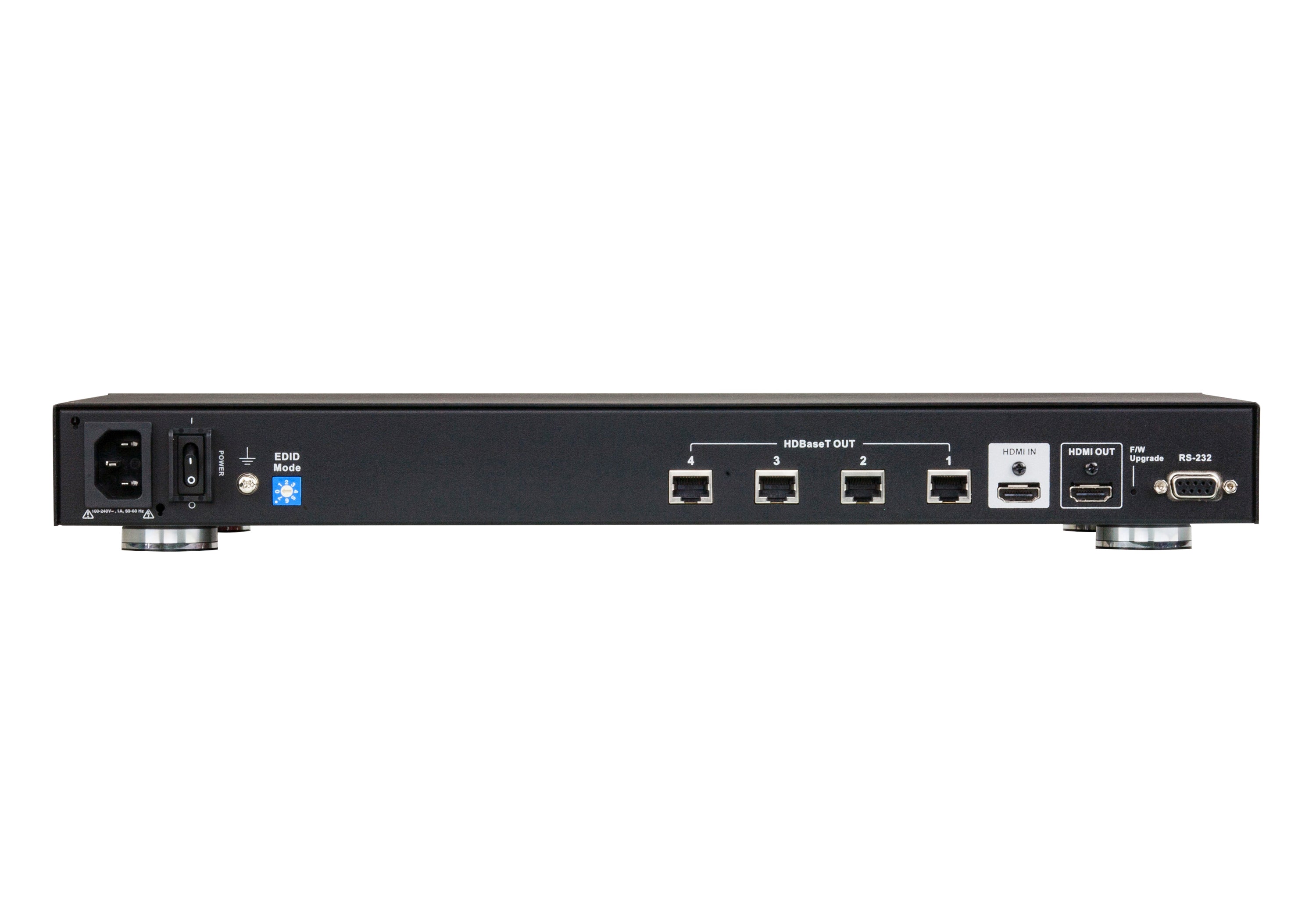

  • Video Output

    Interfaces: 1 x HDMI Type A Female (Black) - Local Output
    4 x RJ-45 Female
    Impedance: 100 Ω

  • Video

    Max. Data Rate: 10.2 Gbps (3.4 Gbps Per Lane)
    Max. Pixel Clock: 340 MHz
    Compliance: HDMI (3D, Deep Color, 4K)
    HDCP Compatible
    Consumer Electronics Control (CEC)
    HDBaseT Compatible
    Max. Resolution:

    Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0)
    4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4) (Depends on connected receiver)


    Max. Distance: Up to 100 m (Depends on connected receiver)

  • Audio

    Input: 1 x HDMI Type A Female (Black)
    Output: 1 x HDMI Type A Female (Black)

  • Control

    RS-232: Connector: 1 x DB-9 Female (Black)
    Serial Control Pin Configurations: Pin2 = Tx, Pin3 = Rx, Pin5 = Gnd
    Baud Rate and Protocol: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No
    EDID Settings: Default / Port 1 / Auto / Learn

  • Connectors

    Power: 1 x 3-Prong AC Socket (Black)
    Power Consumption: AC110V: 18.2W: 85 BTU/h; AC220V: 18.2W: 85 BTU/h

  • Note

    The measurement in Watts indicates the typical power consumption of the device with no external loading.
    The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

  • Environmental

    Operating Temperature: 0 - 50°C
    Storage Temperature: -20 - 60°C
    Humidity: 0 - 80% RH, Non-Condensing

  • Physical Properties

    Housing: Metal
    Weight: 3.47 kg (7.64 lb)
    Dimensions (L x W x H): 43.24 x 26.11 x 4.40 cm (17.02 x 10.28 x 1.73 in.)
    Carton Lot: 1 pcs

  • 1x VS1814T 4-Port HDMI HDBaseT Splitter
  • 1x Power Cord
  • 1x Mounting Kit
  • 1x User Instructions

Datasheet

Overview

The VS1814T 4-Port HDMI HDBaseT Splitter provides a fast and efficient way of switching high definition video from one input source to 4 displays. Incorporating suggested HDBaseT receivers*, the VS1814T can be a complete solution ideal for any installation that requires HDMI content to be delivered to multiple destinations, located up to 100m away from the source.

Technical Features
  • One HDMI input to 4 HDBaseT outputs via a Cat 5e/6 cable
  • Offers local HDMI output
  • Extends displays up to 100 m
  • Implements HDBaseT extension technology using only one Cat 5 cable to connect the transmitter and receiver
  • Anti-jamming - resists signal interference during high-quality video transmissions using HDBaseT technology
  • HDMI (3D, Deep Color, 4kx2k); HDCP 1.4 Compatible
  • Supports Dolby True HD and DTS HD Master Audio
  • Consumer Electronics Control (CEC) support
  • Built-in bi-directional RS-232 serial remote port for high-end system control
  • Supports resolutions up to Ultra HD 4kx2k and 1080p Full HD
  • Supports up to 340 MHz bandwidth for high-performance video
  • EDID mode selection
  • Rack-mountable
