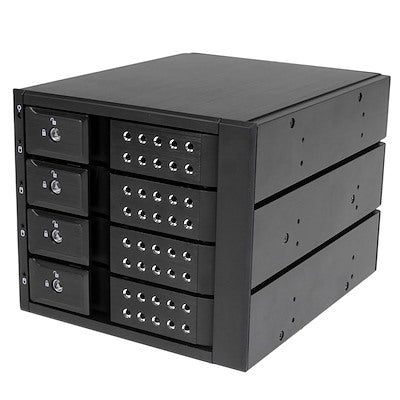

Startech 4 Bay Aluminum Trayless Hot Swap Mobile Rack

Startech 4 Bay Aluminum Trayless Hot Swap Mobile Rack

£95.82 GBP
Sale price: £95.82 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • Hot-Swappable
  • Removable 4-Drive Backplane
In stock, 4 units
EAN: 65030859547
SKU: 10038528
Vendor: Startech
Order within xx hours for delivery on
Quantity
  • Drive Connectors: 4 - SFF-8482 (29 pin, Data & Power, Internal SAS)
  • Host Connectors: 2 - SATA Power (15 pin), 4 - SATA (7 pin, Data)
  • Operating Temperature: 0°C to 55°C (23°F to 95°F)
  • Storage Temperature: -20°C to 60°C (-4°F to 122°F)
  • Humidity: 5%~85% RH
  • Interface: SATA, SAS
  • Front Door Key Lock: Yes
  • Number of Drives: 4
  • Drive Size: 3.5in
  • Compatible Drive Types: SAS & SATA
  • 1 - 4 Drive Trayless 3.5in SATA/SAS Mobile Rack
  • 8 - Installation screws
  • 2 - Drive bay keys
  • 4 - SATA cables
  • 1 - Instruction manual

Datasheet

Overview

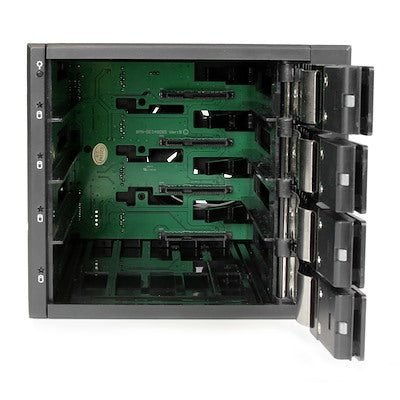

The HSB4SATSASBA Removable 4-drive Backplane makes inserting and removing drives fast and easy, by turning three 5.25" bays into a hot-swappable interface for up to four 3.5” SATA or SAS hard drives (HDD). For added versatility, the hot swap bay can interface with SATA I/II/III and SAS I/II hard drives -- an ideal solution for enterprise system applications. For a quick and secure method of installing and removing drives, the backplane features ejection levers and a key-lock design. To help prevent drive failure, the bay provides drive cooling with a built-in fan and excellent heat dissipation with a vented aluminum enclosure.

Technical Features
  • Increased Productivity: Converts three 5.25" bays into a hot-swappable interface for up to four 3.5” SATA or SAS hard drives (HDD)
  • Maximum Compatibility: Interfaces with SATA I/II/III and SAS I/II drives; Power and status LEDs for each bay; Ideal for enterprise systems

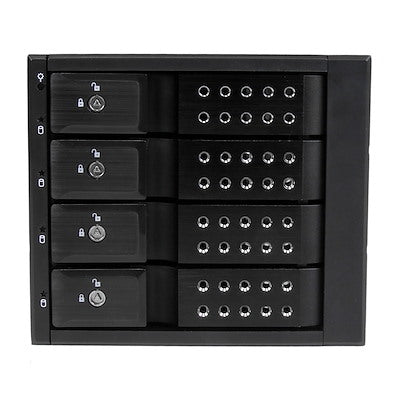

  • Easy to Use: Trayless hot swap design with individual ejection levers and key-lock design (includes two keys)

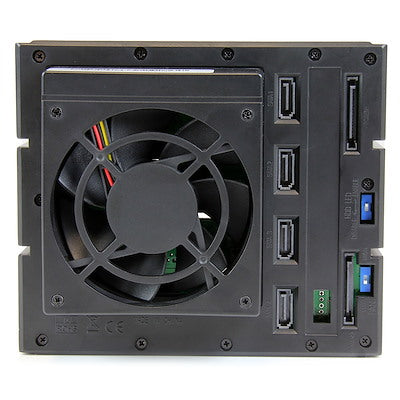

  • Maintain Optimal Temperature: Vented solid aluminum enclosure with built-in fan and speed control; UL VO flammability rated
