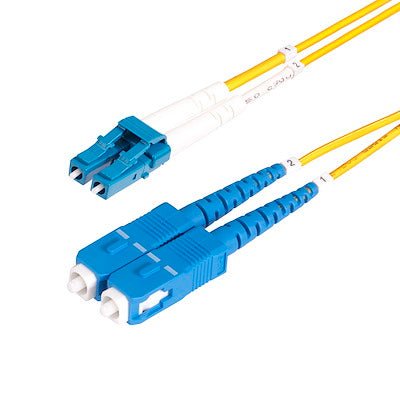

3m LC/SC OS2 Single Mode Fiber Cable

3m LC/SC OS2 Single Mode Fiber Cable

£14.28 GBP
Sale price: £14.28 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • LSZH cable jacket
  • Optimal performance
In stock, 5 units
EAN: 65030903295
SKU: 10435161
Vendor: Startech
Order within xx hours for delivery on
Quantity
  • Length: 3 m (9.8 foot)
  • Fiber type: OS2 Single Mode
  • Connector type: LC/SC (UPC) Duplex
  • Speed: 100Gbps
  • Core/cladding: 9/125 µm
  • Wavelength: 1260-1625 nm laser optimized
  • Insertion loss: ≤0.3 dB
  • Return loss: ≥55 dB
  • Cable outer diameter: 2 mm
  • Bend radius: 10 mm (0.39 in) loaded/unloaded
  • 1 - 3m OS2 Single Mode Fiber Optic Cable - LC to SC
  • 1 - Test Report

Datasheet

Overview

OS2 LC to SC Single Mode Duplex Fiber Optic Patch cable facilitates connectivity across 100G networks. It supports Coarse Wavelength Division Multiplexing (CWDM) across an extended wavelength range of 1260-1625nm, improving channel isolation for optimal signal strength over long distances. This 9/125µm Single Mode fiber cable supports 1260-1625nm laser-optimized sources and is ideal for critical connections between servers, switches, and data center equipment. It is backward compatible with OS1 networks, ensuring a reliable connection in legacy fiber environments.

Technical Features
  • Type: OS2 Single Mode Fiber Cable; immune to EMI and optimized for 100Gbps networks; CWDM 1260-1625nm wavelength support for extended channel isolation
  • Construction: LC/SC-UPC connectors for improved return loss; numbered for polarity; bend-insensitive fiber core in Aramid-reinforced jacket with 10mm loaded bend radius
  • Safety & reliability: Individually tested with report; LSZH jacket emits low toxic fumes; safe for enclosed or poorly ventilated spaces; attenuation under 0.35 dB/km
  • Compatibility: Supports 100G networks; backward compatible with OS1; high micro-bend resistance for tight bends; ideal for servers, switches, and data center equipment
