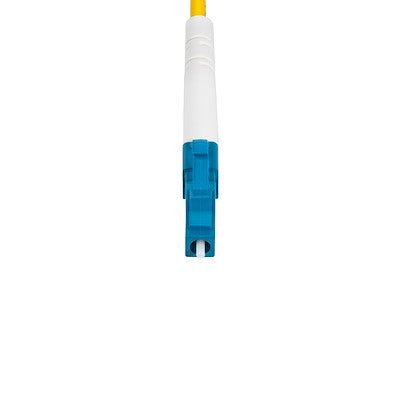

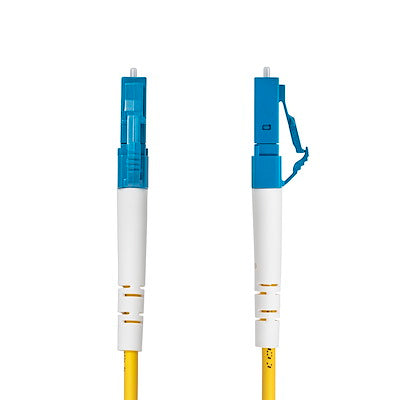

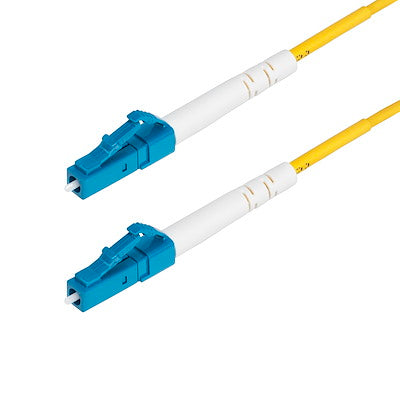

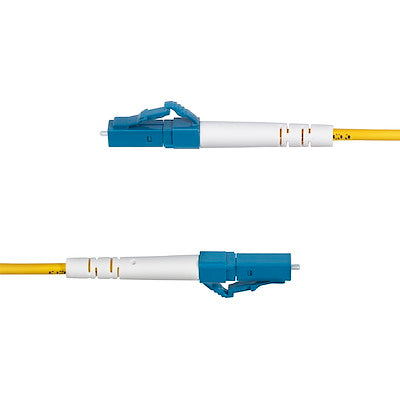

Startech 30m LC/LC OS2 Single Mode Fiber Cable

Startech 30m LC/LC OS2 Single Mode Fiber Cable

£32.35 GBP
Sale price: £32.35 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • Optimal Performance
  • LSZH Cable Jacket
In stock, 6 units
EAN: 65030906692
SKU: 10435129
Vendor: Startech
Order within xx hours for delivery on
Quantity
  • Length: 30 meter (98.4 foot)
  • Type: OS2 Single Mode
  • Connector: LC/LC (UPC) Simplex
  • Data Rate: 100Gbps
  • Fiber Core: 9/125um
  • Laser Optimization: 1260-1625nm
  • Insertion Loss: ≤0.3dB
  • Return Loss: ≥55dB
  • Cable OD: 2mm
  • Bend Radius: 10mm (0.39in) loaded/unloaded
  • 1 - Single Mode Fiber Cable - LC to LC
  • 1 - Test Report

Datasheet

Overview

OS2 LC to LC Single Mode Simplex Fiber Optic Patch cable facilitates connectivity across 40G/100G networks. It supports Coarse Wavelength Division Multiplexing (CWDM) across an extended wavelength range of 1260-1625nm, improving channel isolation for optimal signal strength over long distances. Connect to single-fiber networking devices including simplex patch panels, SFP transceivers, and fiber NICs. This 9/125µm OS2 simplex single mode fiber patch cord is backward compatible with OS1 networks, ensuring a reliable connection in legacy fiber environments.

Technical Features
  • Simplex OS2 Cable: Single Mode fiber, EMI immune, supports 40G/100Gbps networks and bi-directional transmission over a single fiber
  • Quality Construction: LC/LC-UPC ends, bend-insensitive core, Aramid-reinforced jacket, 10mm bend radius
  • Safety and Reliability: Individually tested, LSZH jacket, attenuation <0.35dB/km, safe for enclosed spaces
  • Compatibility: Supports 40G/100G networks, backward compatible with OS1, high micro-bend resistance, ideal for point-to-point setups
