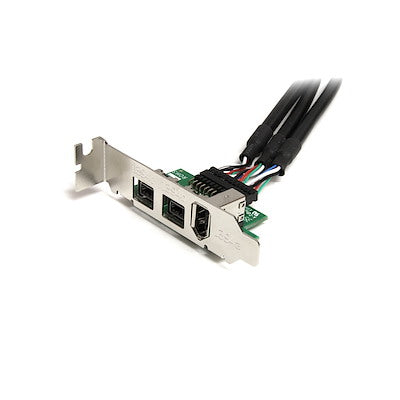

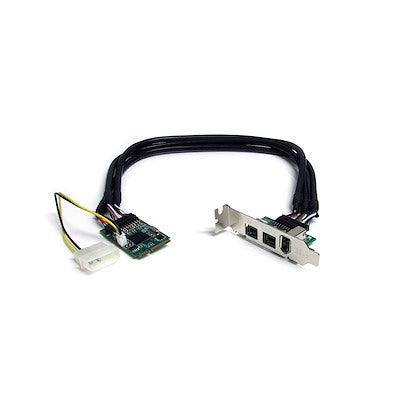

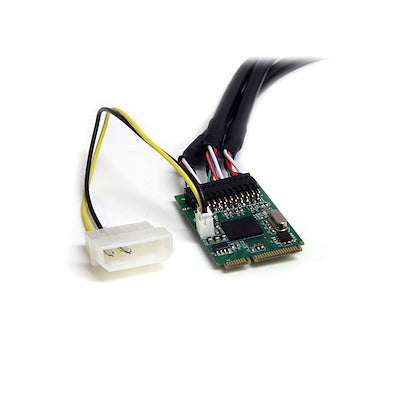

3 Port 2b 1a 1394 Mini PCI Express FireWire Card Adapter

3 Port 2b 1a 1394 Mini PCI Express FireWire Card Adapter

£31.67 GBP
Sale price: £31.67 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • Plug-and-Play
  • Hot-swap
In stock, 4 units
EAN: 65030842914
SKU: 10012051
Vendor: Startech
Order within xx hours for delivery on
Quantity
  • Connector Type(s): 1 - Mini PCI Express x1 (52 pin)
  • Internal Ports: 1 - LP4 (4 pin; Large Drive Power)
  • External Ports: 1 - FireWire 400 (6 pin, IEEE 1394a), 2 - FireWire 800 (9 pin, IEEE 1394b)
  • Operating Temperature: 0°C to 70°C (32°F to 158°F)
  • Storage Temperature: -54°C to 150°C (-65°F to 302°F)
  • 1 - Mini PCI Express FireWire card
  • 1 - Internal Data Cable
  • 1 - 4-pin LP4 Molex Adapter Cable
  • 1 - Full Profile Bracket
  • 1 - Video Editing Software CD
  • 1 - Instruction Manual

Datasheet

Overview

The MPEX1394B3 3-Port Mini PCI Express FireWire Card is a PCI Express to FireWire-800/FireWire-400 adapter that enables you to add external FireWire connectivity on very small form factor or embedded systems. The PCIe FireWire card provides two FireWire-800 ports and one FireWire-400 port, this adapter card supports the latest external FireWire storage devices at data transfer speeds of up to 800 Mbps. Using the Mini PCI Express (Mini Card) form factor, this adapter card is designed for use in the latest very small form factor computer systems, such as Mini-ITX or custom embedded solutions where a full-sized PCI Express card would not fit.

Technical Features
  • FireWire Ports: 2 external 9-pin FireWire-800 ports (up to 800 Mbps), 1 external 6-pin FireWire-400 port (up to 400 Mbps)
  • PCI Compliance: Compliant with PCI Express Mini Card specification 1.2
  • Power Support: Optional external power for high-powered FireWire devices
  • IEEE Compliance: Compliant with IEEE 1394b; backward compatible with IEEE 1394a-2000 and 1394-1995 standards
  • Ease of Use: Plug-and-Play and hot-swap compatible
