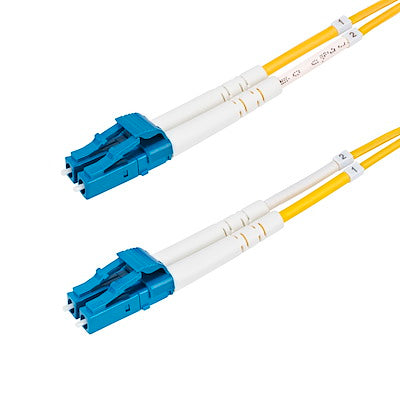

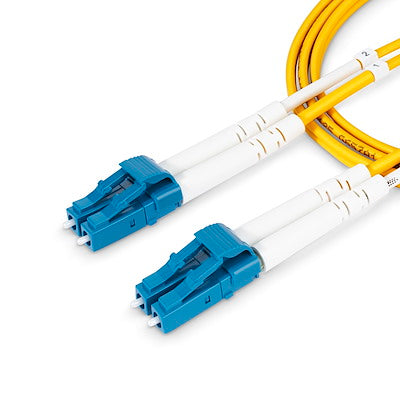

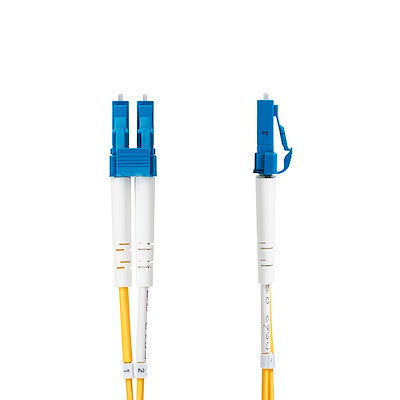

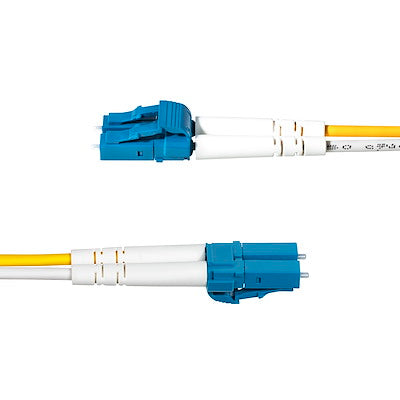

Startech 25m LC/LC OS2 Single Mode Fiber Cable

Startech 25m LC/LC OS2 Single Mode Fiber Cable

£31.54 GBP
Sale price: £31.54 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • Single Mode Fiber Cable
  • High-speed connectivity
In stock, 6 units
EAN: 65030901796
SKU: 10435121
Vendor: Startech
Order within xx hours for delivery on
Quantity
  • Brand: StarTech
  • Length: 25 meters (82 feet)
  • Fiber Type: OS2 Single Mode
  • Connector Type: LC/LC (UPC) Duplex
  • Data Rate: 100Gbps
  • Core/Cladding: 9/125um
  • Wavelength: 1260-1625nm Laser Optimized
  • Insertion Loss: ≤0.3dB
  • Return Loss: ≥55dB
  • Cable OD: 2mm
  • Bend Radius: 10mm (0.39in) loaded/unloaded
  • 1x 25m OS2 Single Mode Fiber Optic Cable - LC to LC
  • 1x Test Report

Datasheet

Overview

OS2 LC to LC Single Mode Duplex Fiber Optic Patch cable facilitates connectivity across 100G networks. It supports Coarse Wavelength Division Multiplexing (CWDM) across an extended wavelength range of 1260-1625nm, improving channel isolation for optimal signal strength over long distances. This 9/125µm Single Mode fiber cable supports 1260-1625nm laser-optimized sources and is ideal for critical connections between servers, switches, and data center equipment. It is backward compatible with OS1 networks, ensuring a reliable connection in legacy fiber environments.

Technical Features
  • OS2 FIBER CABLE: Single Mode OS2 fiber; immune to EMI; optimized for 100Gbps networks; CWDM supports 1260-1625nm wavelength for extended channel isolation
  • QUALITY CONSTRUCTION: LC/LC-UPC ends for improved return loss; numbered and color-coded connectors; bend-insensitive fiber in Aramid-reinforced jacket with 10mm bend radius
  • SAFETY AND RELIABILITY: Individually tested with report; LSZH jacket emits low toxic fumes; attenuation <0.35dB/km exceeds standards
  • COMPATIBILITY: Supports 100G networks; backward compatible with OS1; high micro-bend resistance; ideal for servers, switches, and data center equipment
