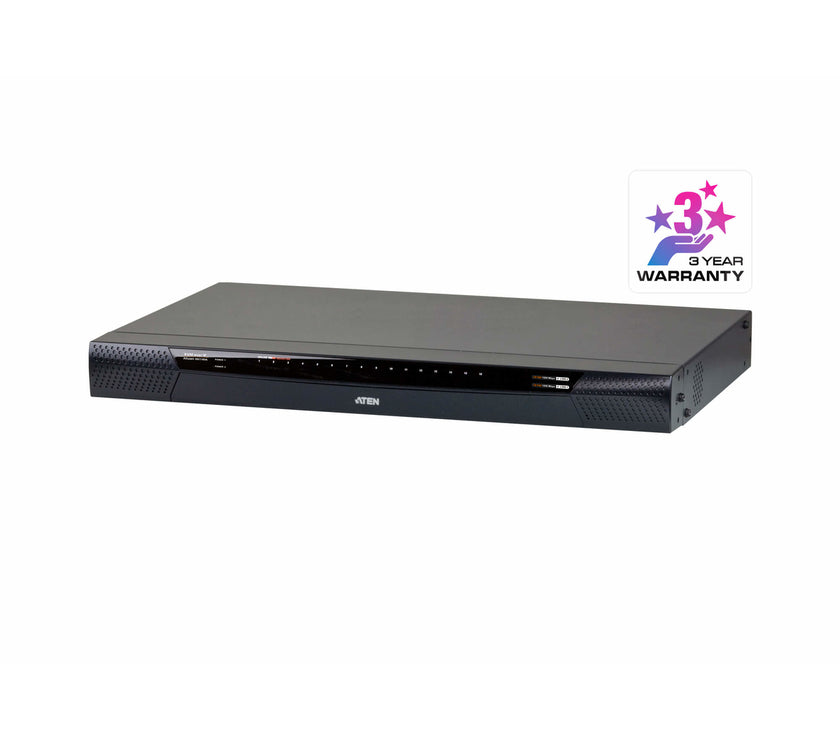

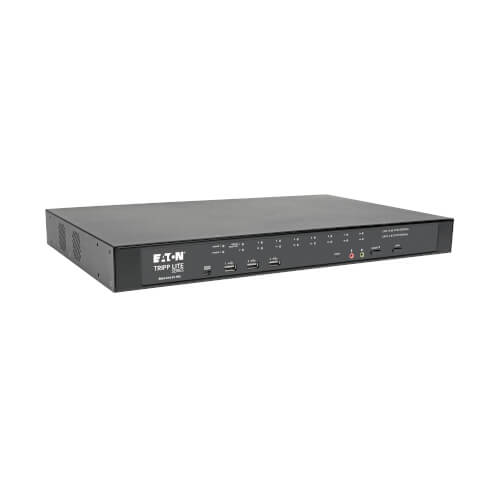

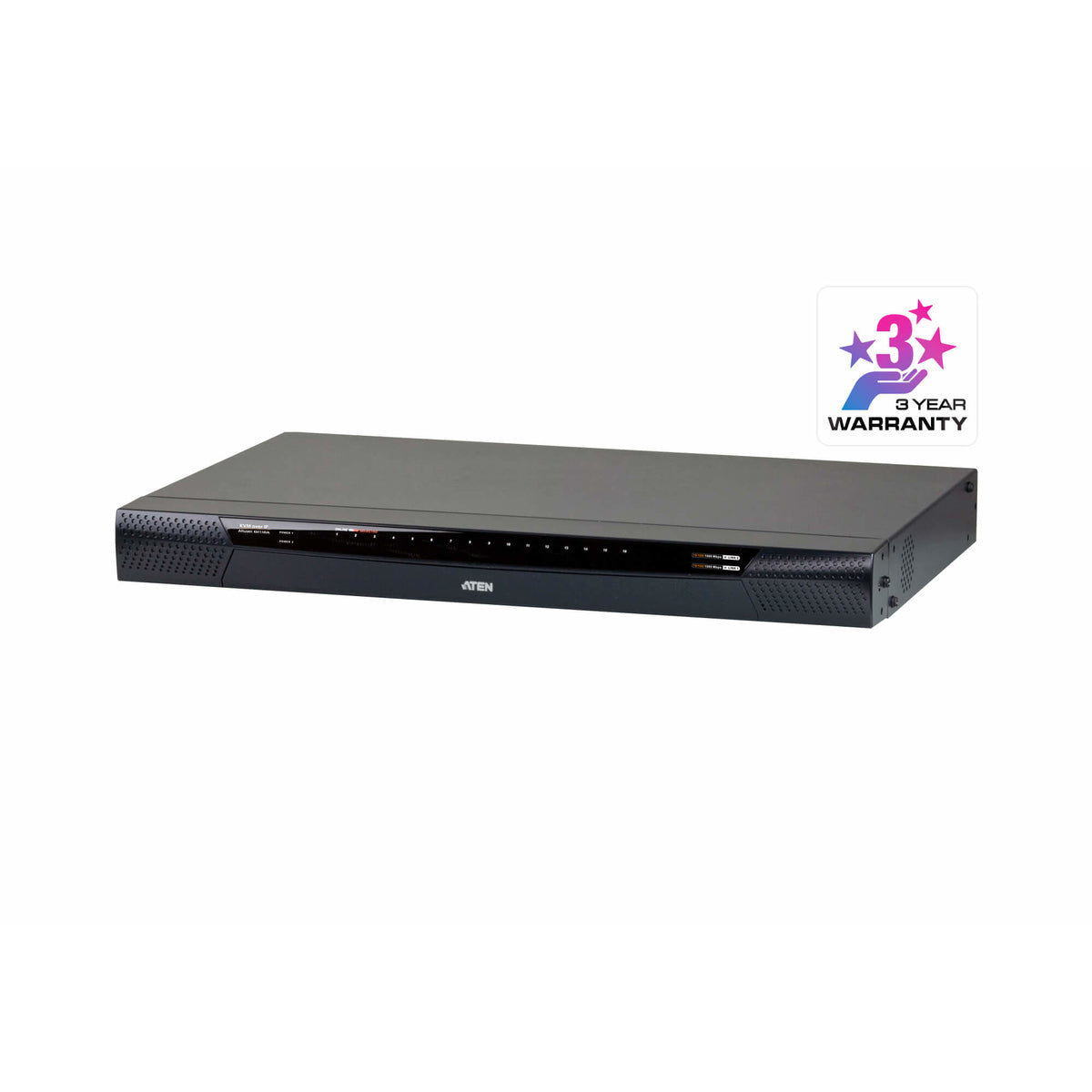

1Remote /1 Local 16 port CAT5 KVM over the NET Switch w Virtual Media & Audio & Redundant Power

1Remote /1 Local 16 port CAT5 KVM over the NET Switch w Virtual Media & Audio & Redundant Power

£2,405.32 GBP
Sale price: £2,405.32 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • Dual User Access
  • High-Resolution Display
In stock, 3 units
EAN: 4719264645310
SKU: 10332823
Vendor: Aten
Order within xx hours for delivery on
Quantity
  • Max CPU: 16
  • Voltage Compatibility: 100–240 VAC, 50/60Hz
  • Input Current: 1A
  • Power Input: IEC-320-C14, Dual Redundant
  • LED Indicators: Port, Power, and Link Status
  • Material: Metal, Color Black
  • Rackmountable: Yes (1U)
  • Dimensions: 1.72 x 17.66 x 10.42 in
  • Weight: 3.52 kg (7.75 lbs)
  • Operating Temp: 32–122°F (0–50°C)
  • Humidity: 0–80% RH, Non-Condensing
  • IP Remote Access: Yes
  • Ports: 16 x RJ45
  • Connections: PS/2, USB, VGA
  • Front Ports: (3) USB A, (2) 3.5mm, (1) USB Mini-B 5-Pin
  • Rear Ports: (19) RJ45
  • Console Interface: PS/2, USB (Keyboard/Mouse), HD15 (Monitor)
  • Max Distance Between Units: 164 ft (50 m)
  • B064-016-01-IPG 16-Port IP
    KVM Switch
  • (2) C13 to NEMA 5-15P
    detachable power cords
  • RJ45 to DB9 adapter (F/M)
  • Grounding wire
  • Foot pads
  • Rack-mounting hardware
  • Quick Start Guide

Datasheet

Overview

To help you manage and control an entire data center, our KVM over IP switches support blade servers and chassis. With powerful new features such as Power Association – KVM ports can be associated with ATEN PDU power outlets for power management of servers from the KVM over IP switches’ user interface. KVM over IP switches now support the new Control Center Video Session Recorder (CCVSR) software. The CCVSR records all operations made on servers accessed through KVM over IP switches. Every operation and change from the BIOS level to logging in, from running software applications to configuring the operating system- is recorded and saved to a secure video file as evidence, without exception.

Technical Features
  • Control Up to 16 Computers: Provides BIOS-level access and control for up to 16 servers from one monitor, USB keyboard, and mouse. Includes dual redundant power supplies for 24/7 reliability and a Laptop USB Console (LUC) port for direct laptop access.
  • Compact Rack Design: 1U rackmount size fits standard 19-inch racks. No software required; firmware can be updated via Ethernet.
  • Wide Compatibility: Supports all major operating systems, VT100 devices, and web browsers including Internet Explorer, Firefox, and Safari.
  • Dual User Access: One local and one remote user can access simultaneously. Supports pushbuttons, GUI, OSD, and hotkey control with LED indicators per port.
  • High-Resolution Display: Up to 1920 x 1200 @ 60Hz with multi-language OSD (English, German, Russian, Japanese, Chinese).
  • Keyboard/Mouse Support: Supports PS/2 and USB interfaces (one active combination at a time).
  • IPv4/IPv6 Support: Manual or DHCP-based IP configuration supported.
  • Advanced Security: Three-level password protection and support for RADIUS, LDAP, LDAPS, and Active Directory. Uses RSA 1024-bit, AES 256-bit, SSL 128-bit encryption and meets FIPS 140-2 Level 1 standards.
  • Virtual Media: Enables remote access to CD/DVD, flash drives, and other media for file transfers, installations, and diagnostics. Includes three front USB ports.
  • Smart Cooling: Temperature sensors automatically adjust fan speed for energy efficiency and longer lifespan.
  • Free Management Software: NetDirector-AXS software included for remote control and configuration.
  • TAA Compliant: Eligible for GSA and other federal procurement contracts.
