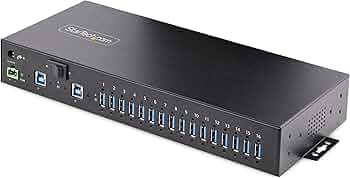

16-Port Industrial USB 5Gbps Hub/Switch

16-Port Industrial USB 5Gbps Hub/Switch

£325.79 GBP
Sale price: £325.79 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • Included 160W Power Adapter
  • Power & Charge
  • Dual-Host Switch
In stock, 4 units
EAN: 65030905381
SKU: 10443616
Vendor: Startech
Order within xx hours for delivery on
Quantity
  • Brand: StarTech
  • Item model number: S5G16AINDS-USB-A-HUB
  • Operating System: OS Independent, No additional drivers or software required
  • Item Weight: 2.42 pounds
  • Product Dimensions: 0.5 x 1.2 x 0.2 inches
  • Item Dimensions LxWxH: 0.5 x 1.2 x 0.2 inches
  • Color: Black
  • Manufacturer: StarTech.com
  • ASIN: B0D6DCTZN3
  • Date First Available: June 6, 2024
  • 16-Port Industrial USB 5Gbps Hub/Switch

Datasheet

Overview

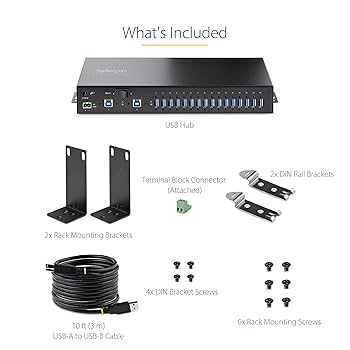

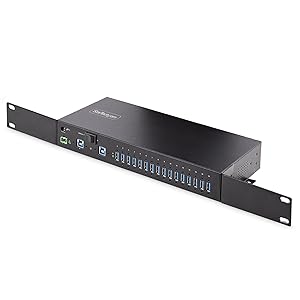

The 16-Port Industrial USB 5Gbps hub with 5Gbps of shared bandwidth features a 2-port host switch, enabling users to switch between two host devices. This USB hub is built for industrial environments. It features a rugged steel housing. It is equipped with Level-4 ESD protection, with 15kV air and 8kV contact discharge ratings. This also enables the hub to be used for daisy chaining to connect multiple Hubs together to support more devices. The 16-Port USB Hub offers three mounting options. The 19" rackmount rails are compliant with EIA-310 standards to install into 1U of rack space. The surface mount is ideal for workstations, desks, or walls. The standard DIN-rail (Top-Hat/TH) mounting hardware is ideal for installation in industrial equipment. This USB Hub features an included 160W power adapter. Power can be inputted using the 2-wire terminal block, and optional redundant power can be connected to a separate barrel power input (12-24V). With a power source connected the hub supports USB Battery Charging Specification 1.2 (BC 1.2), enabling each port to provide up to 1.5A. This USB Hub is OS independent supporting all operating systems, including Windows, macOS, and Linux. A USB Event Monitoring utility is also available for download.

Technical Features
  • Connection Security: Screw-lock-enabled connectors on all ports facilitate reliable connections
  • Power Adapter: Included 160W Power Adapter (powers the hub)
  • Power Input: Built-in DC 2-wire terminal block; DC barrel jack for optional power redundancy
  • Protection: Overcurrent protection protects connected devices from overdrawing power
  • Charging Support: Supports **BC 1.2 charging** when connected to the power adapter
  • Charging Power: 120W is shared across all ports
  • Simultaneous Charging: 16 ports simultaneously charging at max 1.5A/7.5W per port, or up to 8 ports at max 2.0A/10W charging
  • Host Switch: DUAL-HOST SWITCH (2-port host switch to connect to two separate computers and seamlessly switch between primary host devices using the manual rocker switch)
    •
